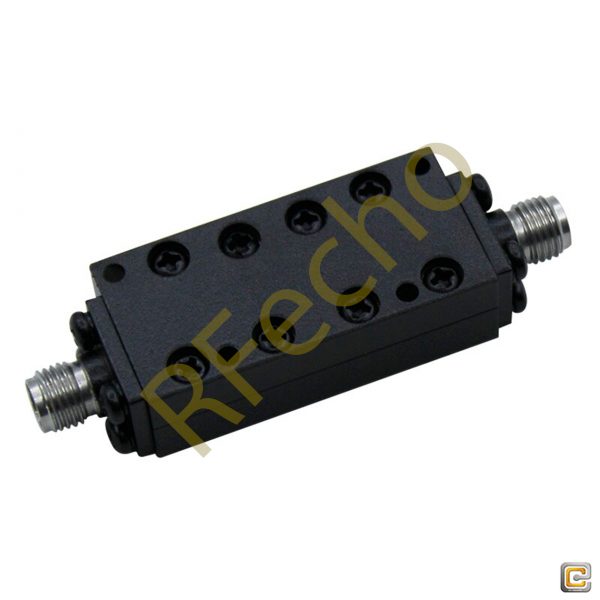

High Pass Cavity Filter model OHP: 2500-20000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Cavity Filter Manufactured with a passband frequency from 2.5GHz to 20GHz and a Cut-off frequency 2.5GHz. Our Microwave RF High Pass Filter provides a nominal insertion loss of ≤1.5dB @ 1.5GHz – 2.6GHz | ≤1.0dB @ 2.6GHz – 20GHz across its passband and a typical rejection of ≥50dB @ DC – 1.98GHz. Since the high end cutoff frequency of High Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave RF High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. High Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.025Kg.
2.5GHz to 20GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2.5GHz to 20GHz High Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-2500-20000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-2500-20000:

  • Cut Off Frequency: 2.5GHz,
  • Pass Band Frequency: 2.5-20GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥50 dB @ DC -1.98 GHz.

Outline

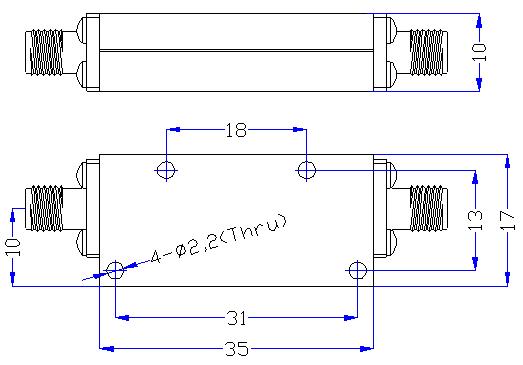

2.5 GHz to 20 GHz Rejection ≥50 dB @ DC -1.98 GHz High Pass Cavity Filter 01

Plot

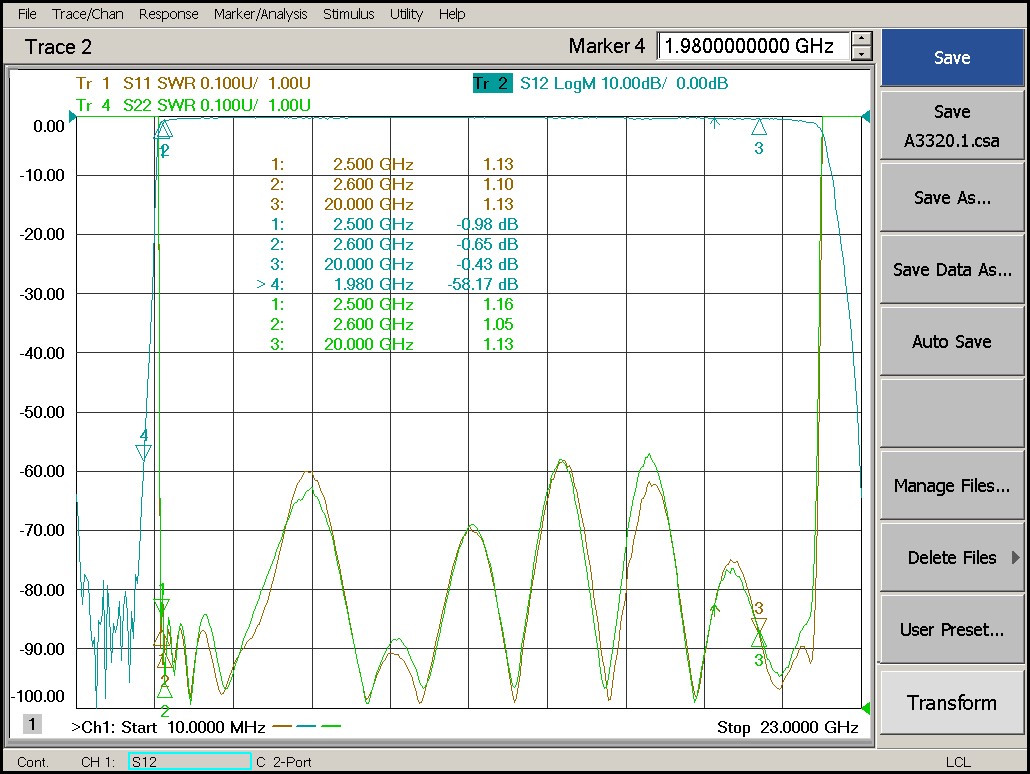

2.5 GHz to 20 GHz Rejection ≥50 dB @ DC -1.98 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.025 kg
Min. Pass Band Frequency (GHz)

2.5

Max. Pass Band Frequency (GHz)

20

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB @ 2.5 ~2.6GHz ≤1.0dB @ 2.6 ~20GHz

VSWR

≤1.5:1

Rejection

≥50 dB @ DC -1.98 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
