2.7–3.5 GHz Four-Channel Beamforming IC – MH037Q
TX linear gain: 23.3 to 24.6 dB
TX saturated output power: 23.4 to 24.7 dBm
RX linear gain: −5.9 to −4.1 dB
RX noise figure: 9.7 to 10.3 dB
Supply voltage: 5 V
7-bit phase control
7-bit attenuation control
- Description
- Datasheet

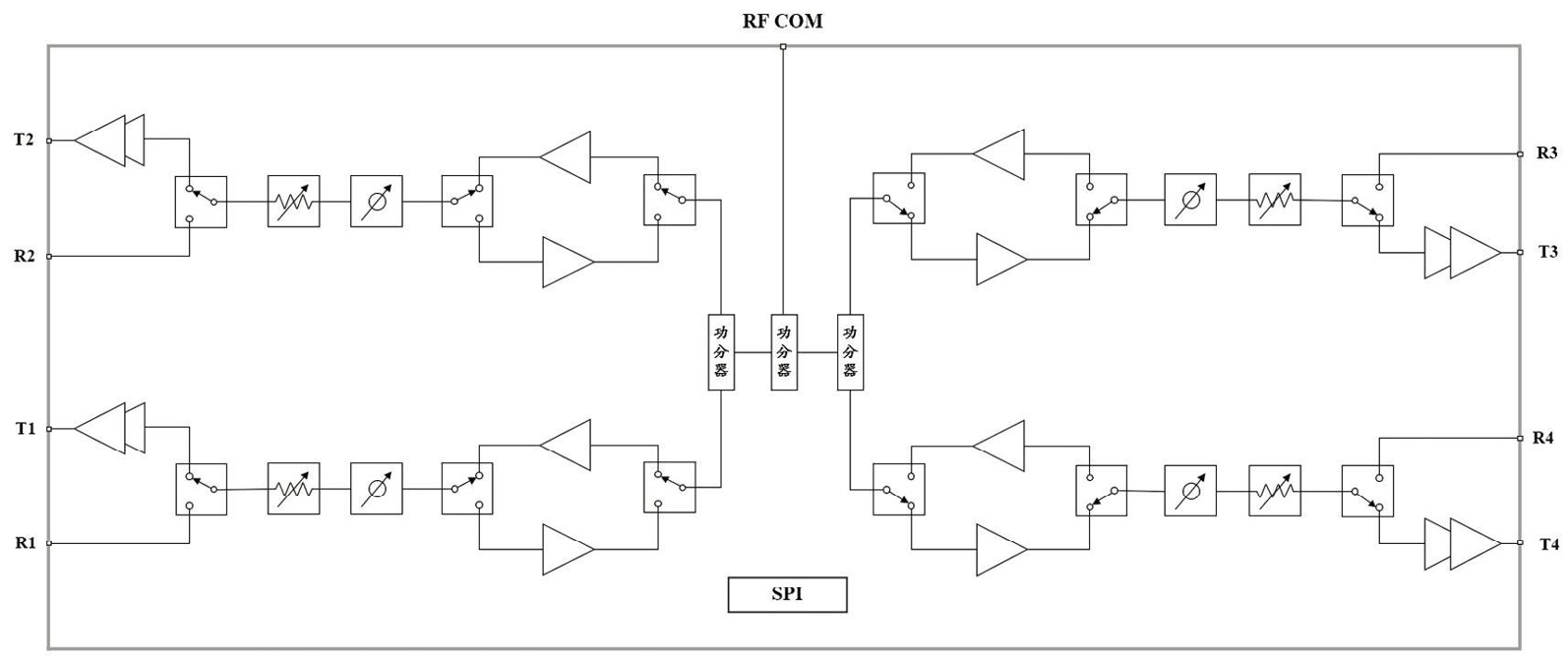

- Functional Block Diagram
Description
The MH037Q is a four-channel beamforming IC operating from 2.7 to 3.5 GHz with a 5 V supply. It integrates low-noise amplifiers, digitally controlled attenuators, digitally controlled phase shifters and beam-control circuitry. Separate transmit and receive ports support simultaneous transmit and receive operation.
Applications: Phased-array radar and communications systems.
Product status: Production.
Four-Channel Beamforming IC Specifications | |
| 2.7–3.5 GHz | |
| MH037Q | |
Index | Value |
| Frequency range | 2.7 to 3.5 GHz |
| TX linear gain | 23.3 to 24.6 dB |
| TX saturated output power | 23.4 to 24.7 dBm |
| RX linear gain | −5.9 to −4.1 dB |
| RX input 1 dB compression point | 7.5 to 9.5 dBm |
| RX noise figure | 9.7 to 10.3 dB |
| In-band gain flatness | −0.8 to +0.8 dB |
| Port VSWR | 2.46 max. |
| RX current per channel | 65 mA typ. |
| TX quiescent current per channel | 225 mA typ. |
| Shutdown current per channel | 37 mA typ. |
| Operating temperature | −55 to +125 °C |
| Supply voltage | 5 V |
| Package / dimensions | QFN, 8 × 8 mm, 68 leads |
Features | |
| 7-bit phase control | |
| 7-bit attenuation control | |
| Separate transmit and receive RF ports | |
Application Scenarios

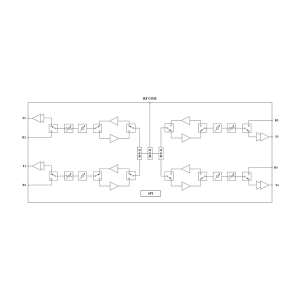

Functional Block Diagram
