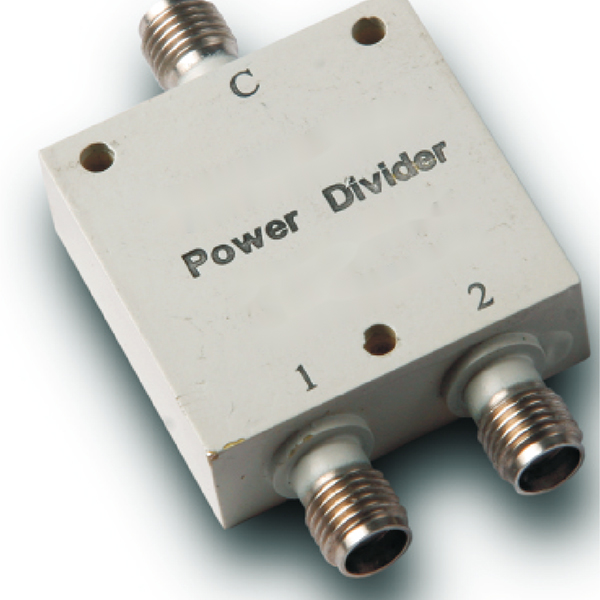

2-8GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider
OPD-A series power dividers are SMA connector 0° power dividers
Full series coverage: 0.5-18GHz
Small size, low loss, low VSWR, high isolation
High consistency with batch production control
Suitable for large volume delivery
Applications: Communications, electronic countermeasures, radar, navigation, testing and measurement sys- tems
Used for 2-way microwave signal distribution and combination
Standardized product with customization available
- Description
- Datasheet

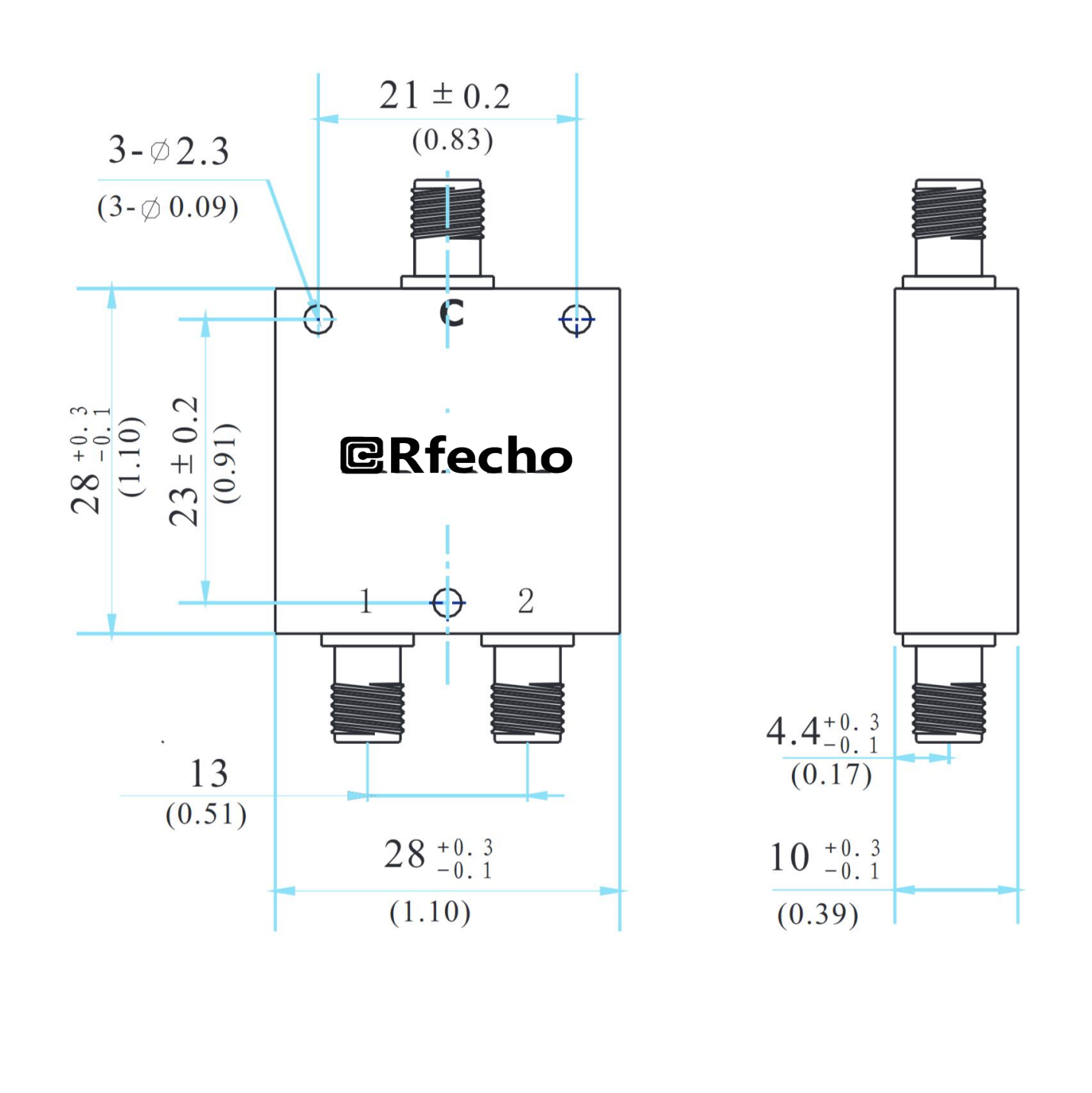

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0°power dividers covering the 0.5-18GHz range. This specificmodel, OPD-A0223, operates in the 2-8GHz band. The series features small size, low insertion loss, low VSWR, andhigh isolation. Manufactured using batch production controlmethods, these dividers offer high product consistency andmeet large volume delivery requirements. They are widelyused in communications, radar, navigation, and test systemsfor signal distribution and combination.
OPD-A0223 |
|
|
2-8GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
0.60dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±4° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Meets ‘GJB-1426-92’ test items and requirements |
Features |
|
|
OPD-A series power dividers are SMA connector 0° power dividers |
|
|
Full series coverage: 0.5-18GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
High consistency with batch production control |
|
|
Suitable for large volume delivery |
|
|
Applications: Communications, electronic countermeasures, radar, navigation, testing and measurement sys- tems |
|
|
Used for 2-way microwave signal distribution and combination |
|
|
Standardized product with customization available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
