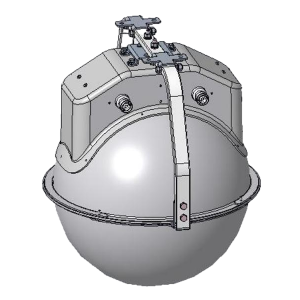

2 Ports Single Beam Lens Antenna— Model: OLLA1LB035A
Operating frequency range: 1710-2690 MHz
2-port single-beam lens configuration
+/-45° Dual polarization
High gain: 17.5+/-1.5 dBi
Excellent sidelobe suppression of 15 dB
Horizontal plane 3dB beamwidth: 22+/-5°
Vertical plane 3dB beamwidth: 23+/-4°
Mechanical downtilt range: 0-20°
ASA radome with UV protection
DC Ground lightning protection
RoHS 2011/65/EU compliant
- Description
- Datasheet
- Reviews (0)
Description

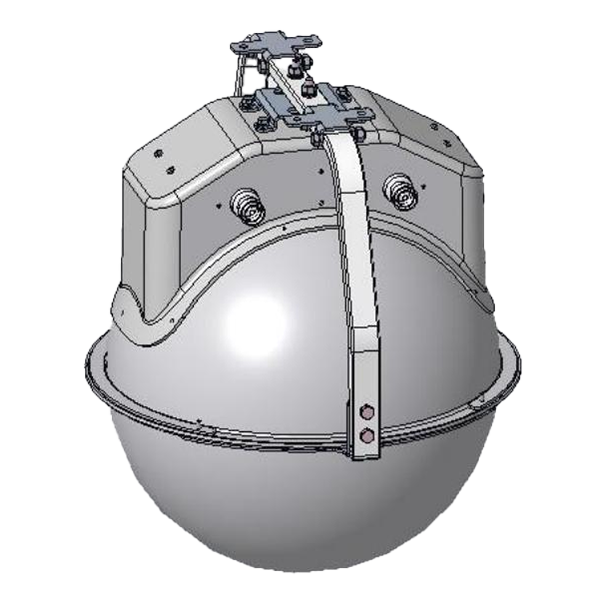

The OLLA1LB035A isa high-performance 2-port single-beam lens antenna designed for the 1710-2690 MHz frequency band. It featuresa unique spherical design witha UV-protected ASA radome, deliveringa high gain of 17.5+/-1.5 dBi and +/-45° polarization. This antenna is engineered for precision witha 22-degree horizontal beamwidth and supports mechanical downtilt from 0 to 20 degrees, making it an ideal choice for focused directional coverage in various outdoor wireless communication scenarios. It is built to withstand extreme environmental conditions witha maximum wind speed rating of 241 km/h and an operating temperature range of -40 to +70°C.
OLLA1LB035A |
|
|
2 Ports Single Beam Lens Antenna— Model: OLLA1LB035A |
|
Property |
Value |
|
Radome Material |
ASA, UV protection |
|
Operating Humidity |
5%~95% |
|
Product Nam |
2 Ports Single Beam Lens Antenna |
|
Model |
OLLA1LB035A |
|
Frequency (MHz) |
1710-2690 |
|
VSWR |
<=1.5 |
|
Polarization |
+/-45 |
|
Sidelobe Suppression |
13 |
|
Number of Port |
2 |
|
Beam Quantity |
1 |
|
Gain(dBi) |
17.5+/-1.5 |
|
Horizontal Beam Pointing (°) |
0 |
|
Horizontal Plane 3dB Beamwidth (°) |
22+/-5 |
|
Horizontal Plane 10dB Beamwidth (°) |
39+/-10 |
|
Vertical Plane 3dB Beamwidth (°) |
23+/-4 |
|
Vertical Plane 10dB Beamwidth (°) |
39+/-10 |
|
Sidelobe Suppression (dB) |
15 |
|
Front to Back Ratio (dB) |
25 |
|
Isolation Between Polarization (dB) |
>=25 |
|
Electrical Downtilt Range (o) |
Fixed at 0o |
|
Intermodulation IM3 dBc(2×43dBm) |
<=-150 |
|
Power Rating (W) |
180W per Port |
|
Input Impedance ( Ohm) |
50 |
|
Lighting Protection |
DC Ground |
|
Mechanical Down-Tilt (°) |
0-20 |
|
Antenna Dimension (mm) |
474×448×448 |
|
Packaging Dimension (mm) |
590×535×615 |
|
Net Weight (Kg) |
5.25 |
|
Gross Weight (Kg) |
11 |
|
Connector |
2*4.3-10-Femal |
|
Mounting Diameter (mm) |
50-114 |
|
Wind Speed, Maximum |
241Km/h |
|
Wind Loading @ Velocity in Frontal/Side/Rear |
154.1N/135.7N/114.1N @ 150-160Km/h |
|
Operating Temperature( degC) |
-40~+70 |
|
Antenna Safety |
RoHS 2011/65/EU |
Features |
|
|
Operating frequency range: 1710-2690 MHz |
|
|
2-port single-beam lens configuration |
|
|
+/-45° Dual polarization |
|
|
High gain: 17.5+/-1.5 dBi |
|
|
Excellent sidelobe suppression of 15 dB |
|
|
Horizontal plane 3dB beamwidth: 22+/-5° |
|
|
Vertical plane 3dB beamwidth: 23+/-4° |
|
|
Mechanical downtilt range: 0-20° |
|
|
ASA radome with UV protection |
|
|
DC Ground lightning protection |
|
|
RoHS 2011/65/EU compliant |
|
Applications |
|
|
It is built to withstand extreme environmental conditions witha maximum wind speed rating of 241 km/h and an operating temperature range of -40 to +70°C. |
|
