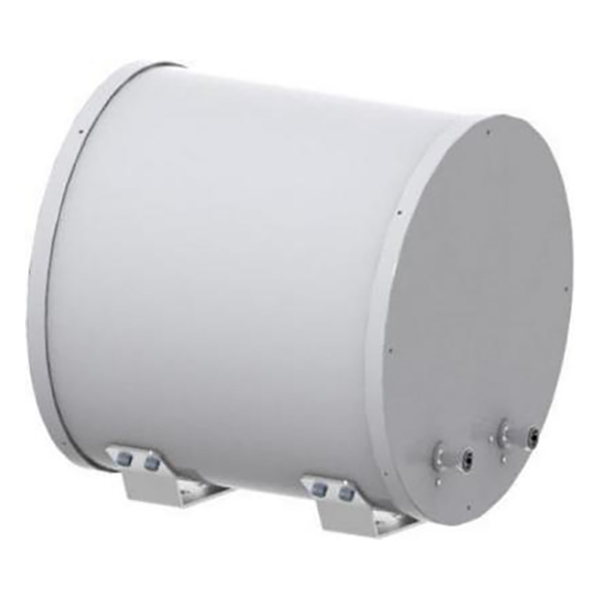

2 Ports Single Beam Lens Antenna— OLLA3AZA12A
Frequency range: 1710-2690 MHz
Single beam configuration with 2 ports
+/-45° Polarization
Gain up to 16.5 dBi
DC ground lightning protection
Mechanical down-tilt range: 0-20°
UV-protected ASA radome material
RoHS 2011/65/EU compliant
- Description
- Datasheet
- Reviews (0)
Description
The OLLA3AZA12A isa high-performance 2-port single beam lens antenna designed for operation in the 1710-2690 MHz frequency bands. It features dual polarization (+/-45°) and providesa gain of 15.5+/-1 dBi in the lower band and 16.5+/-1 dBi in the upper band. The antenna is constructed witha UV-protected ASA radome and is designed to withstand harsh environmental conditions, including wind speeds up to 241 km/h. It supportsa mechanical downtilt range from 0 to 20 degrees and includes DC ground lightning protection.
OLLA3AZA12A | |
| 2 Ports Single Beam Lens Antenna— OLLA3AZA12A | |
Property | Value |
| Radome Material | ASA, UV protection |
| Operating Humidity | 5%~95% |
| Model | OLLA3AZA12A |
| Frequency (MHz) | 1710-2200/2200-2690 |
| VSWR | <=1.5 |
| Polarization | +/-45 |
| Number of Port | 2 |
| Beam Quantity | 1 |
| Gain(dBi) | 15.5+/-1/16.5+/-1 |
| Horizontal Plane 3dB Beamwidth (°) | 28+/-4/23+/-3 |
| Horizontal Plane 10dB Beamwidth (°) | 47+/-5/39+/-4 |
| Vertical Plane 3dB Beamwidth (°) | 26+/-4/23+/-3 |
| Vertical Plane 10dB Beamwidth (°) | 46+/-5/39+/-4 |
| Sidelobe Suppression (dB) | 13 |
| Front to Back Ratio (dB) | 25 |
| Isolation Between Polarization (dB) | >=25 |
| Electrical Downtilt Range (o) | Fixed at 0o |
| Intermodulation IM3 dBc(2×43dBm) | <=-150 |
| Power Rating (W) | 200W per Port |
| Input Impedance ( Ohm) | 50 |
| Lighting Protection | DC Ground |
| Mechanical Down-Tilt (°) | 0-20 |
| Antenna Dimension (mm) | 394×400×400 |
| Packaging Dimension (mm) | 620×515×515 |
| Net Weight (Kg) | 6.5 |
| Gross Weight (Kg) | 12.4 |
| Connector | 2*4.3-10(Female) |
| Mounting Diameter (mm) | 50-114 |
| Wind Speed, Maximum | 241Km/h |
| Wind Loading @ Velocity in Frontal/Side/Rear | 152.7N/152.7N/127.5N @ 150-160Km/h |
| Antenna Safety | RoHS 2011/65/EU |
| Operating Temperature ( degC) | -40~+70 |
Features | |
| Frequency range: 1710-2690 MHz | |
| Single beam configuration with 2 ports | |
| +/-45° Polarization | |
| Gain up to 16.5 dBi | |
| DC ground lightning protection | |
| Mechanical down-tilt range: 0-20° | |
| UV-protected ASA radome material | |
| RoHS 2011/65/EU compliant | |
Applications | |
| It supportsa mechanical downtilt range from 0 to 20 degrees and includes DC ground lightning protection. | |
