6 Ports Single Beam Lens Antenna—OLLA3AZA16A
6 Ports for multi-channel operation
Single Beam Lens technology
Frequency range: 1710-2690 MHz
+/-45° Dual Polarization
15-17 dBi High Gain
Fixed 0° Electrical Downtilt
DC Ground lightning protection
ASA radome with UV protection
High wind speed resistance up to 241 Km/h
- Description
- Datasheet
- Reviews (0)
Description

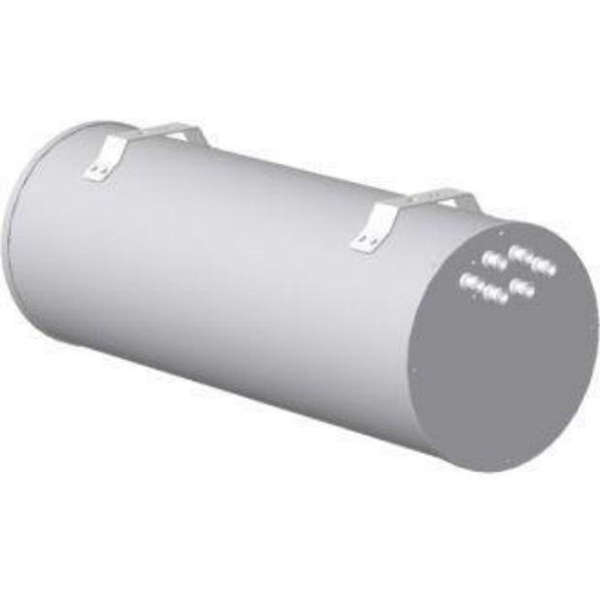

The OLLA3AZA16A isa high-performance 6-port single-beam lens antenna operating across the 1710-2690 MHz frequency band. It is specifically designed to provide high gain (up to 17 dBi) and dual-polarization (+/-45°) withina single beam architecture. The antenna featuresa fixed 0° electrical downtilt and is constructed witha durable ASA radome that includes UV protection, making it ideal for robust outdoor deployments. It offers excellent isolation and sidelobe suppression characteristics, ensuring reliable performance in complex wireless environments.
OLLA3AZA16A |
|
|
6 Ports Single Beam Lens Antenna—OLLA3AZA16A |
|
Property |
Value |
|
Radome Material |
ASA, UV protection |
|
Operating Humidity |
5%~95% |
|
Frequency (MHz) |
1710-2200/2200-2690 |
|
VSWR |
<=1.5 |
|
Polarization |
+/-45 |
|
Number of Port |
6 |
|
Beam Quantity |
1 |
|
Gain(dBi) |
15+/-1/17+/-1 |
|
Horizontal Plane 3dB Beamwidth (°) |
28+/-4/23+/-3 |
|
Horizontal Plane 10dB Beamwidth (°) |
47+/-5/39+/-4 |
|
Vertical Plane 3dB Beamwidth (°) |
26+/-4/23+/-3 |
|
Vertical Plane 10dB Beamwidth (°) |
46+/-5/39+/-4 |
|
Sidelobe Suppression (dB) |
13 |
|
Front to Back Ratio (dB) |
25 |
|
Isolation Between Polarization (dB) |
>=25 |
|
Electrical Downtilt Range (o) |
Fixed at 0o |
|
Intermodulation IM3 dBc(2×43dBm) |
<=-150 |
|
Power Rating (W) |
180W per Port |
|
Input Impedance ( Ohm) |
50 |
|
Lighting Protection |
DC Ground |
|
Mechanical Down-Tilt (°) |
0-20 |
|
Antenna Dimension (mm) |
1154×400×400 |
|
Packaging Dimension (mm) |
1420×515×515 |
|
Net Weight (Kg) |
14.8 |
|
Gross Weight (Kg) |
27 |
|
Connector |
6*4.3-10(Female) |
|
Mounting Diameter (mm) |
50-110 |
|
Wind Speed, Maximum |
241Km/h |
|
Wind Loading @ Velocity in Frontal/Side/Rear |
447.3N/447.3N/346.3N @ 150-160Km/h |
|
Operating Temperature( degC) |
-40~+70 |
|
Antenna Safety |
RoHS 2011/65/EU |
|
Isolation Between Beam Port (dB) |
>=23 |
Features |
|
|
6 Ports for multi-channel operation |
|
|
Single Beam Lens technology |
|
|
Frequency range: 1710-2690 MHz |
|
|
+/-45° Dual Polarization |
|
|
15-17 dBi High Gain |
|
|
Fixed 0° Electrical Downtilt |
|
|
DC Ground lightning protection |
|
|
ASA radome with UV protection |
|
|
High wind speed resistance up to 241 Km/h |
|
Applications |
|
|
It offers excellent isolation and sidelobe suppression characteristics, ensuring reliable performance in complex wireless environments. |
|
