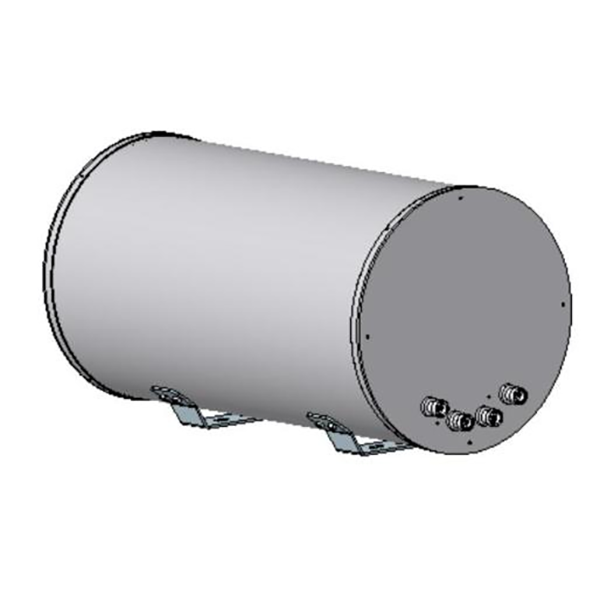

4 Ports Single Beam Lens Antenna—OLLA3AZA141
4 Ports Single Beam configuration
Broadband frequency range: 1710-2690 MHz
+/-45 Polarization
Gain: 15+/-1 dBi (1710-2200 MHz) / 17+/-1 dBi (2200-2690 MHz)
Fixed Electrical Downtilt at 0°
Mechanical Downtilt Range: 0-20°
DC Ground Lighting Protection
ASA Radome with UV protection
RoHS 2011/65/EU Compliant
- Description
- Datasheet
- Reviews (0)
Description
The OLLA3AZA141 isa 4-port single beam lens antenna designed for high-performance telecommunication applications in the 1710-2690 MHz frequency range. It provides dual +/-45 polarization and deliversa gain of up to 17 dBi. The antenna featuresa fixed electrical downtilt at 0° and is housed ina robust ASA radome with UV protection, capable of withstanding wind speeds up to 241 km/h. Its mechanical design supportsa downtilt range of 0-20° and includes DC ground lighting protection, ensuring reliability in outdoor environments.
OLLA3AZA141 |
|
|
4 Ports Single Beam Lens Antenna—OLLA3AZA141 |
|
Property |
Value |
|
Radome Material |
ASA, UV protection |
|
Operating Humidity |
5%~95% |
|
Frequency (MHz) |
1710-2200/2200-2690 |
|
VSWR |
<=1.5 |
|
Polarization |
+/-45 |
|
Number of Port |
4 |
|
Beam Quantity |
1 |
|
Gain(dBi) |
15+/-1/17+/-1 |
|
Horizontal Beam Pointing (°) |
+/-29 |
|
Horizontal Plane 3dB Beamwidth (°) |
28+/-4/23+/-3 |
|
Horizontal Plane 10dB Beamwidth (°) |
47+/-5/39+/-4 |
|
Vertical Plane 3dB Beamwidth (°) |
26+/-4/23+/-3 |
|
Vertical Plane 10dB Beamwidth (°) |
46+/-5/39+/-4 |
|
Sidelobe Suppression (dB) |
15 |
|
Front to Back Ratio (dB) |
25 |
|
Isolation Between Polarization (dB) |
>=25 |
|
Electrical Downtilt Range (o) |
Fixed at 0o |
|
Intermodulation IM3 dBc(2×43dBm) |
<=-150 |
|
Power Rating (W) |
180W per Port |
|
Input Impedance ( Ohm) |
50 |
|
Lighting Protection |
DC Ground |
|
Mechanical Down-Tilt (°) |
0-20 |
|
Antenna Dimension (mm) |
744×400×400 |
|
Packaging Dimension (mm) |
970×515×515 |
|
Net Weight (Kg) |
10.6 |
|
Gross Weight (Kg) |
17 |
|
Connector |
4*4.3-10(Female) |
|
Mounting Diameter (mm) |
50-110 |
|
Wind Speed, Maximum |
241Km/h |
|
Wind Loading @ Velocity in Frontal/Side/Rear |
298.4N/298.4N/231.4N @ 150-160Km/h |
|
Operating Temperature( degC) |
-40~+70 |
|
Antenna Safety |
RoHS 2011/65/EU |
|
Beam Cross-over (dB) |
10 typical |
|
Isolation Between Beam Port (dB) |
>=23 |
Features |
|
|
4 Ports Single Beam configuration |
|
|
Broadband frequency range: 1710-2690 MHz |
|
|
+/-45 Polarization |
|
|
Gain: 15+/-1 dBi (1710-2200 MHz) / 17+/-1 dBi (2200-2690 MHz) |
|
|
Fixed Electrical Downtilt at 0° |
|
|
Mechanical Downtilt Range: 0-20° |
|
|
DC Ground Lighting Protection |
|
|
ASA Radome with UV protection |
|
|
RoHS 2011/65/EU Compliant |
|
Applications |
|
|
Its mechanical design supportsa downtilt range of 0-20° and includes DC ground lighting protection, ensuring reliability in outdoor environments. |
|
