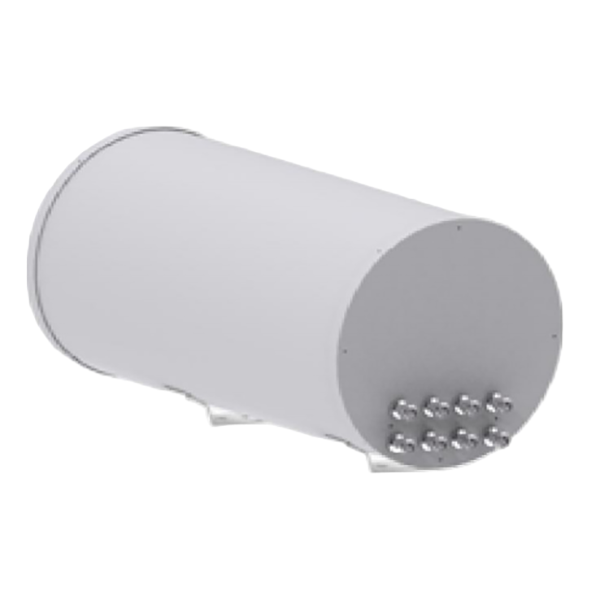

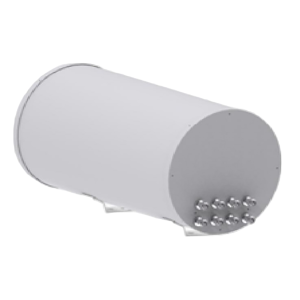

8 Ports Dual Beam 4T4R Lens Antenna— OLLA3AZA282

OLLA3AZA282

8 Ports Dual Beam 4T4R Lens Antenna— OLLA3AZA282

Property

Value

Radome Material

ASA, UV Protection

Operating Humidity

5%~95%

Frequency (MHz)

1710-2200 / 2200-2690

Gain (dBi)

15+/-1 / 17+/-1

VSWR

<=1.5

Polarization

+/-45°

Number of Port

8

Beam Quantity

2

Horizontal Beam Pointing (°)

+/-29

Horizontal Plane 3dB Beamwidth (°)

28+/-4 / 23+/-3

Horizontal Plane 10dB Beamwidth (°)

47+/-5 / 39+/-4

Vertical Plane 3dB Beamwidth (°)

26+/-4 / 23+/-3

Vertical Plane 10dB Beamwidth (°)

46+/-5 / 39+/-4

Sidelobe Suppression (dB)

13

Front to Back Ratio (dB)

25

Isolation Between Polarization (dB)

>=25

Electrical Downtilt Range (o)

Fixed at 0o

Power Rating (W)

180W per Port

Input Impedance ( Ohm)

50

Lighting Protection

DC Ground

Mechanical Down-Tilt (°)

0-20

Antenna Dimension (mm)

740×400×400

Packaging Dimension (mm)

965×515×515

Net Weight (Kg)

11

Gross Weight (Kg)

17.6

Connector

8*4.3-10(Female)

Mounting Diameter (mm)

50-114

Wind Speed, Maximum

241Km/h

Antenna Safety

RoHS 2011/65/EU

Operating Temperature ( degC)

-40~+70

Isolation Between Beam Port (dB)

>=23

Number of Port per Beam

4

Intermodulation IM3 (2×43dBm)

<=-150 dBc

Wind Loading @ Velocity (Frontal/Side/Rear)

286.8N/286.8N/216.5N @ 150-160Km/h

Features

8 Ports Dual Beam 4T4R Lens Antenna

Frequency range: 1710-2690 MHz

High gain of 15+/-1/17+/-1 dBi

Dual-beam configuration with +/-29° horizontal pointing

+/-45° Polarization

Fixed 0° Electrical Downtilt

0-20° Mechanical Downtilt Range

8 x 4.3-10 Female connectors

UV Protected ASA radome

Operating temperature: -40°C to +70°C

RoHS 2011/65/EU compliant

Applications

Built for durability in outdoor environments, it is encased ina UV-protected ASA radome and is rated for extreme wind speeds and temperatures.
