22–30 GHz Dual-Band Transceiver Front-End IC – MH212
RX gain: 20 dB typ.
RX noise figure: 8 dB typ.
IF frequency range: 0.04 to 2000 MHz
TX frequency range: 22 to 30 GHz
Supply voltage: 1.1 V, 2.5 V
Integrated VCO, frequency multiplier, amplifiers and mixers
Wideband frequency modulation
- Description
- Datasheet
- Functional Block Diagram
Description
The MH212 is a transceiver front-end IC operating over 22–30 GHz. Integrated VCO, frequency multiplier, amplifiers and mixers. Wideband frequency modulation.
Applications: Short- and medium-range radar sensing.
Product status: Engineering sample.
Dual-Band Transceiver Front-End IC Specifications | |
| 22–30 GHz | |
| MH212 | |
Index | Value |
| RX frequency range | 22 to 30 GHz |
| RX input impedance | 50 Ω typ.; Single-ended |
| RX gain | 20 dB typ.; 50 Ω single-ended IF load |
| RX noise figure | 8 dB typ.; 50 Ω single-ended IF load |
| RX input 1 dB compression point | −20 dBm typ.; 50 Ω single-ended IF load |
| IF frequency range | 0.04 to 2000 MHz |
| IF output impedance | 100 Ω typ.; Differential |
| TX frequency range | 22 to 30 GHz |
| TX output power | 15 dBm typ. |
| TX2 frequency range | 11 to 15 GHz |
| RX in-band gain flatness | −1.5 to +1.5 dB |
| TX phase noise | −30 dBc/Hz typ.; 25 GHz, 1 kHz offset |
| TX phase noise | −40 dBc/Hz typ.; 25 GHz, 10 kHz offset |
| VCO tuning voltage | 0 to 2.5 V |
| Operating current at 1.1 V | 400 mA typ. |
| Operating temperature | −55 to +85 °C |
| Supply voltage | 1.1 V, 2.5 V |
| Package / dimensions | Die, 1.7 × 2.0 mm |
Features | |
| Integrated VCO, frequency multiplier, amplifiers and mixers | |
| Wideband frequency modulation | |
| Single-ended 50 Ω RF ports | |
| Differential IF output; single-ended operation supported | |
| Dual-band transmit outputs | |
Application Scenarios

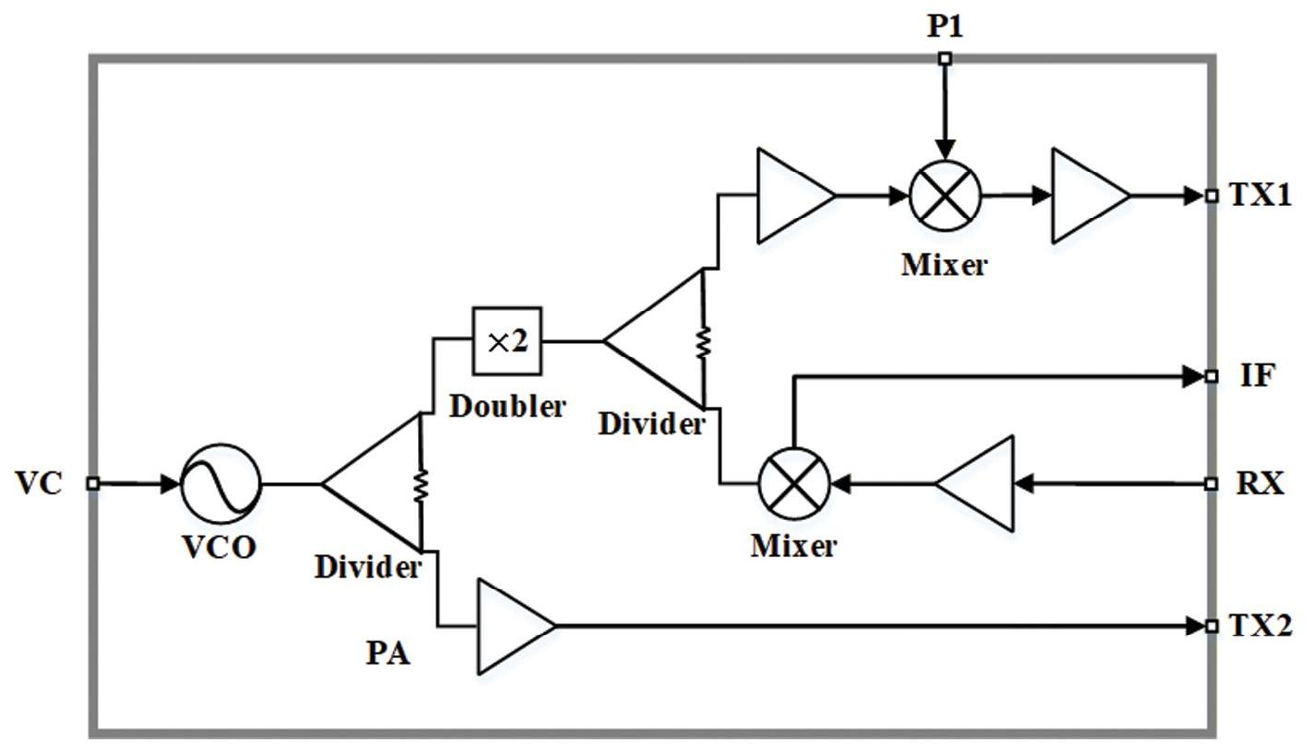

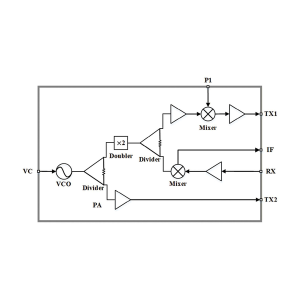

Functional Block Diagram
