34–37 GHz Transceiver Front-End IC – MH3052W
RX gain: 9 dB typ.
RX noise figure: 8.5 dB typ.
IF frequency range: 0.1 to 100 MHz
TX frequency range: 34 to 37 GHz
Supply voltage: 1.1 V, 2.5 V
Integrated LNA, PA, mixer and transimpedance amplifier
Integrated FMCW signal source
- Description
- Datasheet
- Functional Block Diagram
Description
The MH3052W is a transceiver front-end IC operating over 34–37 GHz. Integrated LNA, PA, mixer and transimpedance amplifier. Integrated FMCW signal source.
Applications: Short- and medium-range radar sensing.
Product status: Production.
Transceiver Front-End IC Specifications | |
| 34–37 GHz | |
| MH3052W | |
Index | Value |
| RX frequency range | 34 to 37 GHz |
| RX input impedance | 50 Ω typ.; Single-ended |
| RX gain | 9 dB typ.; 50 Ω single-ended IF load |
| RX noise figure | 8.5 dB typ.; 50 Ω single-ended IF load |
| RX input 1 dB compression point | −15 dBm typ.; 50 Ω single-ended IF load |
| IF frequency range | 0.1 to 100 MHz |
| IF output impedance | 100 Ω typ.; Differential |
| TX frequency range | 34 to 37 GHz |
| TX output power | 13 dBm typ. |
| TX phase noise | −92 dBc/Hz typ.; 35 GHz, 1 MHz offset |
| Open-loop VCO tuning voltage | 0.1 to 1.8 V |
| TX-to-RX isolation | 35 dB typ. |
| Frequency sweep rate | 165 MHz/μs max. |
| Frequency sweep nonlinearity | 0.13 % max. |
| Operating current at 1.1 V | 240 mA typ. |
| Operating current at 2.5 V | 40 mA typ. |
| Supply voltage | 1.1 V, 2.5 V |
| Package / dimensions | BGA, 6.2 × 4.4 mm, 0.5 mm pitch |
Features | |
| Integrated LNA, PA, mixer and transimpedance amplifier | |
| Integrated FMCW signal source | |
| Open-loop and closed-loop operating modes | |
| Wideband frequency modulation | |
Application Scenarios

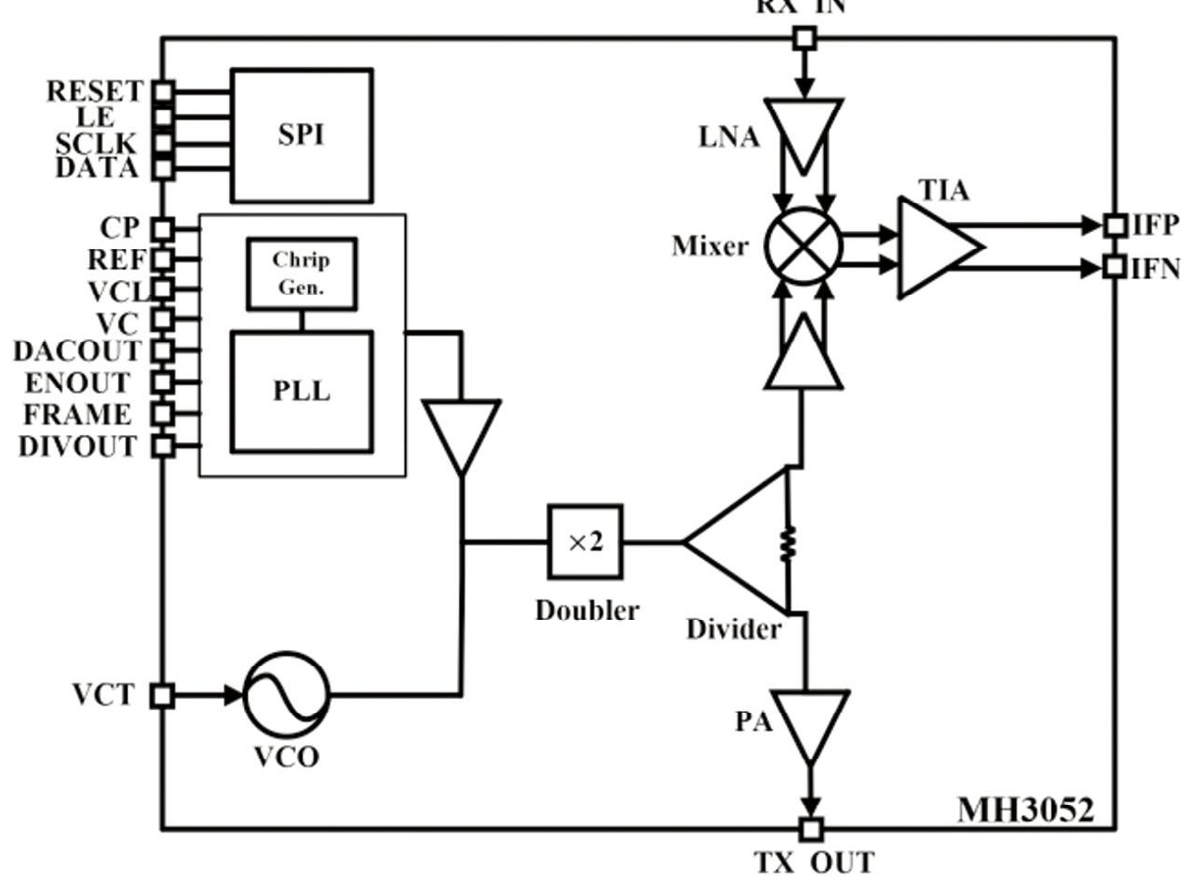

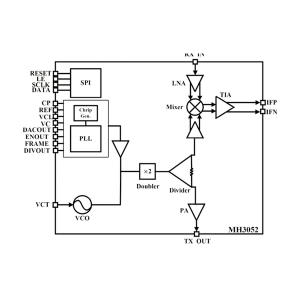

Functional Block Diagram
