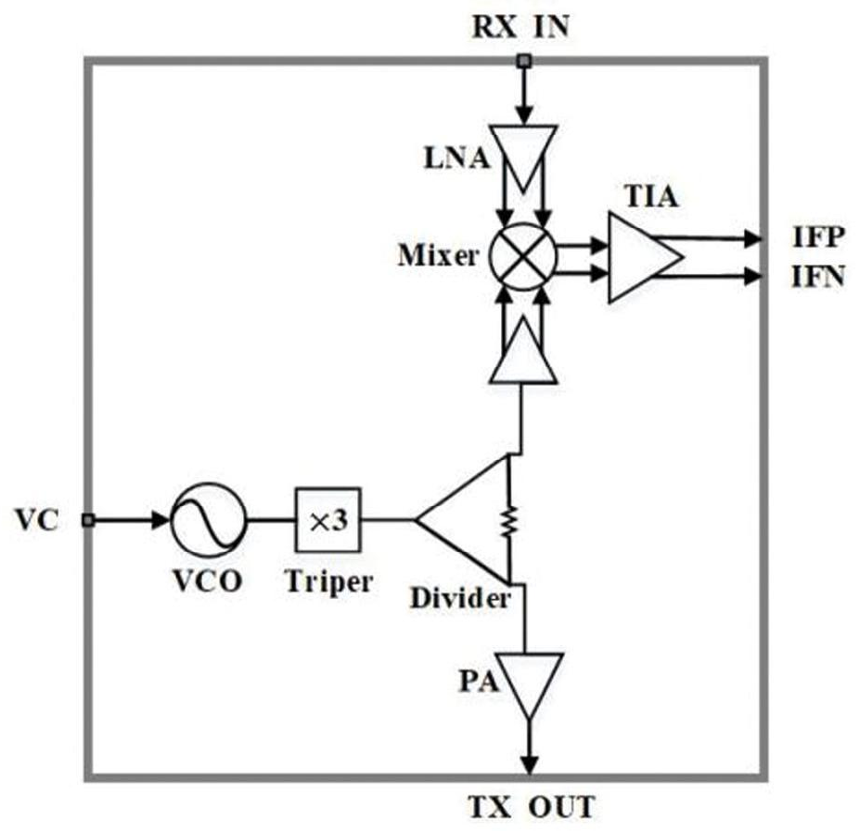

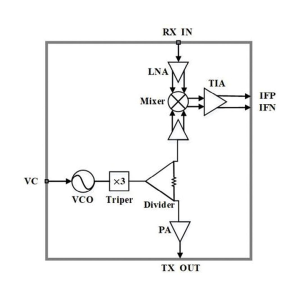

58–62 GHz Transceiver Front-End IC – MH610W

Transceiver Front-End IC Specifications

58–62 GHz

MH610W

Index

Value

RX frequency range

58 / 60 / 62 GHz (min. / typ. / max.)

RX input impedance

50 Ω typ.; Single-ended

RX gain

12 dB typ.; 50 Ω single-ended IF load

RX noise figure

8.5 dB typ.; 50 Ω single-ended IF load

RX input 1 dB compression point

−15 dBm typ.; 50 Ω single-ended IF load

IF frequency range

0.1 to 100 MHz

IF output impedance

100 Ω typ.; Differential

TX frequency range

58 / 60 / 62 GHz (min. / typ. / max.)

TX output power

15 dBm typ.

RX in-band gain flatness

−0.8 to +0.8 dB

TX in-band power flatness

−0.5 to +0.5 dB

TX phase noise

−95 dBc/Hz typ.; 60 GHz, 1 MHz offset

VCO tuning voltage

0.1 to 1.8 V

Supply voltage

1.05 / 1.1 / 1.15 V (min. / typ. / max.)

Operating current

330 mA typ.; 25 °C, continuous wave, internal frequency source

Operating temperature

−55 to +85 °C

Supply voltage

1.1 V

Package / dimensions

Die, 1.73 × 1.62 mm; BGA, 3.05 × 3.55 mm, 0.4 mm pitch

Features

Integrated VCO, frequency multiplier, amplifiers and mixers

Wideband frequency modulation

Single-ended 50 Ω RF ports

Differential IF output; single-ended operation supported
