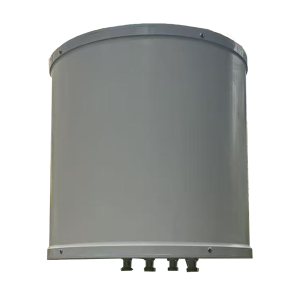

280 x 280mm Cylindrical Lens
Wide frequency range: 1710-6000MHz
High gain: 13.5-24 dBi
Multi-beam support (3 or 4 beams)
+/-45° Polarization
Low VSWR: = 25 dB
Low Intermodulation: <= -107dBm (20W)
Operating temperature: -40°C to +70°C
Lightweight EPS Radom
- Description
- Datasheet
- Reviews (0)
Description
This isa cylindrical lens antenna designed fora wide frequency range of 1700-6000MHz. It offers high gain performance between 13.5 and 24 dBi and supports multi-beam operations (3 to 4 beams). Featuring +/-45° polarization and low intermodulation (<=-107dBm at 20W), it is suitable for advanced wireless communication systems requiring precision and stability. The antenna is encased in an EPS radome and operates reliably in temperatures ranging from -40°C to +70°C.
OLLA20080B0201 |
|
|
280 x 280mm Cylindrical Lens |
|
Property |
Value |
|
Lens Dimensions |
280 *h280mm |
|
Packaging Dimensions |
630x630x630 (8-sphere integrated simplified packaging) |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40°C~+70°C |
|
Product Nam |
OLLA20080B0201/1700-6000MHz/13.5-24dBi/Cylindrical Lens |
|
Horizontal Beam Pointing |
0°, 0° |
|
Polarization |
+/-45° |
|
Product Model |
Diameter 280mm * H280mm (PIM < -107dBm/20W) |
|
Operating Frequency (MHz) |
1710-1880, 1880-2025, 2025-2515, 2515-2690, 3400-3800, 4800-5000, 5700-5900 |
|
Typical Gain (dBi) |
13.5, 14.5, 15.2, 16, /, /, / |
|
Number of Beams |
3 (for 1710-2690 MHz), 4 (for higher bands) |
|
Voltage Standing Wave Ratio (VSWR) |
<=1.5 |
|
Polarization Port Isolation |
>=25 dB |
|
Third-Order Intermodulation (IM3) |
<=-107dBm(20W) |
|
Gross Weight (including packaging) |
< 0.7 kg (8-piece pack) |
Features |
|
|
Wide frequency range: 1710-6000MHz |
|
|
High gain: 13.5-24 dBi |
|
|
Multi-beam support (3 or 4 beams) |
|
|
+/-45° Polarization |
|
|
Low VSWR: = 25 dB |
|
|
Low Intermodulation: <= -107dBm (20W) |
|
|
Operating temperature: -40°C to +70°C |
|
|
Lightweight EPS Radom |
|
Applications |
|
|
Designed to operate reliably acrossa wide temperature range of -40°C to +70°C |
|
