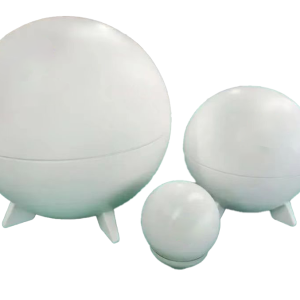

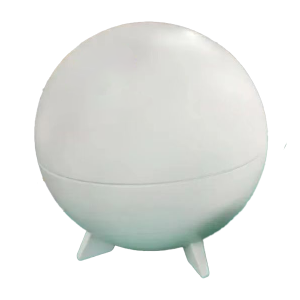

280mm Circular Lens
Wide frequency coverage from 1710 to 5900 MHz
Triple-beam (3 beams) capability
Typical gain ranging from 13.5 to 16.0 dBi
Dual-polarization (+/-45°) design
Excellent isolation (>=25 dB) and low VSWR (<=1.5)
Lightweight and compact 280mm circular lens design
Broad operating temperature range: -40°C to +70°C
- Description
- Datasheet
- Reviews (0)
Description
The OLLA20280B0201 isa 280mm circular lens antenna designed for high-performance wireless communication in the 1700-6000MHz frequency range. It featuresa triple-beam configuration with typical gains of up to 16 dBi in the LTE bands. The antenna supports dual-polarization (+/- 45°) with excellent isolation and low VSWR. Constructed with lightweight EPS radome material, it is engineered for durability in various environmental conditions, operating between -40°C and +70°C.
OLLA20280B0201 |
|
|
280mm Circular Lens |
|
Property |
Value |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40°C~+70°C |
|
Operating Humidity |
30%~90% |
|
Product Nam |
OLLA20280B0201/1700-6000MHz/13.5-24dBi/Circular Lens |
|
Model |
280 (PIM < -107dBm/20W) |
|
Gain (dBi) |
13.5, 14.5, 15.2, 16, /, /, / |
|
Number of Beam |
3 |
|
Horizontal Beam Pointing |
0° |
|
VSWR |
<=1.5 |
|
Polarization |
+/-45° |
|
Isolation Between Polarization |
>=25 dB |
|
Intermodulation IM3 |
<=-107dBm (20W) |
|
Antenna Dimension |
280 mm |
|
Packaging Dimension |
630x630x630 (8-piece integrated simple packaging) |
|
Net Weight |
<0.6Kg |
|
Gross Weight |
< 5 kg (8-ball packaging) |
|
Work Frequency (MHz) |
1710-1880, 1880-2025, 2025-2515, 2515-2690, 3400-3800, 4800-5000, 5700-5900 |
Features |
|
|
Wide frequency coverage from 1710 to 5900 MHz |
|
|
Triple-beam (3 beams) capability |
|
|
Typical gain ranging from 13.5 to 16.0 dBi |
|
|
Dual-polarization (+/-45°) design |
|
|
Excellent isolation (>=25 dB) and low VSWR (<=1.5) |
|
|
Lightweight and compact 280mm circular lens design |
|
|
Broad operating temperature range: -40°C to +70°C |
|
Applications |
|
|
It is engineered for durability in various environmental conditions, operating between -40°C and +70°C. |
|
