Mid-frequency 4+4 planar lens
Wide frequency range: 1710-2170MHz
High average gain of >= 18.5 dBi when paired with antenna
Low VSWR of = 25 dB
Low intermodulation IM3 <= -107 dBm
Horizontal 3dB beamwidth of 53.7°
Lightweight and compact design (<= 100g)
- Description
- Datasheet
- Reviews (0)
Description

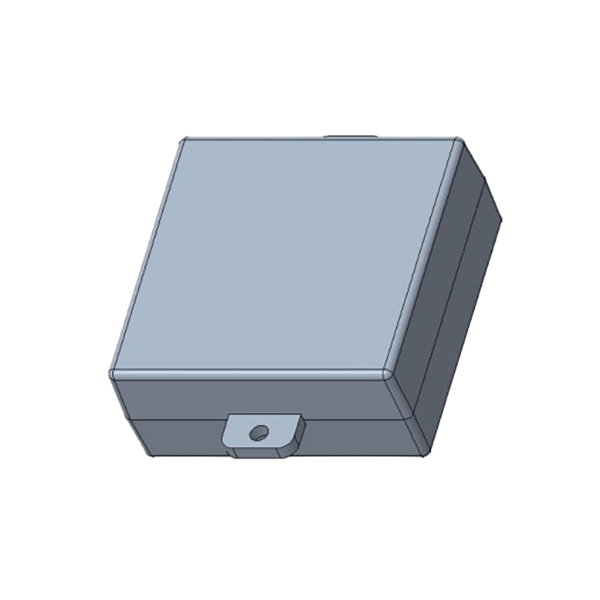

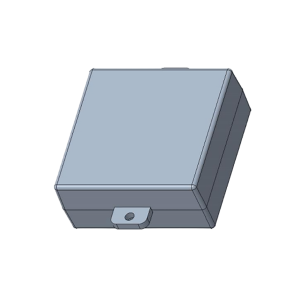

This product is an intermediate frequency 4+4 planar lens designed for the 1710-2170MHz frequency range. It is engineered to provide an average gain of >= 18.5 dBi when paired witha compatible antenna system. The lens supports +/-45° dual polarization with high isolation (>= 25 dB) and excellent intermodulation performance (IM3 <= -107 dBm). It featuresa compact EPS radome and is designed to operate in various environmental conditions ranging from -40°C to +70°C, making it suitable for modern wireless communication infrastructure requiring high-performance beam management and low interference.
OLOLA1710-2170-A |
|
|
Mid-frequency 4+4 planar lens |
|
Property |
Value |
|
Lens Dimensions |
80*102*35mm |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40°C~+70°C |
|
Operating Humidity |
30%~90% |
|
Product Nam |
Mid-Band 4+4 Planar Lens (1710-2170MHz) |
|
Gain (dBi) |
Matching antenna average gain >= 18.5 dBi |
|
Polarization |
+/-45° |
|
Intermodulation IM3 |
<= -107 dBm |
|
Product Model |
Intermediate Frequency 4+4 Planar Lens (PIM <-107dBm/20W) |
|
Operating Frequency (MHz) |
(1710-2170MHz) |
|
Voltage Standing Wave Ratio (VSWR) |
<=1.5 |
|
Cross-Polarization Isolation |
>=25 dB |
|
Third-order Intermodulation (IM3) |
<=-107 dBm |
|
Gross Weight (including packaging) |
<=100g |
|
Horizontal Plane 3dB Beamwidth |
53.7 |
Features |
|
|
Wide frequency range: 1710-2170MHz |
|
|
High average gain of >= 18.5 dBi when paired with antenna |
|
|
Low VSWR of = 25 dB |
|
|
Low intermodulation IM3 <= -107 dBm |
|
|
Horizontal 3dB beamwidth of 53.7° |
|
|
Lightweight and compact design (<= 100g) |
|
Applications |
|
|
It suitable for modern wireless communication infrastructure requiring high-performance beam management and low interference. |
|
