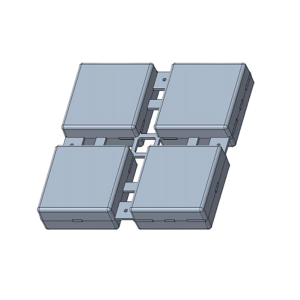

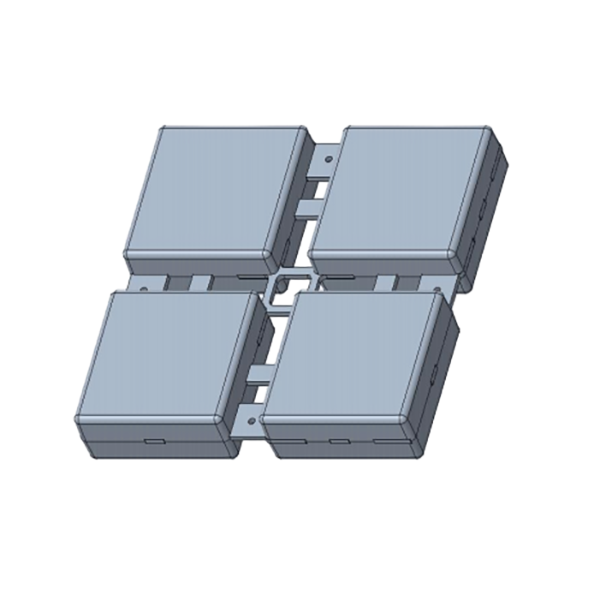

Elevator Shaft Planar Lens
Operating Frequency Range: 1710-2170MHz
Average Antenna Gain: >=19.5dBi
VSWR: =25 dB
Third-order Intermodulation Performance: <=-107 dBm
Compact Dimensions: 228*228*30mm
Lightweight design, gross weight <= 200g
Weather-resistant EPS material with a wide operating temperature rang
- Description
- Datasheet
- Reviews (0)
Description
This product isa flat lens specifically designed for elevator shaft applications in the mid-band frequency range (1710-2170MHz). Primarily utilized for specialized communication coverage in elevator shafts, it enhances the average gain to over 19.5 dBi when paired with an antenna. The product boasts superior electrical performance, including low VSWR (=25 dB). Furthermore, its ultra-low third-order intermodulation (PIM3) performance (<=-107 dBm) ensures signal integrity in multi-carrier environments. Structurally, it featuresa lightweight EPS radome, weighing approximately 200g, and demonstrates high environmental adaptability with an operating temperature range of -40°C to +70°C.
OLOLA1710-2170-B |
|
|
Elevator Shaft Planar Lens |
|
Property |
Value |
|
Lens Dimensions |
228*228*30mm |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40 degC~ |
|
Gross Weight (including packaging) |
<=200g |
Features |
|
|
Operating Frequency Range: 1710-2170MHz |
|
|
Average Antenna Gain: >=19.5dBi |
|
|
VSWR: =25 dB |
|
|
Third-order Intermodulation Performance: <=-107 dBm |
|
|
Compact Dimensions: 228*228*30mm |
|
|
Lightweight design, gross weight <= 200g |
|
|
Weather-resistant EPS material with a wide operating temperature rang |
|
Applications |
|
|
It features a lightweight EPS radome, weighing approximately 200g, and demonstrates high environmental adaptability with an operating temperature range of -40°C to +70°C. |
|
