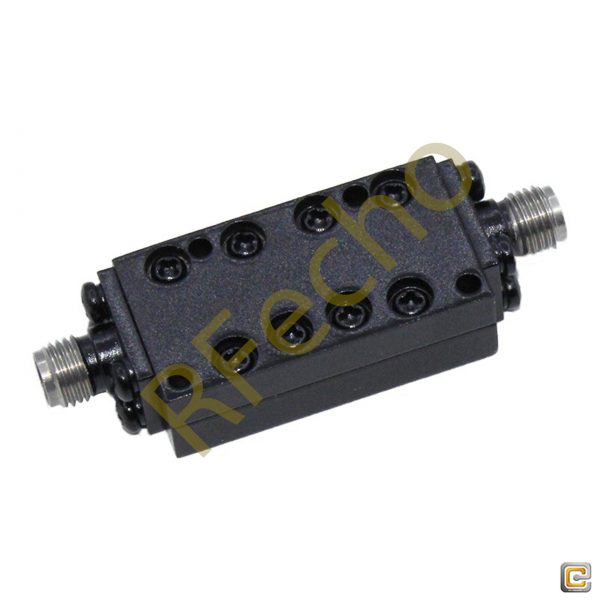

Cavity RF High pass Filter 3GHz to 21GHz Passive High pass Filter rejection ≥ 50dB DC~2.36GHz with SMA Female Connector

Cavity RF High pass Filter 3GHz to 21GHz Passive High pass Filter rejection ≥ 50dB DC~2.36GHz with SMA Female Connector

Cavity RF High Pass Filter model OHP: 3000-21000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity RF High Pass Filter Manufactured with a passband frequency from 3GHz to 21GHz and a Cut-off frequency 3GHz. Our Passive High Pass Filter provides a nominal insertion loss of ≤1.5dB @ 3GHz – 3.1GHz | ≤1.0dB @ 3.1GHz – 21GHz across its passband and a typical rejection of ≥50dB @DC – 2.36GHz. Since the high end cutoff frequency of Cavity RF High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive High Pass Filter has Passband VSWR of ≤1.5:1 @ 3GHz – 20GHz | ≤1.7:1 @ 20GHz – 21GHz and power handling of ≤15W. Cavity RF High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.02Kg.
3GHz to 21GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3GHz to 21GHz Cavity RF High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this Passive High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-3000-21000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-3000-21000:

  • Cut Off Frequency: 3.0GHz,
  • Pass Band Frequency: 13-21GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥50 dB @ DC -2.36 GHz.

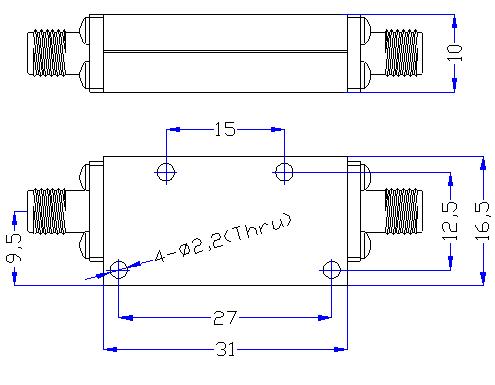

Outline

3.0 GHz to 21 GHz Rejection ≥50 dB @ DC -2.36 GHz High Pass Cavity Filter 01

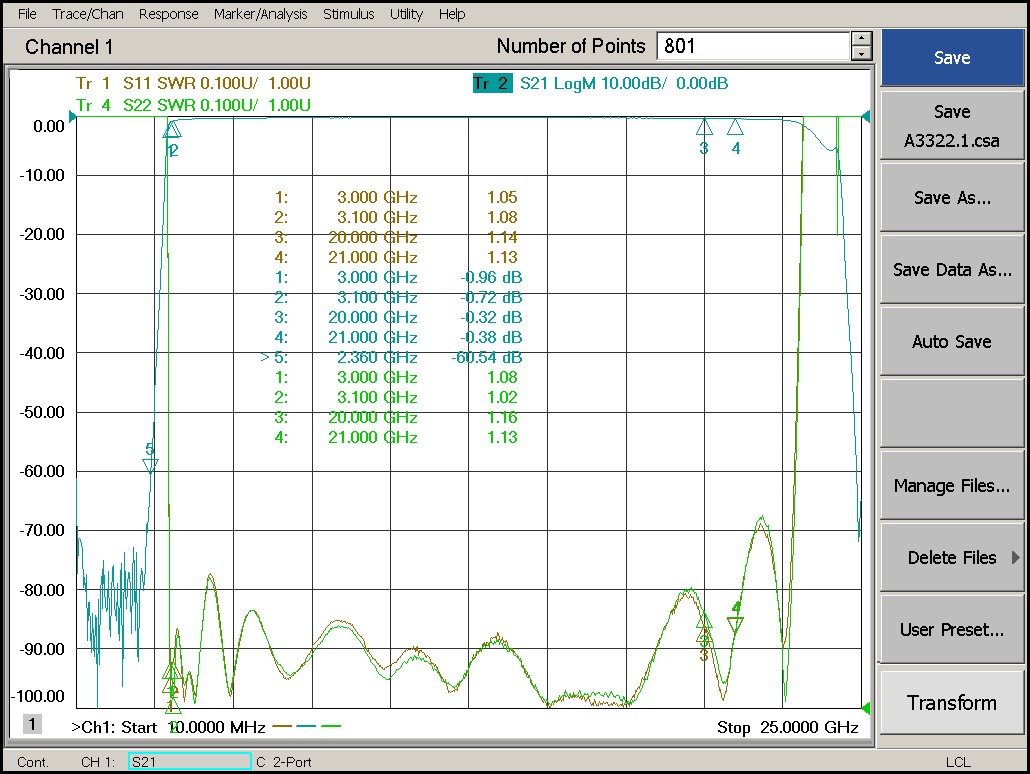

Plot

3.0 GHz to 21 GHz Rejection ≥50 dB @ DC -2.36 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.02 kg
Min. Pass Band Frequency (GHz)

3.0

Max. Pass Band Frequency (GHz)

21

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB @3.0 ~3.1GHz ≤1.0dB @ 3.1 ~21GHz

VSWR

≤1.5:1 @ 3.0 ~20GHz ≤1.7:1 @ 20 ~21GHz

Rejection

≥50 dB @ DC -2.36 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
