300 mm Circular Lens
Wide operational frequency range: 1700-6000MHz
High gain performance up to 19.3 dBi
Multi-beam capability (3 beams for sub-3GHz bands)
Excellent VSWR performance =25 dB)
Low passive intermodulation (<=-107 dBm)
Lightweight and durable EPS radome construction
- Description
- Datasheet
- Reviews (0)
Description

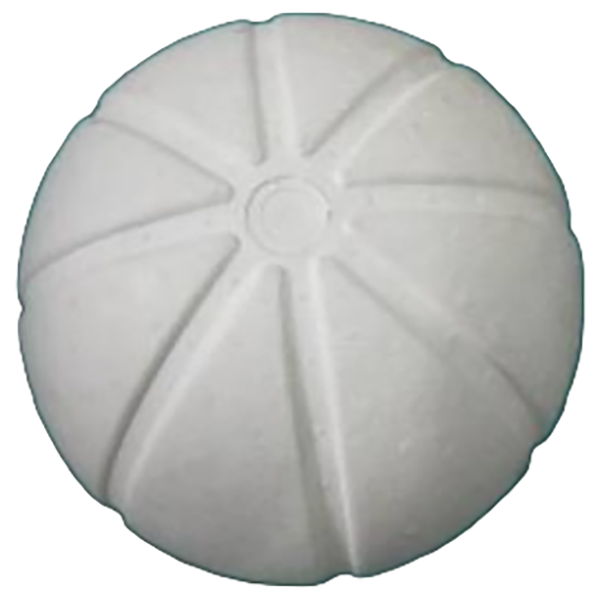

The OLLA10300B0301-300mm isa 300mm diameter circular lens antenna designed fora broad frequency range of 1700MHz to 6000MHz. It offers high gain performance, reaching up to 19.3 dBi, and supports triple beam configurations in lower frequency bands. This lens antenna is characterized by low VSWR, dual-polarization support (+/-45°), and excellent isolation between ports. Constructed with EPS radome material, it is lightweight and designed to operate reliably acrossa wide temperature range of -40°C to +70°C.
OLLA10300B0301-300mm |
|
|
300 mm Circular Lens |
|
Property |
Value |
|
Typical Gain (dBi) (1880-2025) |
14.3 |
|
Typical Gain (dBi) (2025-2515) |
15.1 |
|
Typical Gain (dBi) (2515-2690) |
15.7 |
|
Typical Gain (dBi) (3400-3800) |
18.2 |
|
Typical Gain (dBi) (4800-5000) |
19.1 |
|
Typical Gain (dBi) (5700-5900) |
19.3 |
|
Number of Beams (1710-1880) |
3 |
|
Number of Beams (1880-2025) |
3 |
|
Number of Beams (2025-2515) |
3 |
|
Number of Beams (2515-2690) |
3 |
|
Number of Beams (3400-3800) |
/ |
|
Number of Beams (4800-5000) |
/ |
|
Number of Beams (5700-5900) |
/ |
|
Horizontal Beam Pointing (1710-1880) |
0° |
|
Horizontal Beam Pointing (1880-2025) |
0° |
|
Horizontal Beam Pointing (2025-2515) |
0° |
|
Horizontal Beam Pointing (2515-2690) |
0° |
|
Horizontal Beam Pointing (3400-3800) |
/ |
|
Horizontal Beam Pointing (4800-5000) |
0° |
|
Horizontal Beam Pointing (5700-5900) |
/ |
|
Voltage Standing Wave Ratio (VSWR) (1710-1880) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (1880-2025) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (2025-2515) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (2515-2690) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (3400-3800) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (4800-5000) |
<=1.5 |
|
Voltage Standing Wave Ratio (VSWR) (5700-5900) |
<=1.5 |
|
Polarization (1710-1880) |
+/-45° |
|
Polarization (1880-2025) |
+/-45° |
|
Polarization (2025-2515) |
+/-45° |
|
Polarization (2515-2690) |
+/-45° |
|
Polarization (3400-3800) |
+/-45° |
|
Polarization (4800-5000) |
+/-45° |
|
Polarization (5700-5900) |
+/-45° |
|
Cross-Polarization Isolation (1710-1880) |
>=25 dB |
|
Cross-Polarization Isolation (1880-2025) |
>=25 dB |
|
Cross-Polarization Isolation (2025-2515) |
>=25 dB |
|
Cross-Polarization Isolation (2515-2690) |
>=25 dB |
|
Cross-Polarization Isolation (3400-3800) |
>=25 dB |
|
Cross-Polarization Isolation (4800-5000) |
>=25 dB |
|
Cross-Polarization Isolation (5700-5900) |
>=25 dB |
|
Third-order intermodulation (IM3) (1710-1880) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (1880-2025) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (2025-2515) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (2515-2690) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (3400-3800) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (4800-5000) |
<=-107 dBm |
|
Third-order intermodulation (IM3) (5700-5900) |
<=-107 dBm |
|
Lens Dimensions |
300 mm |
|
Packaging Dimensions |
630x630x630mm (8-unit integrated simple packaging) |
|
Antenna Net Weight |
/ |
|
Gross Weight (Lens) |
<=700g |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40°C~+70°C |
|
Operating Humidity |
30%~90% |
|
Power Rating |
20W (based on intermodulation spec) |
Features |
|
|
Wide operational frequency range: 1700-6000MHz |
|
|
High gain performance up to 19.3 dBi |
|
|
Multi-beam capability (3 beams for sub-3GHz bands) |
|
|
Excellent VSWR performance =25 dB) |
|
|
Low passive intermodulation (<=-107 dBm) |
|
|
Lightweight and durable EPS radome construction |
|
Applications |
|
|
Designed to operate reliably acrossa wide temperature range of -40°C to +70°C |
|
