400mm Circular Lens
Wide frequency range: 1700-6000 MHz
High typical gain up to 21.6 dBi in 5.8GHz band
Multi-beam capability (3 beams)
Dual polarization: +/-45°
Low VSWR <= 1.5
Exceptional intermodulation performance: <= -107dBm @ 2x20W
Robust EPS radome construction
Wide operating temperature: -40°C to +70°C
- Description
- Datasheet
- Reviews (0)
Description

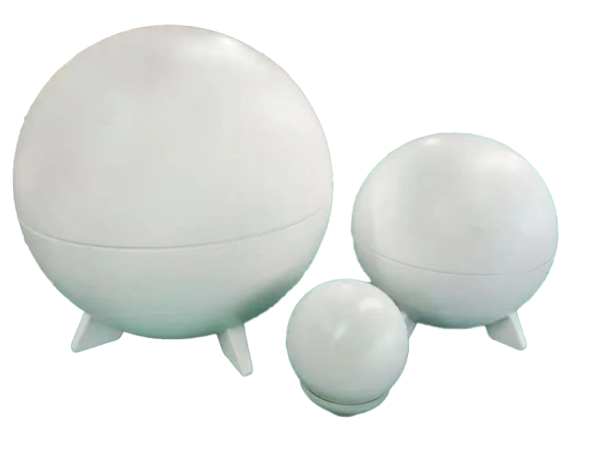

The OLLA10400B0401 isa wideband circular lens antenna operating acrossa broad frequency spectrum from 1700 MHz to 6000 MHz. It provides high gain performance ranging from 13.5 to 24 dBi and supports up to 3 beams, making it suitable for multi-beam communication applications. The antenna features +/-45° polarization, a low VSWR of <=1.5, and excellent intermodulation (IM3 <= -107dBm). It is constructed with an EPS radome and is designed to operate in diverse environmental conditions witha temperature range of -40°C to +70°C.
OLLA10400B0401 |
|
|
400mm Circular Lens |
|
Property |
Value |
|
Lens Dimensions |
400 mm |
|
Packaging Dimensions |
630x630x630mm (4-in-1 integrated simple packaging) |
|
Gross Weight (Lens) |
<= 1.5kg |
|
Radome Material |
EPS |
|
Operating Temperatur |
-40°C~+70°C |
|
Operating Humidity |
30%~90% |
|
Product Nam |
OLLA10400B0401/1700-6000MHz/13.5-24dBi/Circular Lens |
|
Horizontal Beam Pointing |
0° |
|
Polarization |
+/-45° |
|
Product Model |
400 (Intermodulation <-107dBm/20W) |
|
Operating Frequency (MHz) |
1710-1880, 1880-2025, 2025-2515, 2515-2690, 3400-3800, 4800-5000, 5700-5900 |
|
Typical Gain (dBi) |
16, 16.6, 18.1, 19.2, 19.9, /, 21.6 |
|
Number of Beams |
3 |
|
Voltage Standing Wave Ratio (VSWR) |
<=1.5 |
|
Cross-Polarization Isolation |
>=25 dB |
|
Third-order Intermodulation (IM3) |
<= -107dBm (20W) |
|
Maximum Power Rating (implied) |
20W (used for IM3 test) |
Features |
|
|
Wide frequency range: 1700-6000 MHz |
|
|
High typical gain up to 21.6 dBi in 5.8GHz band |
|
|
Multi-beam capability (3 beams) |
|
|
Dual polarization: +/-45° |
|
|
Low VSWR <= 1.5 |
|
|
Exceptional intermodulation performance: <= -107dBm @ 2x20W |
|
|
Robust EPS radome construction |
|
|
Wide operating temperature: -40°C to +70°C |
|
Applications |
|
|
Designed to operate in diverse environmental conditions witha temperature range of -40°C to +70°C. |
|
