33–37 GHz Transceiver Front-End IC – MH305W
RX gain: 10 dB typ.
RX noise figure: 8.5 dB typ.
IF frequency range: 0.1 to 100 MHz
TX frequency range: 33 to 37 GHz
Supply voltage: 1.1 V
Integrated VCO, frequency multiplier, amplifiers and mixers
Wideband frequency modulation
- Description
- Datasheet
- Functional Block Diagram
Description
The MH305W is a transceiver front-end IC operating over 33–37 GHz. Integrated VCO, frequency multiplier, amplifiers and mixers. Wideband frequency modulation.
Applications: Short- and medium-range radar sensing.
Product status: Production.
Transceiver Front-End IC Specifications | |
| 33–37 GHz | |
| MH305W | |
Index | Value |
| RX frequency range | 33 to 37 GHz |
| RX input impedance | 50 Ω typ.; Single-ended |
| RX gain | 10 dB typ.; 50 Ω single-ended IF load |
| RX noise figure | 8.5 dB typ.; 50 Ω single-ended IF load |
| RX input 1 dB compression point | −15 dBm typ.; 50 Ω single-ended IF load |
| IF frequency range | 0.1 to 100 MHz |
| IF output impedance | 100 Ω typ.; Differential |
| TX frequency range | 33 to 37 GHz |
| TX output power | 15 dBm typ. |
| RX in-band gain flatness | −1 to +1 dB |
| TX in-band power flatness | −2 to +2 dB |
| TX phase noise | −93 dBc/Hz typ.; 35 GHz, 1 MHz offset |
| VCO tuning voltage | 0.1 to 1.8 V |
| Supply voltage | 1.1 V typ. |
| Operating current | 190 mA typ. |
| Operating temperature | −55 to +85 °C |
| Supply voltage | 1.1 V |
| Package / dimensions | BGA, 3.4 × 3.4 mm, 0.4 mm pitch |
Features | |
| Integrated VCO, frequency multiplier, amplifiers and mixers | |
| Wideband frequency modulation | |
| Single-ended 50 Ω RF ports | |
| Differential IF output; single-ended operation supported | |
Application Scenarios

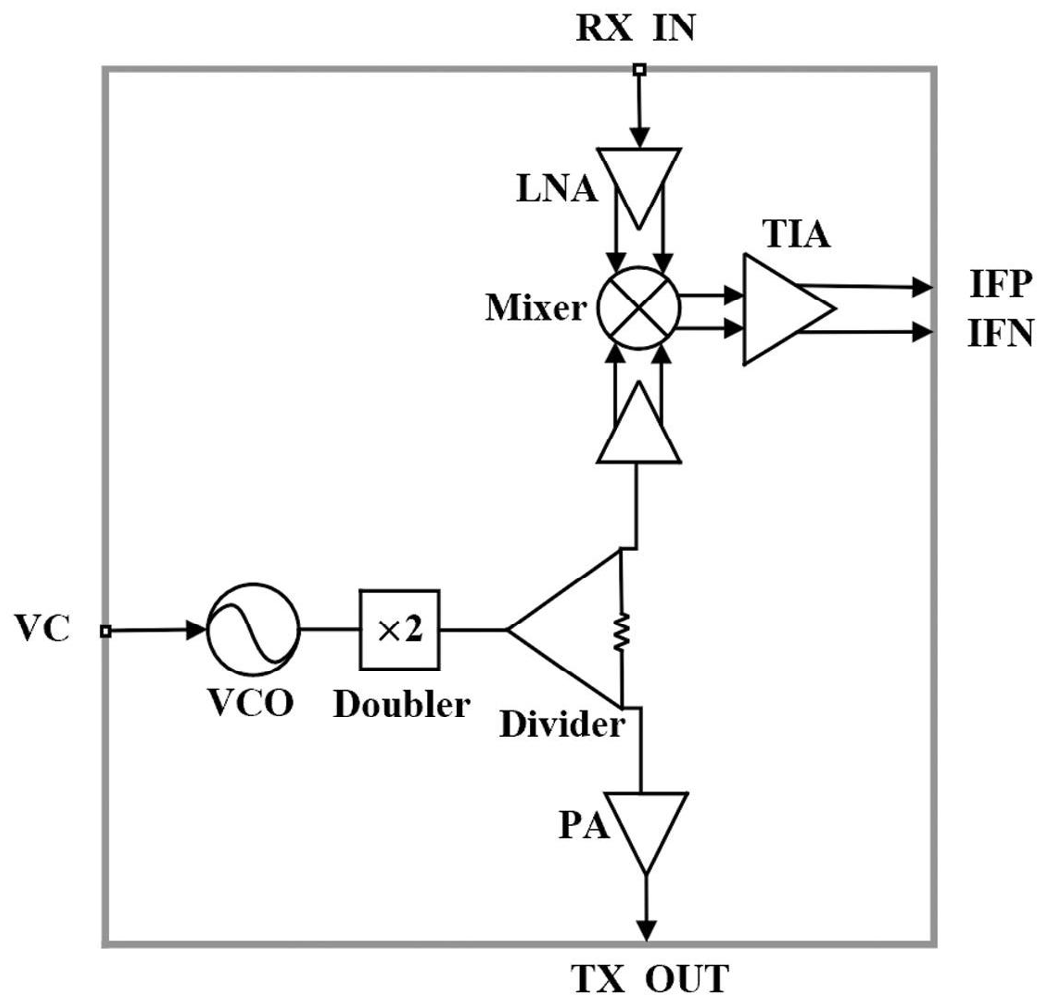

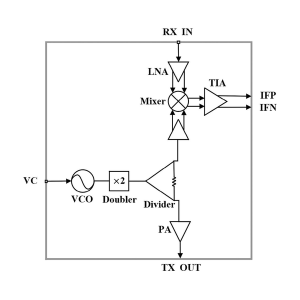

Functional Block Diagram
