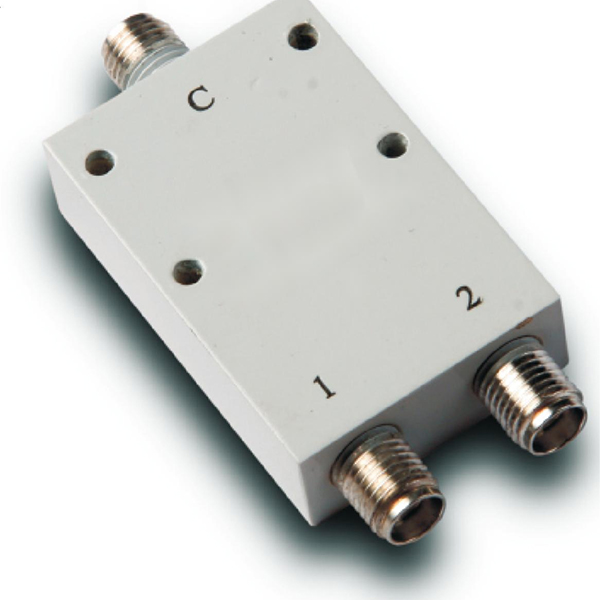

4-18GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency coverage: 0.5-18GHz (Specific model 4-18GHz)
Small volume, low consumption
Low VSWR, high isolation
Consistent product quality suitable for batch production
Applications: Communications, EW, Radar, Navigation, Test & Measurement
Customizable designs available
- Description
- Datasheet

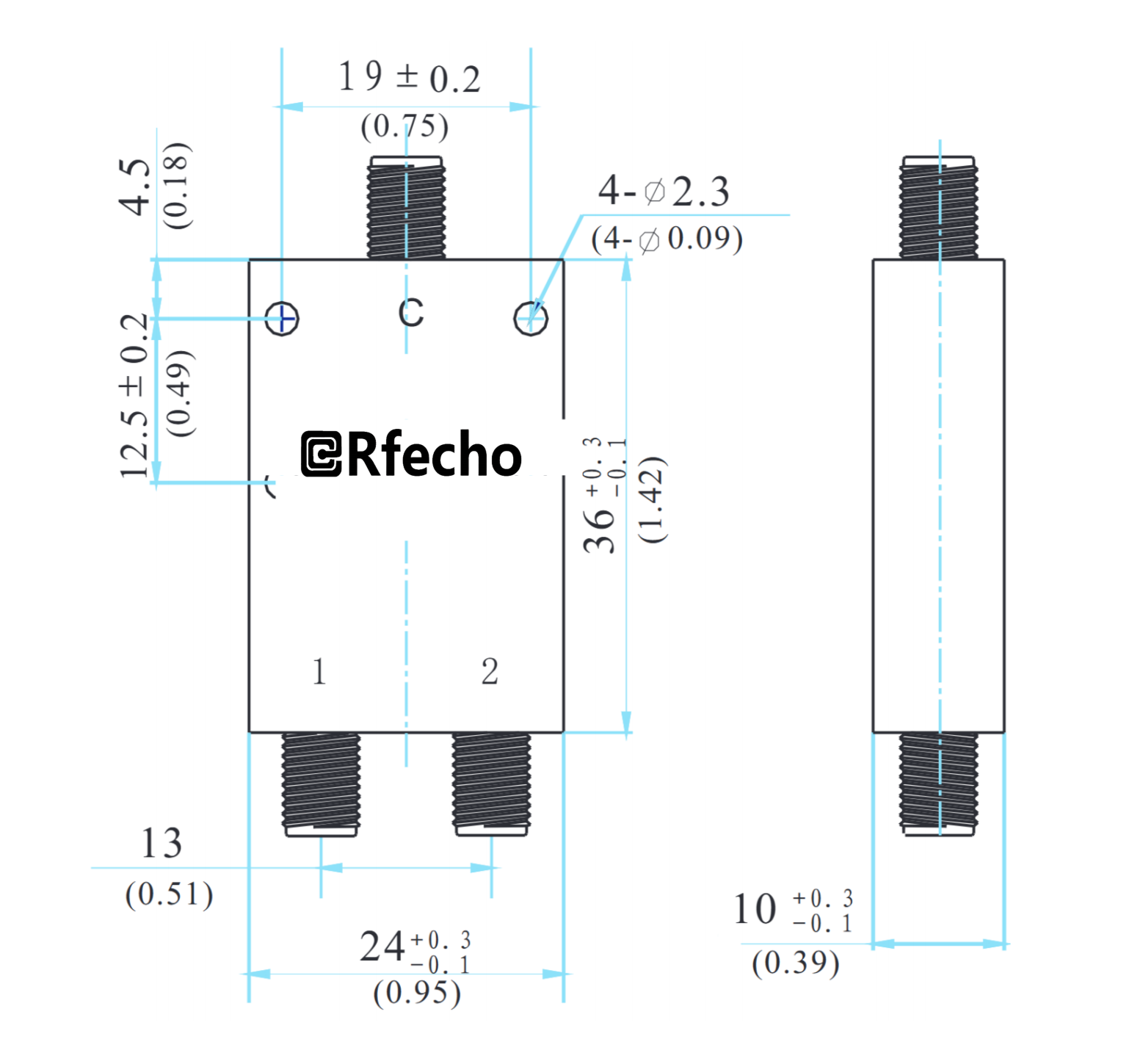

- Outline
- Reviews (0)
Description
The A series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range. They feature smallsize, low loss, low VSWR, and high isolation. This series utilizes batch production control methods, ensuring high con-sistency and quality, capable of meeting large volume supplyrequirements. The OPD-A0224 is primarily used in communication, electronic warfare, radar, navigation, and test/mea-surement systems for the distribution and synthesis of 2-waymicrowave signals.
OPD-A0224 |
|
|
4-18GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
0.80dB |
|
Isolation |
18dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±5° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.5 |
|
Output VSWR |
1.5 |
|
Compliance |
Complies with GJB-1426-92 test requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Frequency coverage: 0.5-18GHz (Specific model 4-18GHz) |
|
|
Small volume, low consumption |
|
|
Low VSWR, high isolation |
|
|
Consistent product quality suitable for batch production |
|
|
Applications: Communications, EW, Radar, Navigation, Test & Measurement |
|
|
Customizable designs available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
