Small size
Low loss
Low VSWR
High isolation
High product consistency suitable for mass production
Customizable designs available

SKU: OPD-A0231 Category: 2 Way RF Power Divider
Add to Wishlist

Description

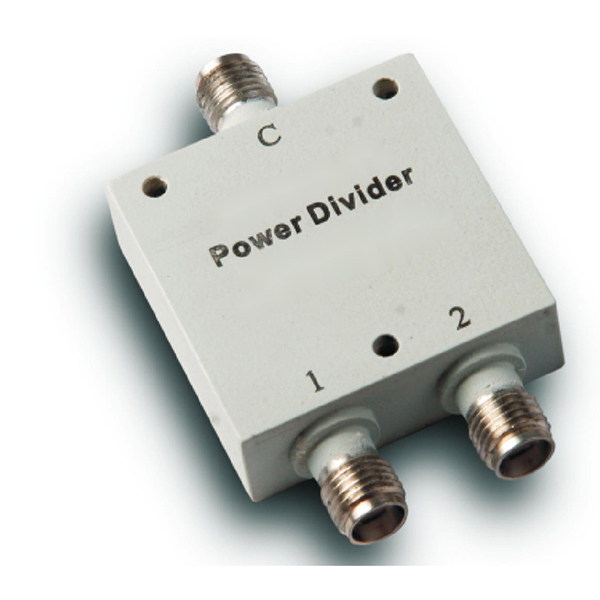

The A-series power dividers are SMA connector 0° power dividers, covering a full range of 0.5-18GHz. They feature smallphysical dimensions, low loss, low VSWR, and high isolation.This series utilizes mass production control measures, ensuring high quality consistency to meet large-volume deliv-ery requirements. The OPD-A0231 is primarily used in electronic warfare, radar, navigation, testing, and communicationsystems for signal distribution and combining. Standardizedproducts are available, and custom designs based on userrequirements are also supported.

OPD-A0231

1-2GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider


Property

Value

Frequency Range

1-2GHz

Insertion Loss

0.35dB

Isolation

20dB

Power Handling

30W

Connector

SMA-F

Amplitude Balance

±0.20dB

Phase Balance

±2°

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

Input VSWR

1.2

Output VSWR

1.15

Compliance

Meets ‘GJB-1509-1992’ test requirements

Features

Small size

Low loss

Low VSWR

High isolation

High product consistency suitable for mass production

Customizable designs available

Applications

Electronic Countermeasures, Testing and Measurement

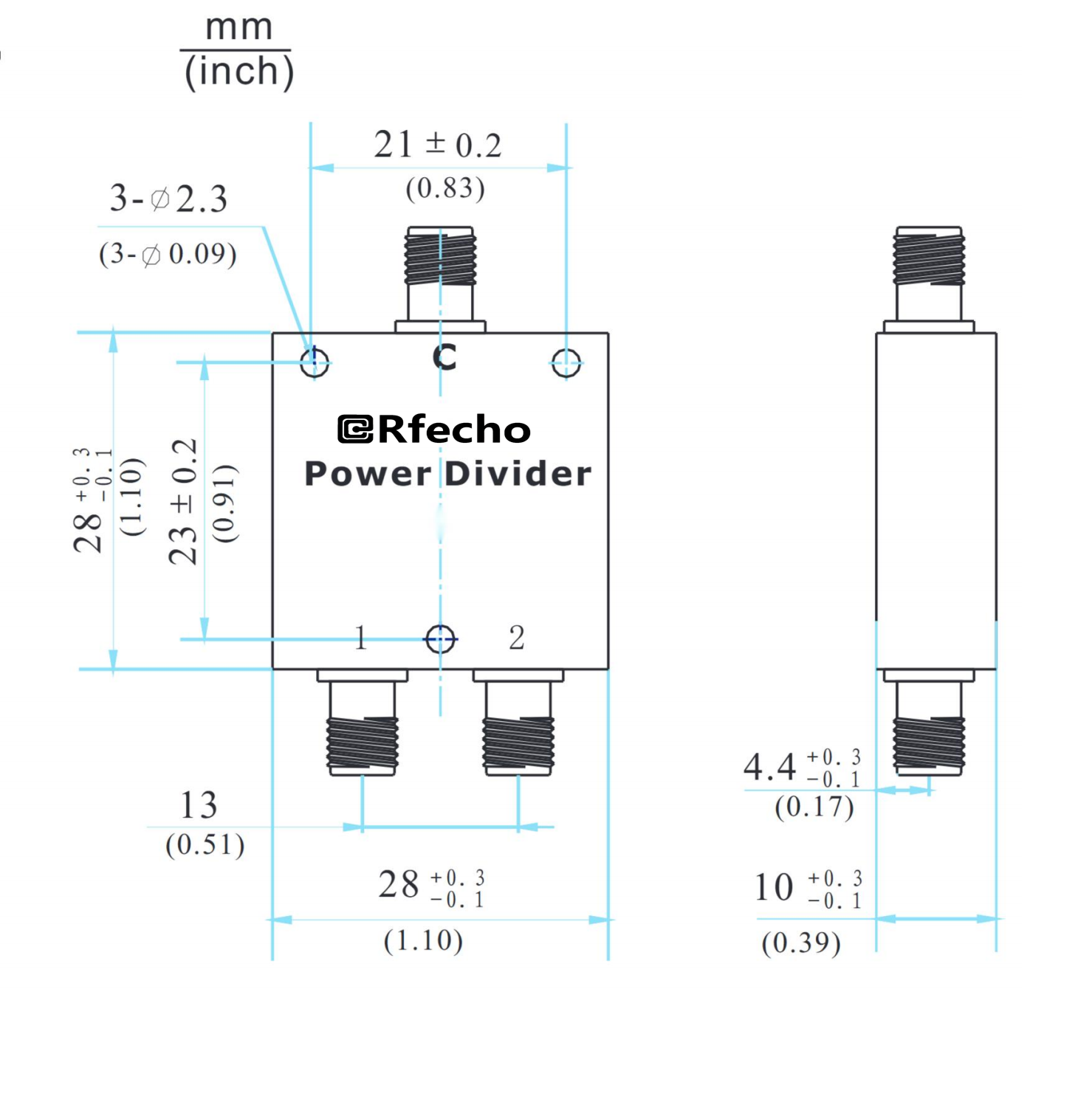

1-2GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider-Outline
