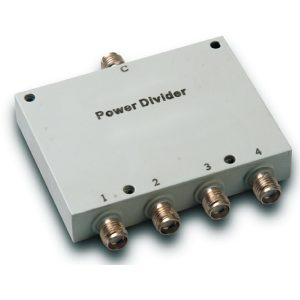

4-8GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Covers 0.5-18GHz range (Series)
Small volume
Low insertion loss
Low VSWR
High isolation
High consistency mass production
Available for customization
- Description
- Datasheet

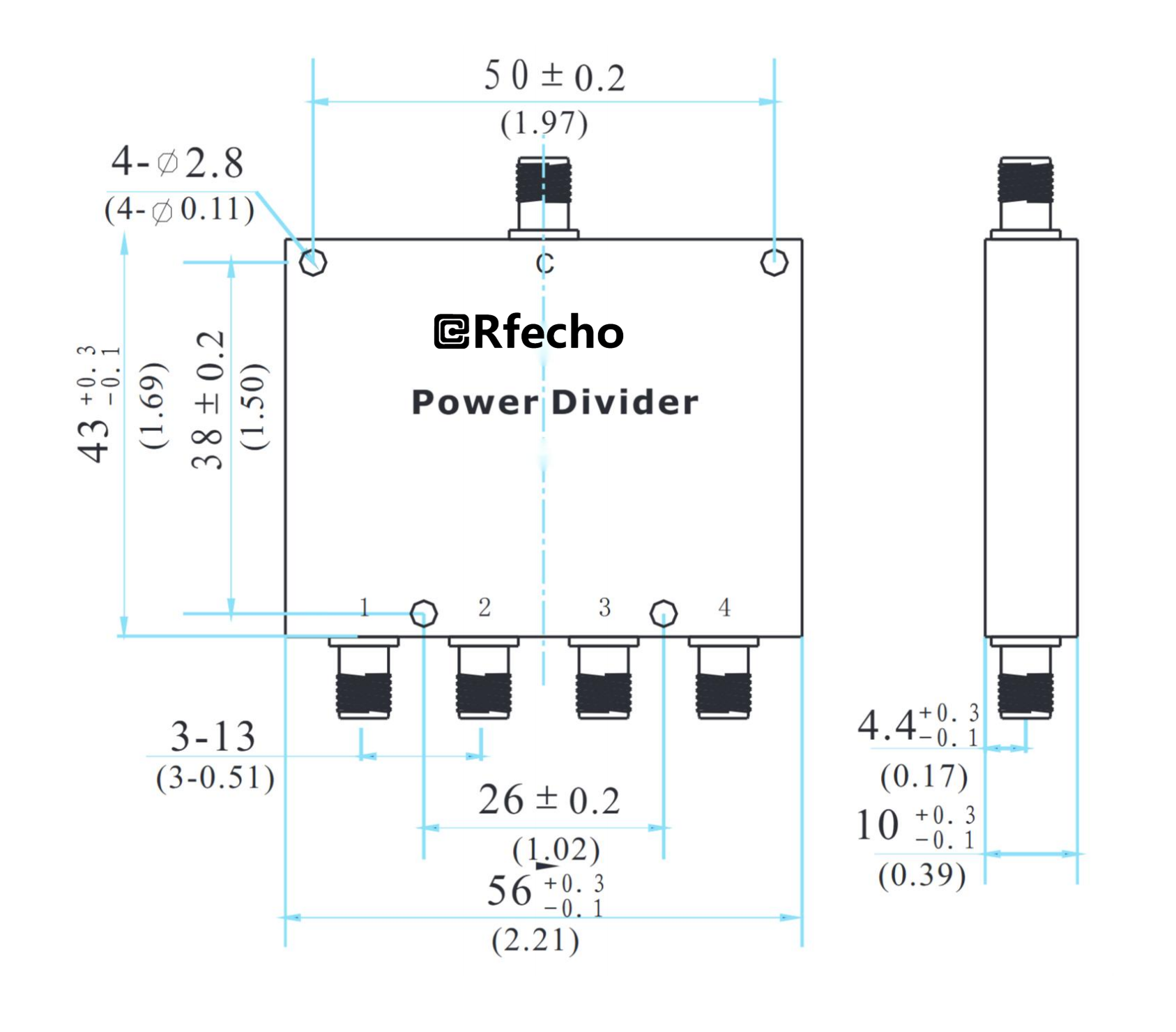

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0° power dividers withSMA connectors, covering the full 0.5-18GHz range. Theyfeature compact size, low loss, low VSWR, and high isolation.This series employs batch production control methods, ensuring high product quality consistency to meet large-volumesupply requirements. The OPD-A0433 is primarily used inelectronic warfare, radar, navigation, test and measurement,and communication systems for 4-way microwave signal distribution and combination.
OPD-A0433 |
|
|
4-8GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-8GHz |
|
Insertion Loss |
0.80dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±3° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.25 |
|
Compliance |
Meets GJB-1509-1992 test requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Covers 0.5-18GHz range (Series) |
|
|
Small volume |
|
|
Low insertion loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
High consistency mass production |
|
|
Available for customization |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
