4 dBi Gain, 0.4 GHz to 2.5 GHz, Directional Antenna (f 380MHz)
Model OLP-425 is a directional antenna that offers the frequency range from 0.4 GHz to 2.5 GHz. This model operate with the gain of 4 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies.
This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas.
- Description
- Reviews (0)
Description
|
Directional Antenna (f 380MHz) |
|
|
4 dBi Gain, 0.4 GHz to 2.5 GHz, Directional Antenna (f 380MHz) |
|
|
OLP-425 |
|
|
Model OLP-425 is a directional antenna that offers the frequency range from 0.4 GHz to 2.5 GHz. This model operate with the gain of 4 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies. This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
0.4 |
|
Max. Frequency (GHz) |
2.5 |
|

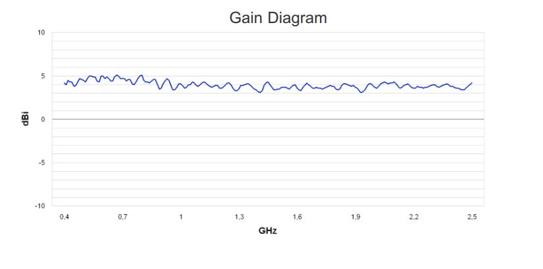

Gain(dBi) |
4 |
|
Impedance (?) |
50 |
|
VSWR (Typ.) |
1:2,5 |
|
Connection Type |
SMA (F) or N |
|
Tripod Connection (in.) |
1/4 |
|
Features |
|
|
Includes exhaustive calibration data (on CD) |
|
|
Special designed radome for perfect antenna protection |
|
|
Gold coating for stable performance |
|
|
Wide bandwidth |
|
|
Coverage of various mobile radio frequency ranges |
|
|
Suitable for field-strength and EMC measurements due to high precision |
|
|
Compact and sturdy design |
|
|
Applications |
|
|
ISM434, LTE800, ISM868, GSM900, GSM1800, GSM1900 |
|
|
DECT UMTS WLAN Microwave Bluetooth |
|
|
WiFi LTE2.6 WiMAX 5GHz WLAN |
|
