45 MHz to 450 MHz, N Female, EMC Biconical Antenna-RFecho

$1690

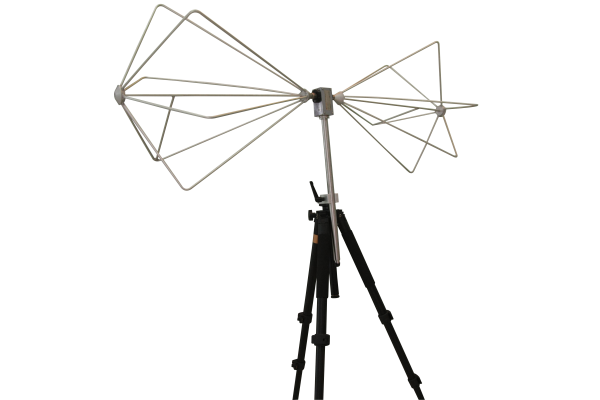

The OBC-45M450M-10W-4 is a vertically polarized omnidirectional antenna with a frequency range of 45 MHz to 450 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-45M450M-10W-4 is widely used for a variety of demanding applications. Firstly, it is ideal for Low-to-Mid Frequency EMC Testing, using for older communication systems, broadcast equipment, and various industrial electronics. It overlaps with the VHF and the lower end of the UHF spectrum, making it suitable for devices operating. In broadcasting systems, this model is essential for testing FM radio systems and VHF/UHF TV channels, ensuring compliance with emissions standards, including portions used for analog TV and public service communications. For military communication, the antenna is crucial for testing devices such as tactical radios and two-way radios used by ground forces within the VHF bands. It also covers emergency response communications and other short-range communication systems. In the field of industrial electronics, the OBC-45M450M-10W-4 is commonly used for utility communication systems and low-frequency industrial equipment, ensuring these systems operate within regulatory compliance. Lastly, this model is particularly suited for narrowband applications, providing narrower bandwidth testing and detailed analysis at discrete frequencies, making it ideal for devices.https://www.rfecho.com/product-category/emc-antenna/

SKU: OBC-45M450M-10W-4 Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna

Description

The OBC-45M450M-10W-4 is a vertically polarized omnidirectional antenna with a frequency range of 45 MHz to 450 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-45M450M-10W-4 is widely used for a variety of demanding applications. Firstly, it is ideal for Low-to-Mid Frequency EMC Testing, using for older communication systems, broadcast equipment, and various industrial electronics. It overlaps with the VHF and the lower end of the UHF spectrum, making it suitable for devices operating. In broadcasting systems, this model is essential for testing FM radio systems and VHF/UHF TV channels, ensuring compliance with emissions standards, including portions used for analog TV and public service communications. For military communication, the antenna is crucial for testing devices such as tactical radios and two-way radios used by ground forces within the VHF bands. It also covers emergency response communications and other short-range communication systems. In the field of industrial electronics, the OBC-45M450M-10W-4 is commonly used for utility communication systems and low-frequency industrial equipment, ensuring these systems operate within regulatory compliance. Lastly, this model is particularly suited for narrowband applications, providing narrower bandwidth testing and detailed analysis at discrete frequencies, making it ideal for devices.https://www.rfecho.com/product-category/emc-antenna/

Electrical Specifications

45 MHz to 450 MHz, N Female

OBC-45M450M-10W-4

Property

Value

Min. Frequency (MHz)

45

Max. Frequency (MHz)

450

Impedance (?)

50

Power Handling (W)

10

Balun Type Transform Ratio

4:1

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

Additional information

Min. Frequency (MHz)

45

Max. Frequency (MHz)

450

Impedance (Ω)

50

Power Handling (W)

10

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

4:01

Connection Type

N Female
