‘-5 dBi to 41 dBi Gain,20 MHz to 1000 MHz, SMA (F) or N, Biconical Antenna with Amplifier-RFecho

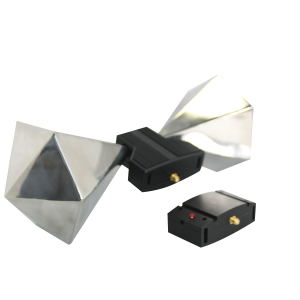

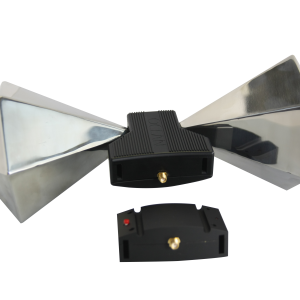

The OBC-20M-10-A antenna offers an unparalleled combination of pattern control and balance, making it ideal for EC and EMI measurements. Its improved baluns ensure superior pattern control, enhanced balance, and a redesigned biconical element for a broad frequency range. Each antenna undergoes rigorous laboratory testing before shipment and features a durable rubber coating that provides protection against mechanical damage and environmental influences. Additionally, it includes a high-quality integrated tripod connection and SMA connector for optimal performance in testing environments.

The OBC-20M-10-A comes with a high-resolution calibration data set in steps as fine as 10 MHz or even 5 MHz, containing an unmatched number of calibration points (available on CD). This detailed calibration ensures accurate EMC measurements with any Spectrum Analyzer, offering the precision needed for reliable testing. With such high standards, the product also comes with a full 10-year warranty on all EMC antennas, demonstrating a commitment to quality and performance.

The combination of advanced features and compact design makes the OBC-20M-10-A stand out for various demanding applications. Firstly, this antenna is ideal for Electromagnetic Compatibility (EMC) testing, particularly for consumer electronics and communication devices, ensuring they comply with electromagnetic interference (EMI) standards. Additionally, the longer wavelengths at the lower end of the spectrum allow for better signal propagation over long distances, despite obstacles like buildings and trees. This makes the antenna suitable for environments requiring long-distance signal detection and field strength measurement, particularly in open spaces. They are also crucial for broadcast and communication testing, covering frequencies used in AM/FM radio, VHF/UHF broadcasting, and even some military communications. The OBC-20M-10-A is commonly used for general frequency scanning, spectrum monitoring, and field measurements. Their wide operating range allows for precise measurements where accurate frequency response across a broad range is required, making them an essential component in wideband testing environments.https://www.rfecho.com/product-category/rf-antenna/biconical-antenna/

SKU: OBC-20M-10-A Categories: Biconical Antenna, RF Antenna

Description

The OBC-20M-10-A antenna offers an unparalleled combination of pattern control and balance, making it ideal for EC and EMI measurements. Its improved baluns ensure superior pattern control, enhanced balance, and a redesigned biconical element for a broad frequency range. Each antenna undergoes rigorous laboratory testing before shipment and features a durable rubber coating that provides protection against mechanical damage and environmental influences. Additionally, it includes a high-quality integrated tripod connection and SMA connector for optimal performance in testing environments.

The OBC-20M-10-A comes with a high-resolution calibration data set in steps as fine as 10 MHz or even 5 MHz, containing an unmatched number of calibration points (available on CD). This detailed calibration ensures accurate EMC measurements with any Spectrum Analyzer, offering the precision needed for reliable testing. With such high standards, the product also comes with a full 10-year warranty on all EMC antennas, demonstrating a commitment to quality and performance.

The combination of advanced features and compact design makes the OBC-20M-10-A stand out for various demanding applications. Firstly, this antenna is ideal for Electromagnetic Compatibility (EMC) testing, particularly for consumer electronics and communication devices, ensuring they comply with electromagnetic interference (EMI) standards. Additionally, the longer wavelengths at the lower end of the spectrum allow for better signal propagation over long distances, despite obstacles like buildings and trees. This makes the antenna suitable for environments requiring long-distance signal detection and field strength measurement, particularly in open spaces. They are also crucial for broadcast and communication testing, covering frequencies used in AM/FM radio, VHF/UHF broadcasting, and even some military communications. The OBC-20M-10-A is commonly used for general frequency scanning, spectrum monitoring, and field measurements. Their wide operating range allows for precise measurements where accurate frequency response across a broad range is required, making them an essential component in wideband testing environments.https://www.rfecho.com/product-category/rf-antenna/biconical-antenna/

Biconical Antenna with Amplifier

-5 dBi to 41 dBi Gain,20 MHz to 1000 MHz, SMA (F) or N, Biconical Antenna with Amplifier-RFecho

OBC-20M-10-A

Property

Value

Min. Frequency (MHz)

20

Max. Frequency (MHz)

1000

Impedance (?)

50

Max. Output Power (mW), AM

100

Min. Gain (dBi)

-5

Max. Gain (dBi)

41

Connection Type

SMA (F) or N

Features

The excellent cost-effective choice for low-frequency measurements down to 50MHz

Typical standard calibration data (on CD)

Coverage of various mobile radio frequency ranges

Suitable for field-strength and EMC measurements due to high precision

Compact design

Can be used in the lab and for open-field application

Applications

Frequency range 50MHz – 700MHz

Radio & TV Tetra/BOS

ISM434

Additional information

Min. Frequency (MHz)

20

Max. Frequency (MHz)

1000

Impedance (Ω)

50

Power Handling (W)

NA

Max. Output Power (mW), AM

100

Min. Gain (dBi)

-5

Max. Gain (dBi)

-41

Balun Type Transform Ratio

NA

Connection Type

SMA (F) or N
