5GHz to 22GHz Passive Cavity High Pass Filter model OHP: 5000-22000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 5GHz to 22GHz Passive Cavity High Pass Filter Manufactured with a passband frequency from 5GHz to 22GHz and a Cut-off frequency 5GHz. Our High Pass Microwave Filter provides a nominal insertion loss of ≤2.0dB @ 5GHz to 5.25GHz | ≤1.0dB @ 5.25GHz to 22GHz across its passband and a typical rejection of ≥60dB @ DC to 4.48GHz. Since the high end cutoff frequency of 5GHz to 22GHz Passive Cavity High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Microwave Filter has Passband VSWR of ≤1.5:1 @ 5GHz to 20GHz ≤1.7:1 @ 20GHz to 22GHz and power handling of ≤15W. 5GHz to 22GHz Passive Cavity High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.025Kg. 5GHz to 22GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 5GHz to 22GHz Passive Cavity High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Microwave Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-5000-22000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-5500-22000:

  • Cut Off Frequency: 5GHz,
  • Pass Band Frequency: 5.0-22GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥60 dB @ DC-4.48 GHz.

Outline

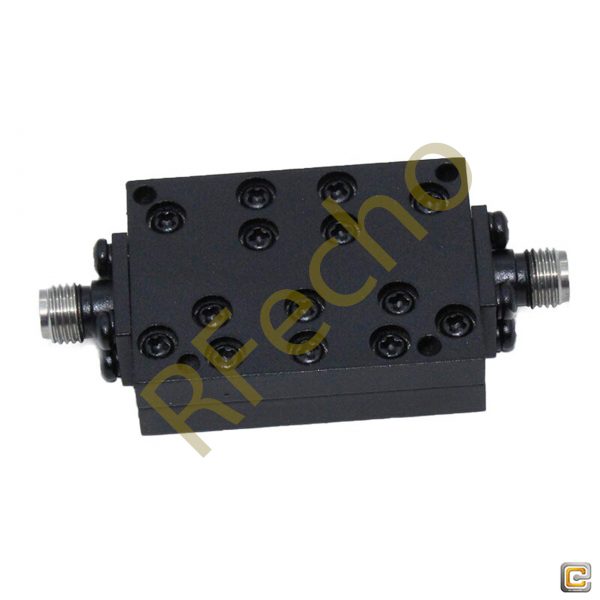

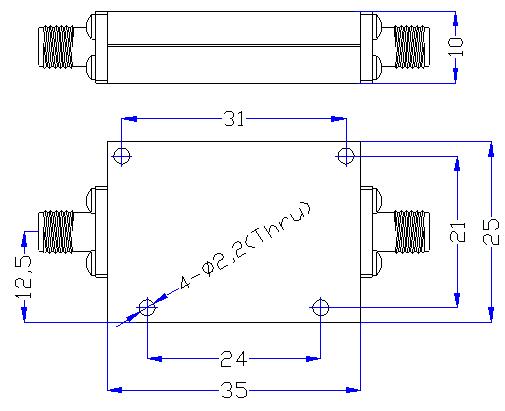

5.0 GHz to 22 GHz Rejection ≥60 dB @ DC-4.48 GHz High Pass Cavity Filter 01

Plot

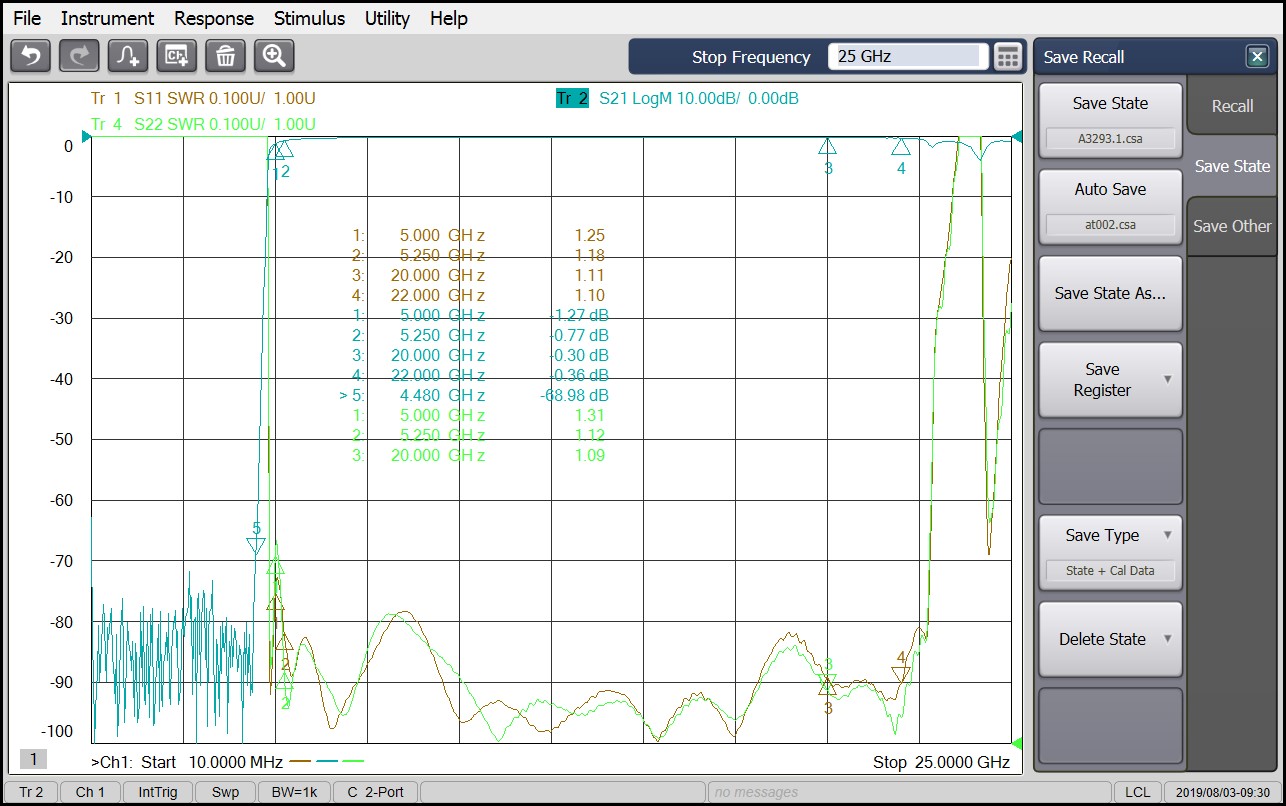

5.0 GHz to 22 GHz Rejection ≥60 dB @ DC-4.48 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.025 kg
Min. Pass Band Frequency (GHz)

5.0

Max. Pass Band Frequency (GHz)

22

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 5.0 ~5.25GHz ≤1.0dB @ 5.25 ~22GHz

VSWR

≤1.5:1 @ 5.0 ~20GHz ≤1.7:1 @ 20~22GHz

Rejection

≥60 dB @ DC-4.48 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
