6-18GHz Insertion Loss 0.70dB SMA Connector 0° Power Divider
Frequency Range: 6-18GHz
Insertion Loss: 0.70dB
Isolation: 18dB
Input/Output VSWR: 1.50
Amplitude Balance: ±0.40dB
Phase Balance: ±5°
Connector: SMA-F
Power Handling: 30W
Small size, low loss, high consistency
Applications: Electronic Warfare, Radar, Test & Measurement, Satellite Communications
- Description
- Datasheet

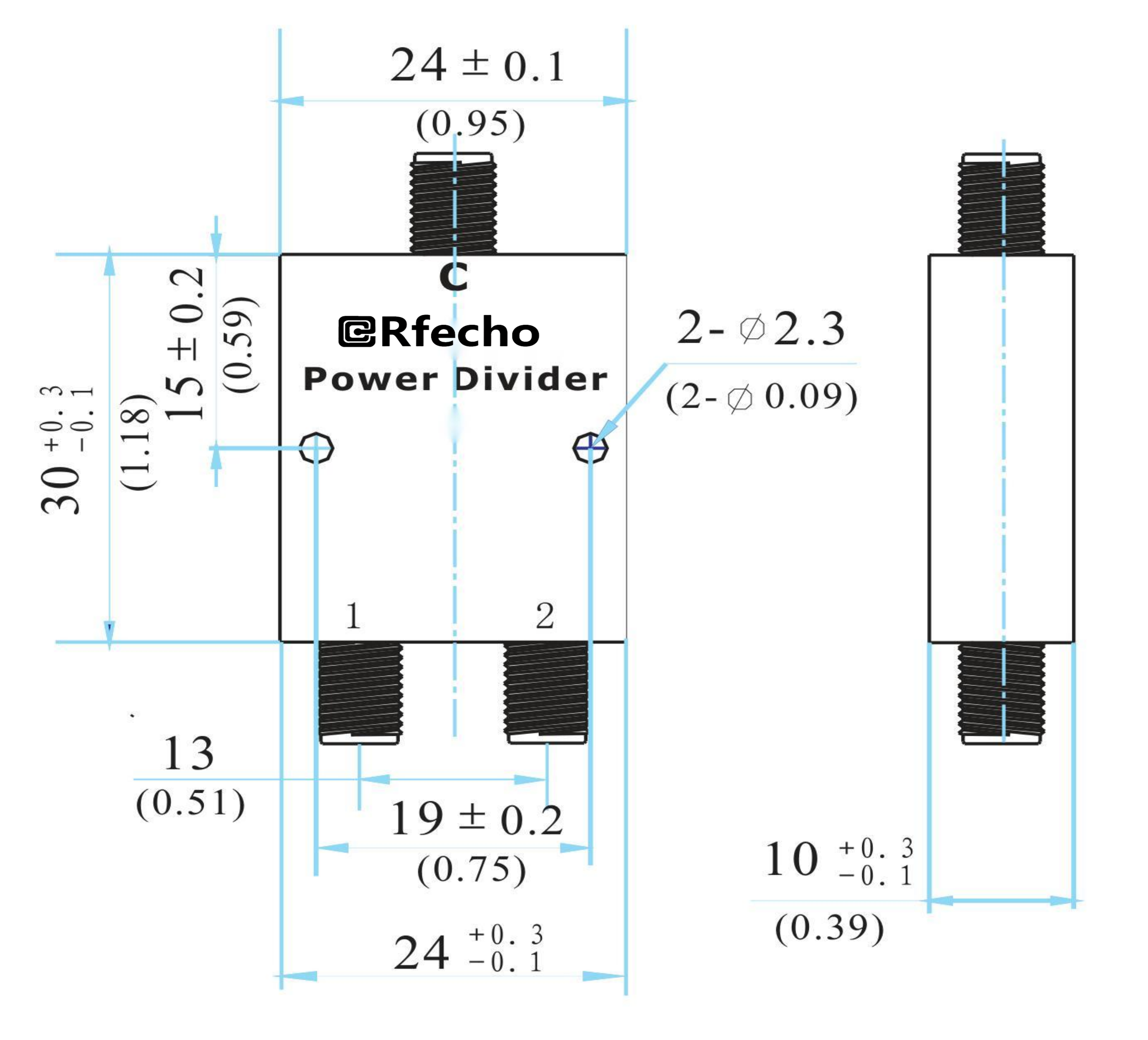

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0° SMA connectorpower dividers covering the full 0.5-18GHz range. They feature compact size, low loss, low VSWR, and high isolation.Utilizing mass production control methods, this series offershigh product quality consistency suitable for large-volumesupply. The OPD-A0234 is primarily used in systems such aselectronic warfare, radar, test and measurement, and satellite communications for the distribution and combination ofmicrowave signals.

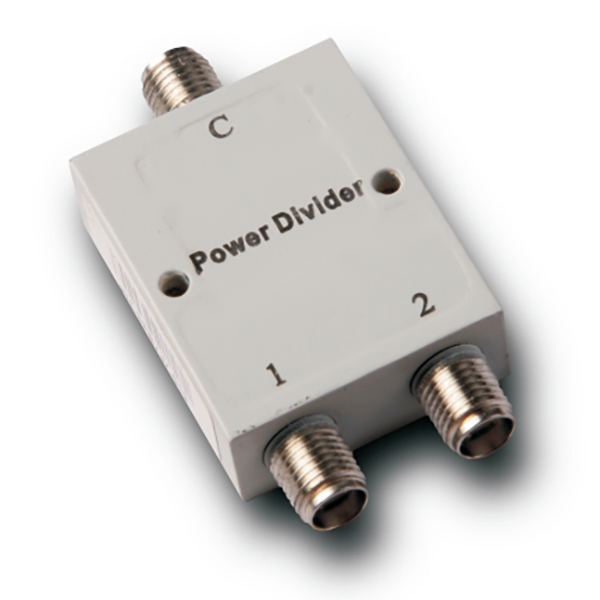

OPD-A0234 |
|
|
6-18GHz Insertion Loss 0.70dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
6-18GHz |
|
Insertion Loss |
0.70dB |
|
Isolation |
18dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±5° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.5 |
|
Output VSWR |
1.5 |
|
Compliance |
Compliant with GJB-1509-1992 test standards |
Features |
|
|
Frequency Range: 6-18GHz |
|
|
Insertion Loss: 0.70dB |
|
|
Isolation: 18dB |
|
|
Input/Output VSWR: 1.50 |
|
|
Amplitude Balance: ±0.40dB |
|
|
Phase Balance: ±5° |
|
|
Connector: SMA-F |
|
|
Power Handling: 30W |
|
|
Small size, low loss, high consistency |
|
|
Applications: Electronic Warfare, Radar, Test & Measurement, Satellite Communications |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
