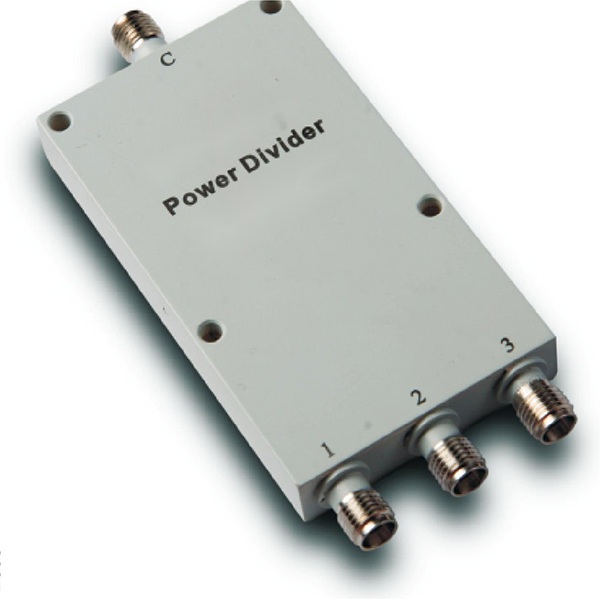

2-8GHz Insertion Loss 1.30dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Series covers 0.5-18GHz frequency range
Small size, low loss, low VSWR, high isolation
High consistency due to batch production control
Suitable for large-volume supply
Used in communication, electronic warfare, radar, navigation, test and measurement systems
Designed for 3-way microwave signal distribution and combination
Standardized product with custom design options available
- Description
- Datasheet

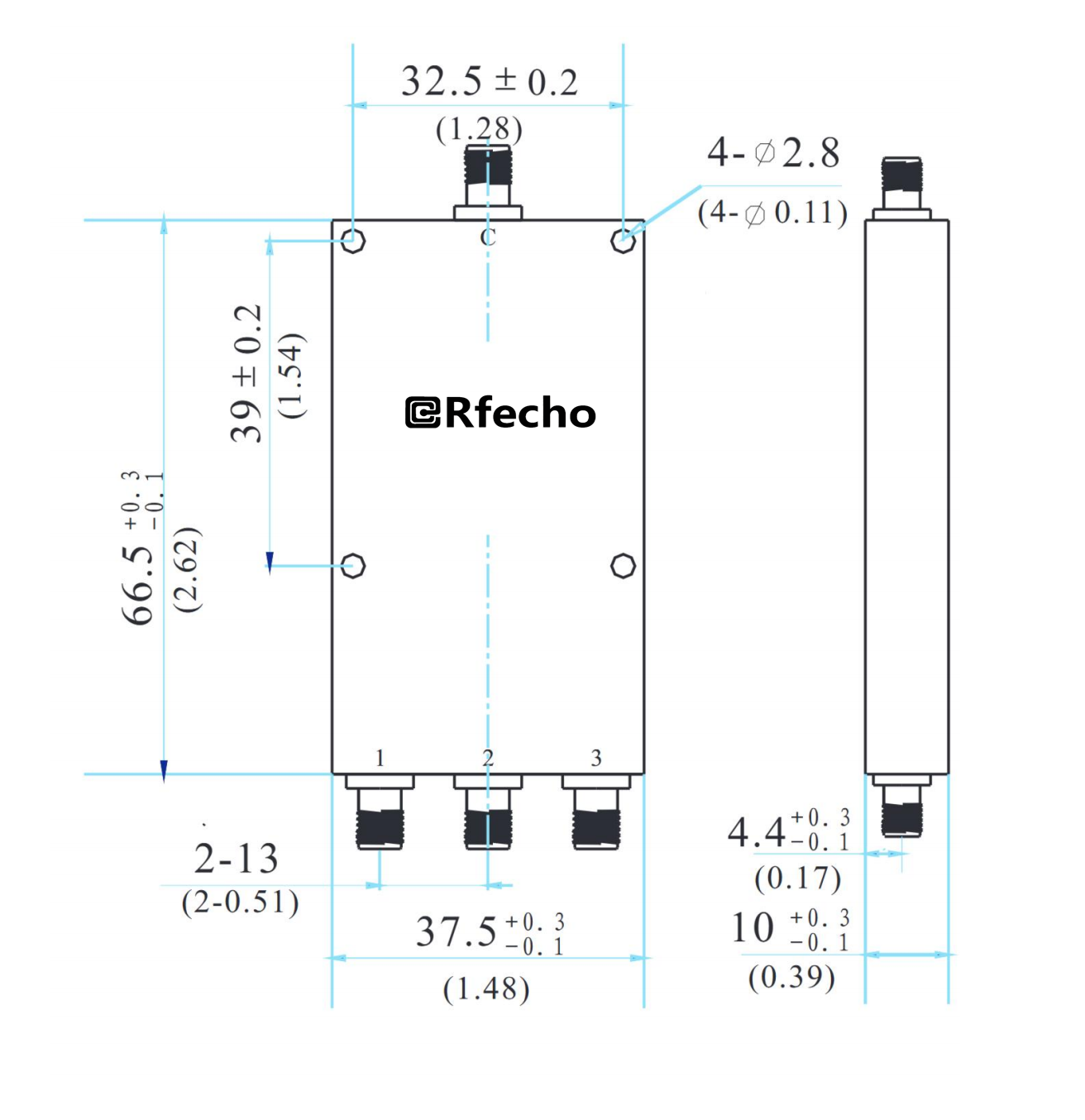

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector-based0° power dividers, with the full series covering 0.5-18GHz.Key advantages include compact size, low loss, minimalstanding wave (VSWR), and high isolation. This series utilizes batch production control methods, ensuring high prod-uct quality consistency to meet large-volume supply requirements. The OPD-A0323 is specifically designed for use incommunication, electronic warfare, radar, navigation, andtest systems for the distribution and combination of 3-waymicrowave signals. It is a standardized product, with optionsfor custom designs and other spectrum-compliant variantsavailable.
OPD-A0323 | |
| 2-8GHz Insertion Loss 1.30dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-8GHz |
| Insertion Loss | 1.30dB |
| Isolation | 18dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.80dB |
| Phase Balance | – |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.4 |
| Output VSWR | 1.3 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| SMA connector 0° power divider | |
| Series covers 0.5-18GHz frequency range | |
| Small size, low loss, low VSWR, high isolation | |
| High consistency due to batch production control | |
| Suitable for large-volume supply | |
| Used in communication, electronic warfare, radar, navigation, test and measurement systems | |
| Designed for 3-way microwave signal distribution and combination | |
| Standardized product with custom design options available | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
