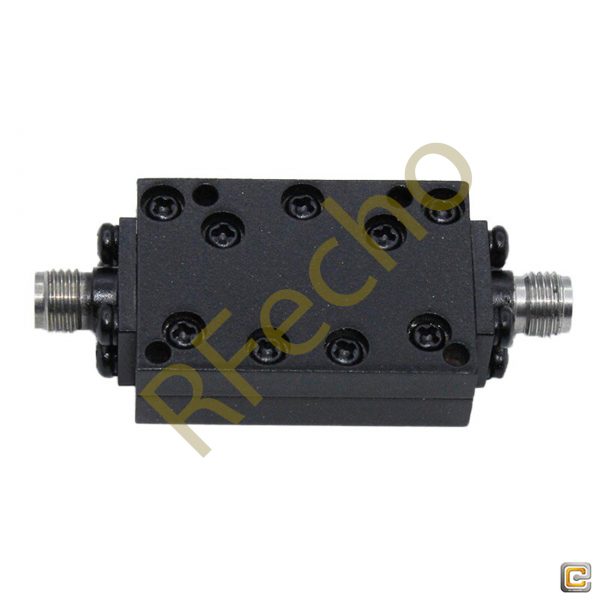

7.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.8 GHz High Pass Cavity Filter

7.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.8 GHz High Pass Cavity Filter

OHP-7000-18000:

  • Cut Off Frequency: 6.5GHz,
  • Pass Band Frequency: 7-18GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥45 dB @ DC-5.8 GHz.
SKU: OHP-7000-18000 Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

High Pass Cavity Filter (OHP) – OHP-7000-18000:

  • Cut Off Frequency: 6.5GHz,
  • Pass Band Frequency: 7-18GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥60 dB @ DC-5.8 GHz.

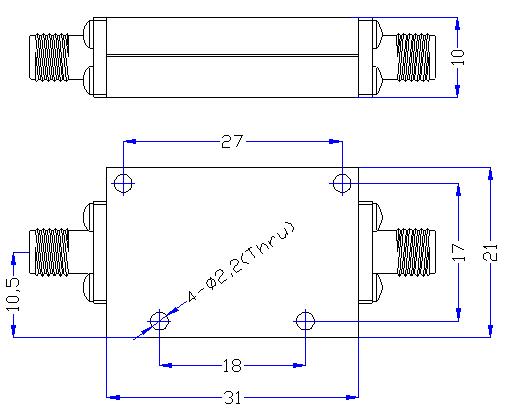

Outline

7.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.8 GHz High Pass Cavity Filter 01

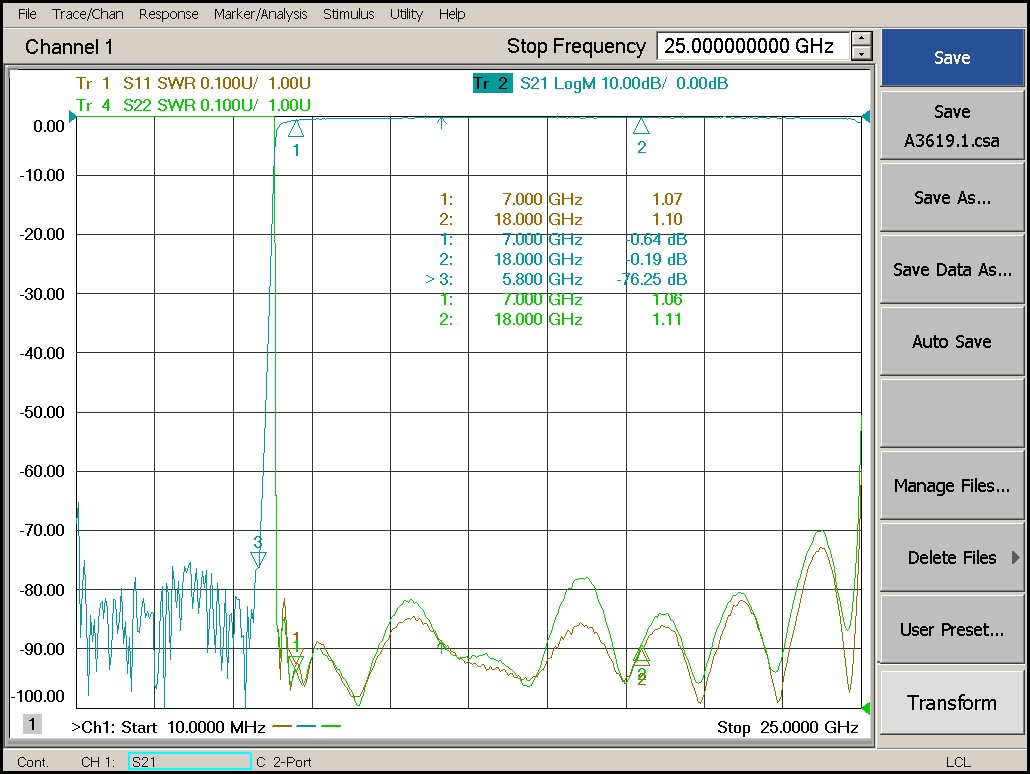

Plot

7.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.8 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.025 kg
Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≤1.5:1

Rejection

Impedance (Ω)

Surface Finish
