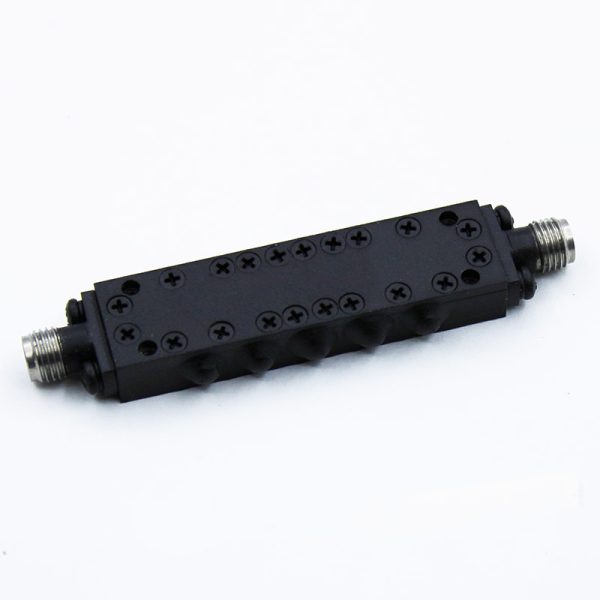

Bandpass Filter From 44~52GHz OBP-480000-8000 With SMA-Female Connectors

Bandpass Filter From 44~52GHz OBP-480000-8000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-480000-8000,its Center Frequency(F0) is 48GHz, its Pass Band Bandwidth is

Availability: Available on backorder SKU: OBP-480000-8000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-480000-8000,its Center Frequency(F0) is 48GHz, its Pass Band Bandwidth is
44~52GHz, its Pass Band Insertion Loss is≤1.0dB,PassBandVSWRand theStop Bandfrequency is≥80dB @DC~39.5GHz≥40dB @39.5~40.8GHz≥40dB @56~
60.7GHz≥80dB @60.7~65GHz

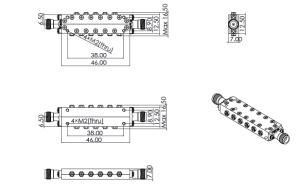

Outline

Bandpass Filter From 44~52GHz OBP-480000-8000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-230000-6000

Additional information

Center Frequency (F0) (MHz)

23000

Min. Pass Band Frequency (MHz)

20000

Max. Pass Band Frequency (MHz)

26000

Pass Band Insertion Loss (dB)

≤1.0

Impedance (Ω)

50

Power Handling (W)

≤2

Connection Type

SMA-Female

Reviews

There are no reviews yet.
