Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

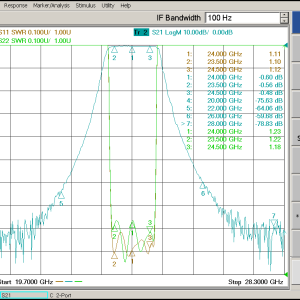

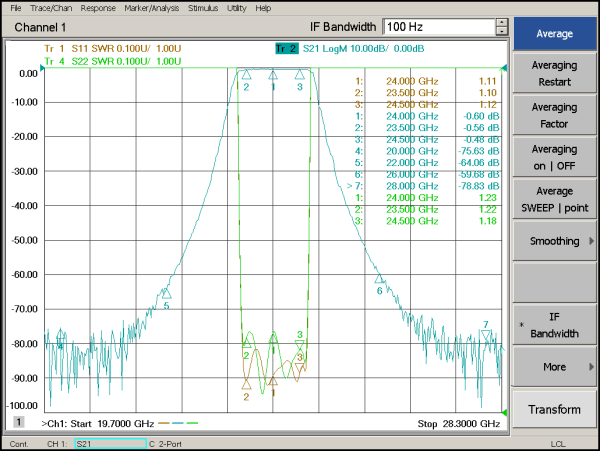

The product name of this Ocean band-pass filter (OBP) is OBP-240000-1000,its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is23.5~24.5GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥45dB@22GHz≥45dB@26GHz

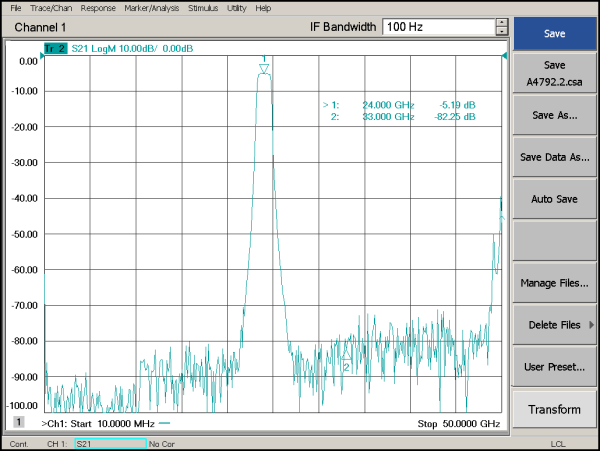

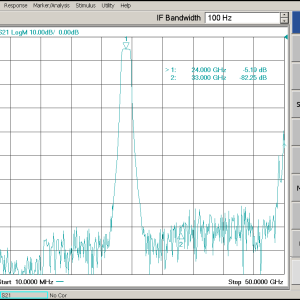

≥65dB@DC~20GHz≥65dB@28~33GHz

Availability: Available on backorder SKU: OBP-240000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-240000-1000,its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is23.5~24.5GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥45dB@22GHz≥45dB@26GHz
≥65dB@DC~20GHz≥65dB@28~33GHz

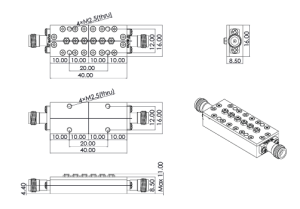

Outline



PDF

Bandpass Filter Datasheet (Click to download)



Additional information

Center Frequency (F0) (MHz)

24000

Min. Pass Band Frequency (MHz)

23500

Max. Pass Band Frequency (MHz)

24500

Pass Band Insertion Loss (dB)

≤1.0

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female
