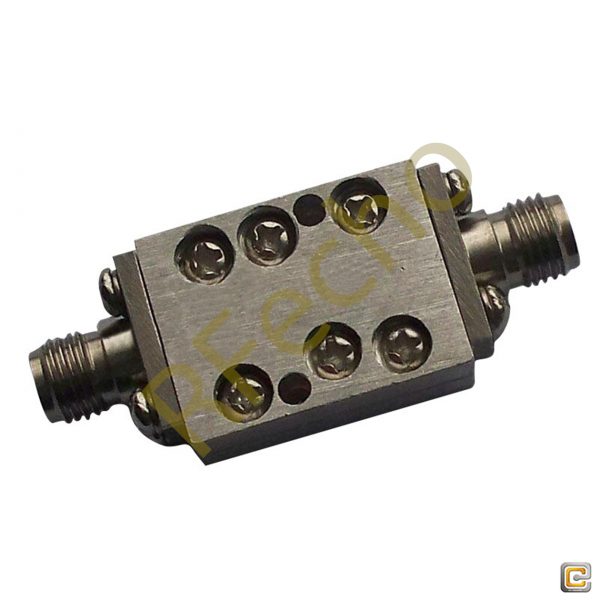

Cavity High Pass Microwave Filter model OHP: 7500-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity High Pass Microwave Filter Manufactured with a passband frequency from 7.5GHz to 18GHz and a Cut-off frequency 6GHz. Our RF High Pass Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of ≥40dB @DC- 6.0GHz. Since the high end cutoff frequency of Cavity High Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF High Pass Filter has Passband VSWR of ≤2.0:1 and Operating Temperature of 15C to 40C. Cavity High Pass Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.015Kg.
7.5GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 7.5GHz to 18GHz Cavity High Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-7500-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-7500-18000:

  • Cut Off Frequency is 6.0GHz,
  • Pass Band Frequency is 7.5-18GHz,
  • Pass Band Insertion Loss is 2.0dB,
  • Pass Band VSWR is 2.0,
  • Rejection: ≥40 dB @ DC-6 GHz

Outline

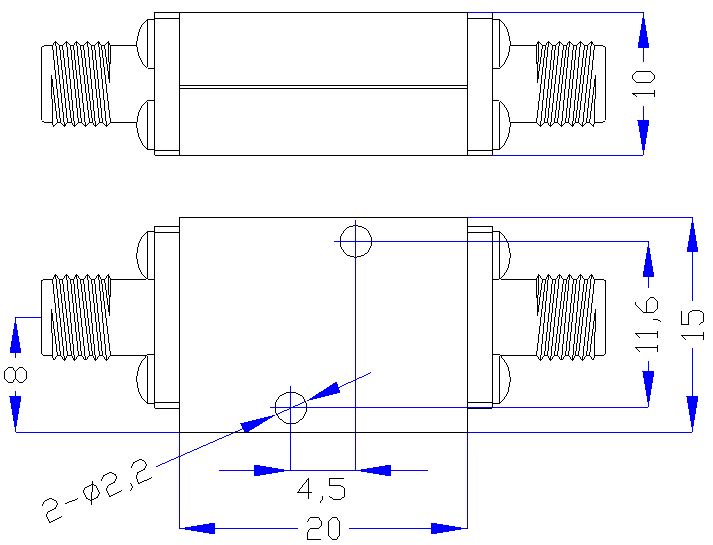

7.5 GHz to 18 GHz Rejection ≥40 dB @ DC-6 GHz High Pass Cavity Filter 01

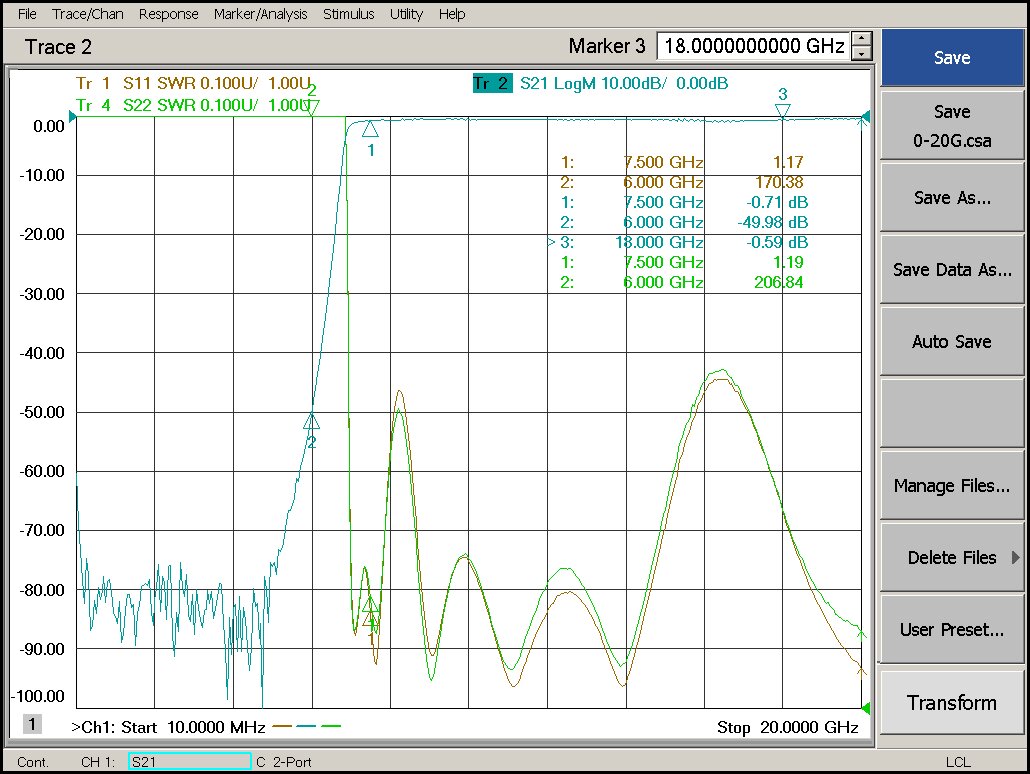

Plot

7.5 GHz to 18 GHz Rejection ≥40 dB @ DC-6 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.015 kg
Min. Pass Band Frequency (GHz)

7.5

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

NA

Insertion Loss

≤2.0dB (Type≤1.0dB)

VSWR

≤2.0:1 (Type≤1.8:1)

Rejection

≥40 dB @ DC-6 GHz

Impedance (Ω)

NA

Surface Finish

Guide Oxygen or Black Paint
