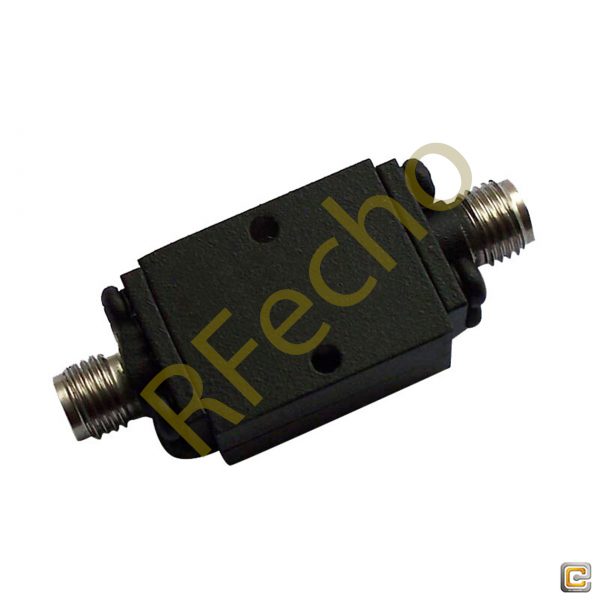

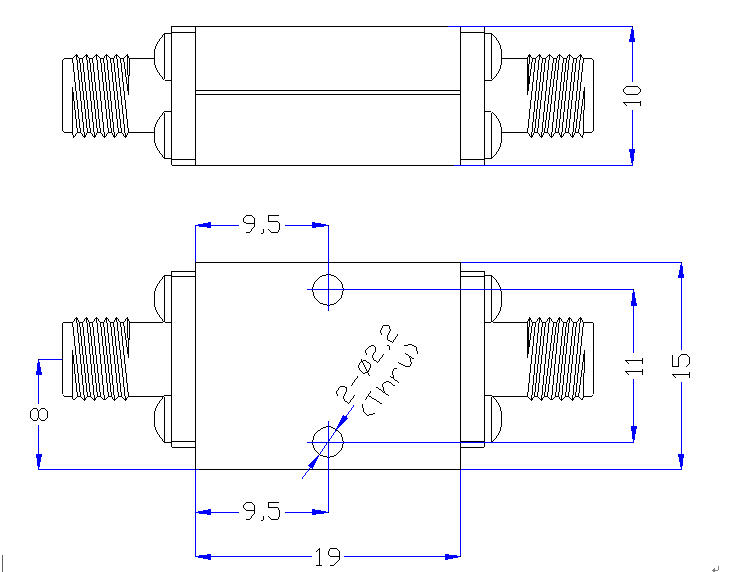

Cavity High pass RF Filter 9.0GHz to 28GHz RF High pass Cavity Filter rejection ≥ 50dB DC~7.45GHz with SMA Female Connector

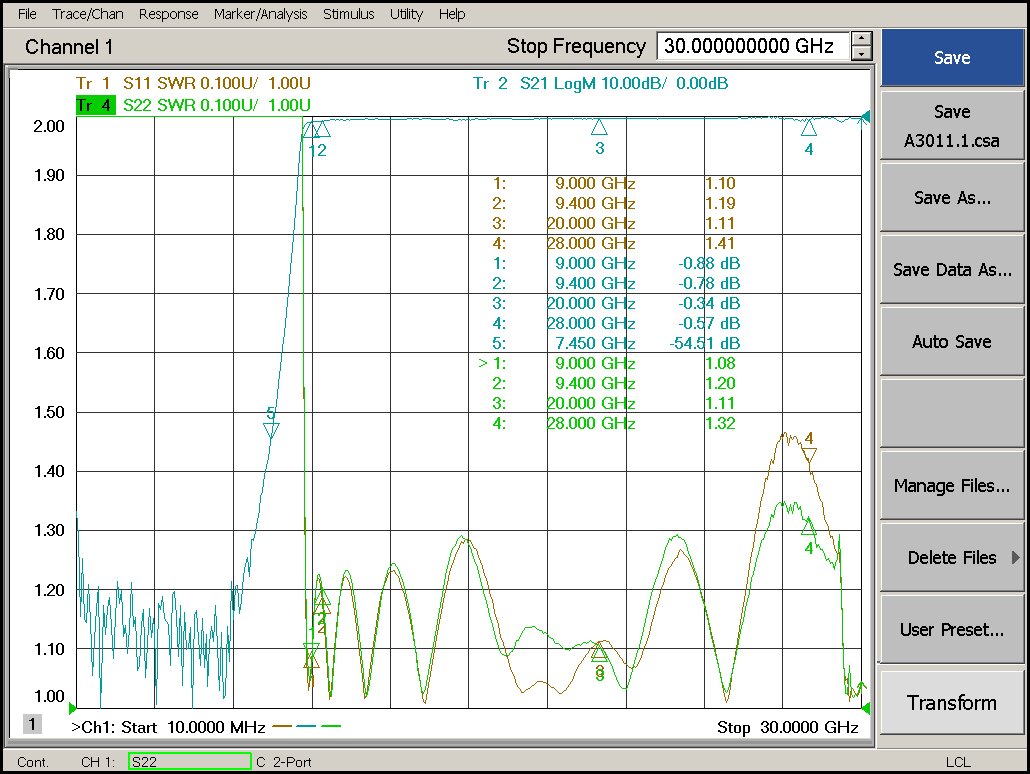

Cavity High Pass RF Filter model OHP: 9000-28000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity High Pass RF Filter Manufactured with a passband frequency from 9.0GHz to 28GHz and a Cut-off frequency 9.0GHz. Our RF High Pass Cavity Filter provides a nominal insertion loss of ≤1.5dB @ 9.0GHz to 9.4GHz | ≤1.0dB @ 9.4GHz to 28GHz across its passband and a typical rejection of ≥50dB @DC- 7.45GHz. Since the high end cutoff frequency of Cavity High Pass RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF High Pass Cavity Filter has Passband VSWR of ≤1.5:1 @ 9.0GHz – 20GHz | ≤1.8:1 @ 20GHz – 28GHz and power handling of ≤15W. Cavity High Pass RF Filter is manufactured with SMA Female Connector and Net weight of 0.01Kg.
9.0GHz to 28GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 9.0GHz to 28GHz Cavity High Pass RF Filter is ready for shipping worldwide after purchase. Additional specs of this RF High Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-9000-28000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-9000-28000:

  • Cut Off Frequency: 9.0GHz,
  • Pass Band Frequency: 9-28GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≤1.5:1 @ 9.0-20 GHz.

Additional information

Weight 0.01 kg
Min. Pass Band Frequency (GHz)

9

Max. Pass Band Frequency (GHz)

28

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB @ 9.0~9.4GHz ≤1.0dB @ 9.4~28GHz

VSWR

≤1.5:1 @ 9.0~20GHz ≤1.8:1 @ 20~28GHz

Rejection

≤1.5:1 @ 9.0-20 GHz ≤1.8:1 @ 20-28 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
