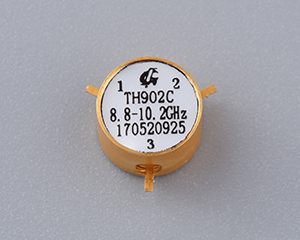

9 GHz to 11 GHz, 0.5 dB Insertion Loss, 20 dB Isolation, SMD Series Isolator-TH902C
SMD Series isolator with 9-11 GHz frequency range, 0.5 dB insertion loss, 20 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The TH902C is a high-performance smd series designed for RF and microwave applications. It operates in the frequency range of 9-11 GHz with 0.5 dB maximum insertion loss and 20 dB minimum isolation.
TH902C |
|
|
9 GHz to 11 GHz, 0.5 dB Insertion Loss, 20 dB Isolation, SMD Series Isolator-TH902C |
|
Property |
Value |
|
Frequency (GHz) |
9-11 |
|
Bandwidth |
10% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.5 |
|
VSWR |
1.25 |
|
IMD3 (dBc) |
|
|
Power (W) |
|
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
SMD |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
surface-mount |
Features |
|
|
Frequency Range: 9-11 GHz |
|
|
Insertion Loss: 0.5 dB Max |
|
|
Isolation: 20 dB Min |
|
|
VSWR: 1.25 Max |
|
|
Power: / W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
