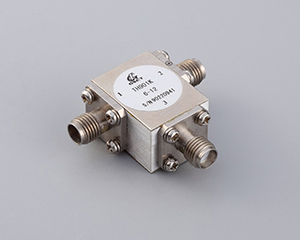

6 GHz to 12 GHz, 0.6 dB Insertion Loss, 16 dB Isolation, SMA Coaxial Series Isolator-TH901K
Coaxial Series isolator with 6-12 GHz frequency range, 0.4 dB insertion loss, 23 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The TH901K is a high-performance coaxial series designed for RF and microwave applications. It operates in the frequency range of 6-12 GHz with 0.4 dB maximum insertion loss and 23 dB minimum isolation.
TH901K | |
| 6 GHz to 12 GHz, 0.6 dB Insertion Loss, 16 dB Isolation, SMA Coaxial Series Isolator-TH901K | |
Property | Value |
| Frequency (GHz) | 6-12 |
| Bandwidth | 10% |
| Return Loss (dB) |
|
| Isolation (dB) | 23 |
| Insertion Loss (dB) | 0.4 |
| VSWR | 1.2 |
| IMD3 (dBc) |
|
| Power (W) |
|
| Reverse Power (W) |
|
| Peak Power |
|
| Power note |
|
| Connector | SMA |
| Impedance(Ohm) | 50 |
| Size |
|
| Operating Temp (degC) | -40 to 85 |
| Structure | connectorized |
Features | |
| Frequency Range: 6-12 GHz | |
| Insertion Loss: 0.4 dB Max | |
| Isolation: 23 dB Min | |
| VSWR: 1.2 Max | |
| Power: / W | |
Applications | |
| Wireless communication, Radar systems, Test and measurement equipment | |
