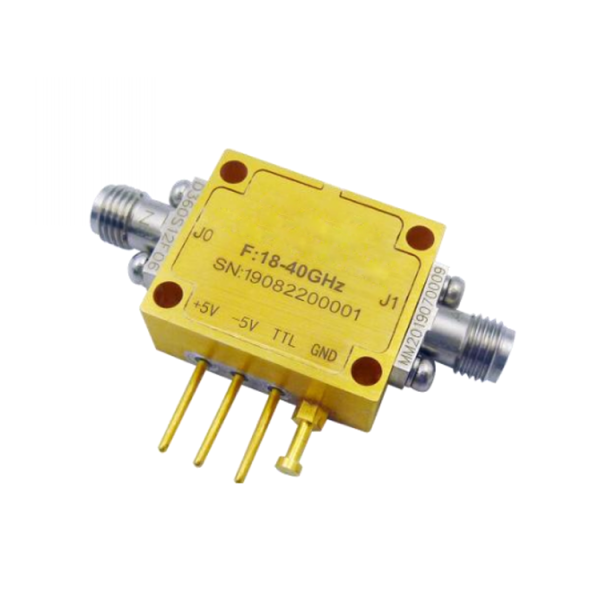

Absorptive Coaxial SPST Switch from 18GHz to 40GHz .OSA0118004000A

HOT

Absorptive Coaxial SPST Switch from 18GHz to 40GHz .OSA0118004000A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 18GHz to 40GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0118004000A Categories: Routing, SPST, Switch

Description



PDF

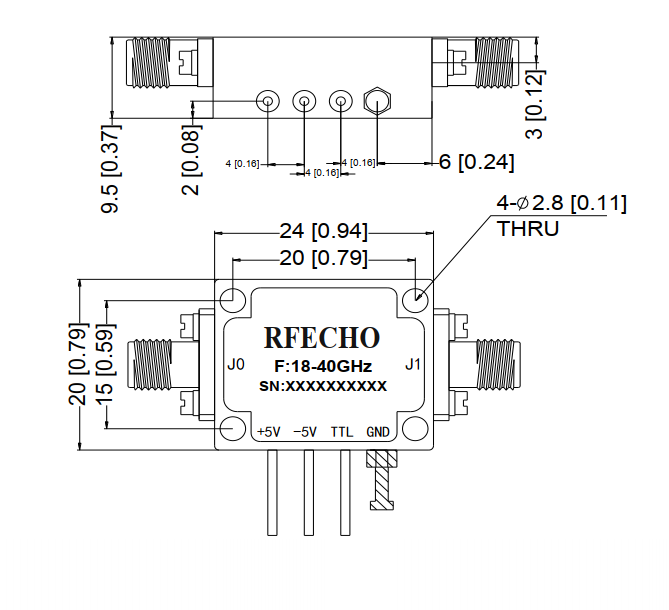

Outline



Absorptive Coaxial   SPST Switch from 18GHz to 40GHz .OSA0118004000A

text



Absorptive Coaxial   SPST Switch from 18GHz to 40GHz .OSA0118004000AAbsorptive Coaxial   SPST Switch from 18GHz to 40GHz .OSA0118004000AAbsorptive Coaxial   SPST Switch from 18GHz to 40GHz .OSA0118004000A





Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

40

VSWR (Max.)

2.5

Switch Type

SPST

RF Input Power (W)

0.5

Insertion Loss (dB)

4.5
