Absorptive Coaxial SPST Switch from 2GHz to 18GHz .OSR0102001800A

HOT

Absorptive Coaxial SPST Switch from 2GHz to 18GHz .OSR0102001800A

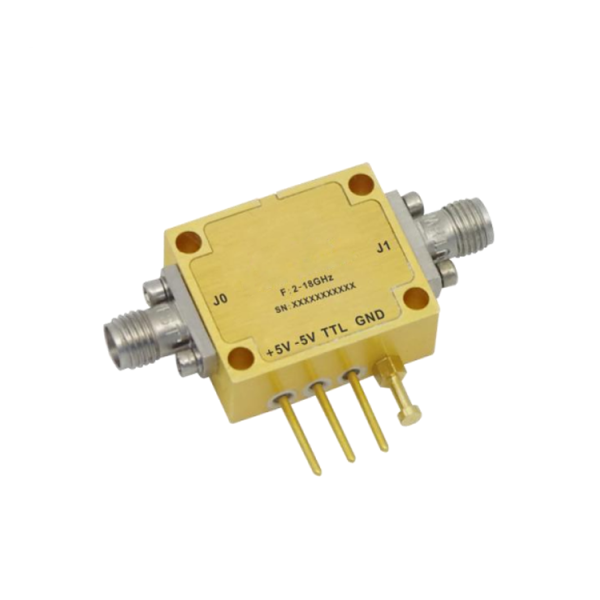

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0102001800A Categories: Routing, SPST, Switch

Description



PDF

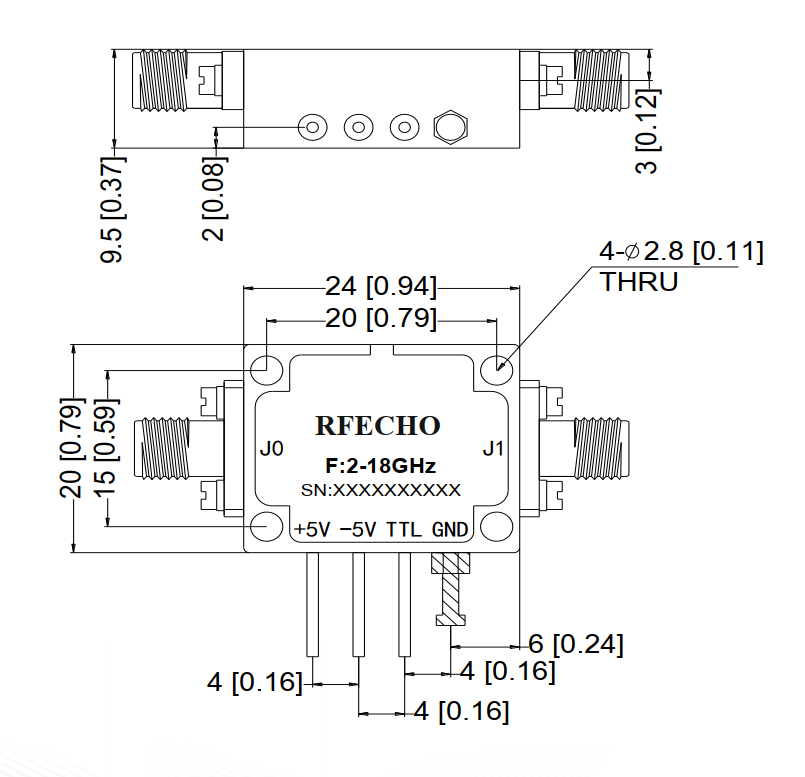

Outline



text







Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

18

VSWR (Max.)

1.8

Switch Type

SPST

RF Input Power (W)

1

Insertion Loss (dB)

2
