Band pass Filter From 1.0GHz (38.5 ~39.5GHz) OBP-390000-1000 With SMA-Female Connectors

Band pass Filter From 1.0GHz (38.5 ~39.5GHz) OBP-390000-1000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-390000-1000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Band width is 1.0GHz (38.5 ~39.5GHz), it’s PassBand Insertion Loss is ≤2.5dB. It’s Stop Band frequency is≥50dB @DC~38.2GHz ≥50dB @ 39.8~58.5GHz.





Availability: Available on backorder SKU: OBP-390000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-390000-1000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Band width is 1.0GHz (38.5 ~39.5GHz), it’s PassBand Insertion Loss is ≤2.5dB. It’s Stop Band frequency is≥50dB @DC~38.2GHz ≥50dB @ 39.8~58.5GHz.

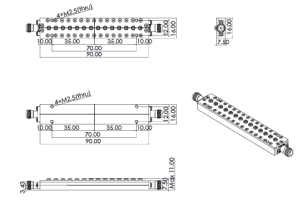

Outline

Band pass Filter From 1.0GHz (38.5 ~39.5GHz) OBP-390000-1000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-390000-1000

Additional information

Center Frequency (F0) (MHz)

39000

Min. Pass Band Frequency (MHz)

38500

Max. Pass Band Frequency (MHz)

39500

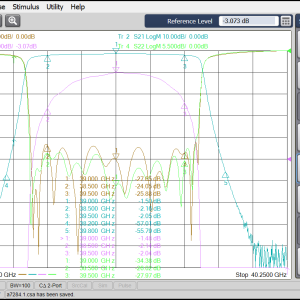

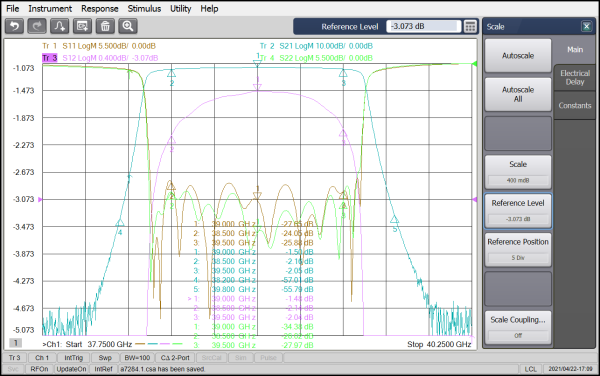

Pass Band Insertion Loss (dB)

≤2.5 ≤0.8 ≥18

Stop Band Rejection

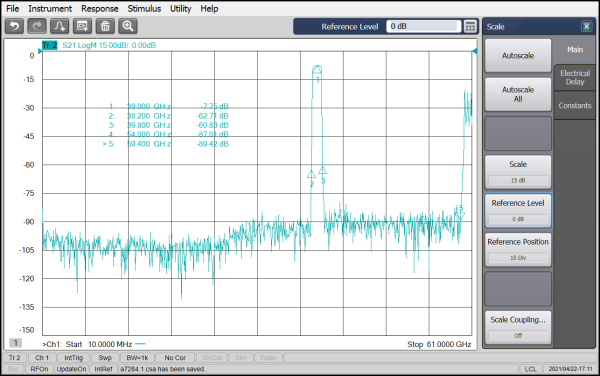

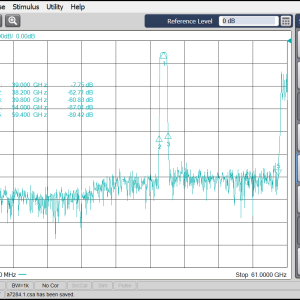

≥50dB @ DC ~ 38.2GHz ≥50dB @ 39.8 ~ 58.5GHz

Impedance (Ω)

50

Power Handling (W)

≥10

Connection Type

2.92mm(K)-Female
