Band Pass Filter From 17.5~21.3GHz OBP-19400-3800 With 2.92mm-Female Connectors

Band Pass Filter From 17.5~21.3GHz OBP-19400-3800 With 2.92mm-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-19400-3800,its Center Frequency(F0) is 19.4GHz, its Pass Band Bandwidth is 17.5~21.3GHz ,its Pass Band Insertion Loss is ≤2.0dB, Pass Band VSWR is ≤1.8:1 and the Stop Band frequency is ≥45dB@16.8GHz≥50dB @22.4GHz ≥70dB @15.6GHz≥70dB @24GHz.

Availability: Available on backorder SKU: OBP-19400-3800 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-19400-3800,its Center Frequency(F0) is 19.4GHz, its Pass Band Bandwidth is 17.5~21.3GHz ,its Pass Band Insertion Loss is ≤2.0dB, Pass Band VSWR is ≤1.8:1 and the Stop Band frequency is ≥45dB@16.8GHz≥50dB @22.4GHz ≥70dB @15.6GHz≥70dB @24GHz.

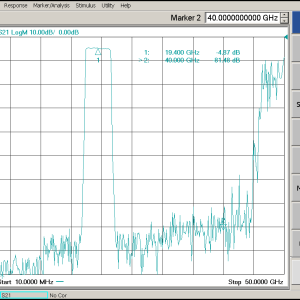

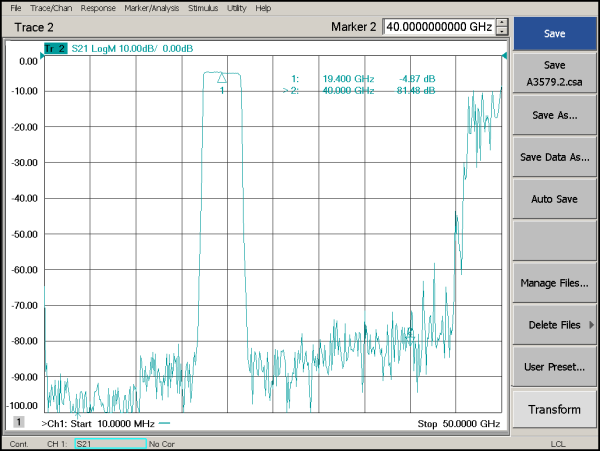

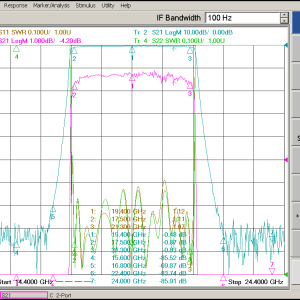

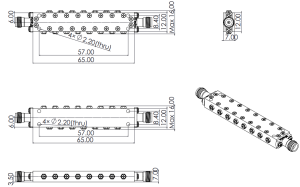

Outline

Band Pass Filter From 17.5~21.3GHz  OBP-19400-3800 With 2.92mm-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

19400

Min. Pass Band Frequency (MHz)

17500

Max. Pass Band Frequency (MHz)

21300

Pass Band Insertion Loss (dB)

≤2.0dB

Stop Band Rejection

≥45dB @ 16.8GHz ≥50dB @ 22.4GHz ≥70dB @ 15.6GHz ≥70dB @ 24GHz

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

2.92-Female
