Band Pass Filter From 21~22GHz OBP-21500-1000 With SMA-Female Connectors

Band Pass Filter From 21~22GHz OBP-21500-1000 With SMA-Female Connectors

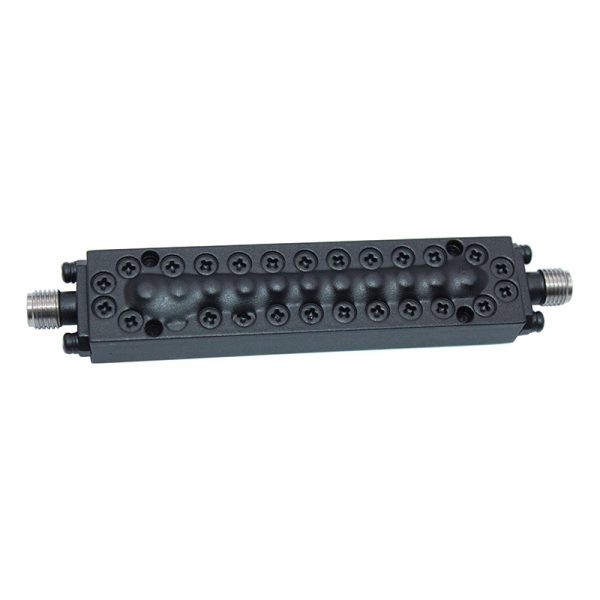

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

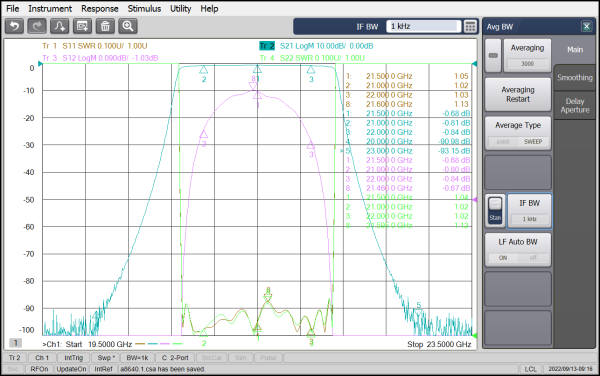

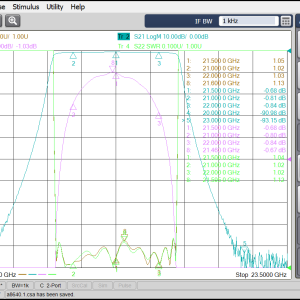

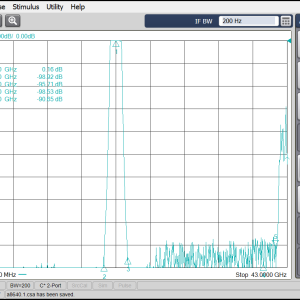

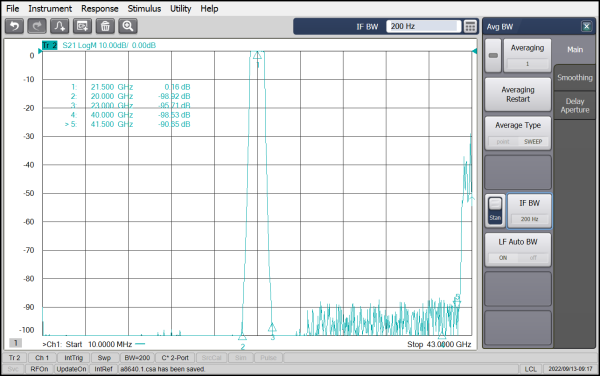

The product name of this Ocean band-pass filter (OBP) is OBP-21500-1000, its Center Frequency(F0) is 21.5GHz, its Pass Band Bandwidth is 21~22GHz ,its Pass Band Insertion Loss is ≤1.0dB, PassBand VSWR is ≤1.22:1 ,and the Stop Band frequency is≥80dB @DC~20GHz ≥80dB @23~40GHz.

Availability: Available on backorder SKU: OBP-21500-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-21500-1000, its Center Frequency(F0) is 21.5GHz, its Pass Band Bandwidth is 21~22GHz ,its Pass Band Insertion Loss is ≤1.0dB, PassBand VSWR is ≤1.22:1 ,and the Stop Band frequency is≥80dB @DC~20GHz ≥80dB @23~40GHz.

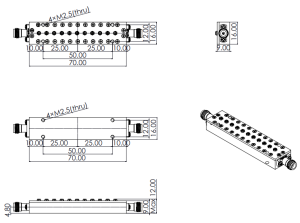

Outline

Band Pass Filter From 21~22GHz  OBP-21500-1000 With SMA-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

21500

Min. Pass Band Frequency (MHz)

21000

Max. Pass Band Frequency (MHz)

22000

Pass Band Insertion Loss (dB)

≤1.0dB ≤0.25dB

Stop Band Rejection

≥80dB @ DC ~ 20GHz ≥80dB @ 23 ~ 40GHz

Impedance (Ω)

50

Power Handling (W)

5.0W Max.

Connection Type

SMA-Female
