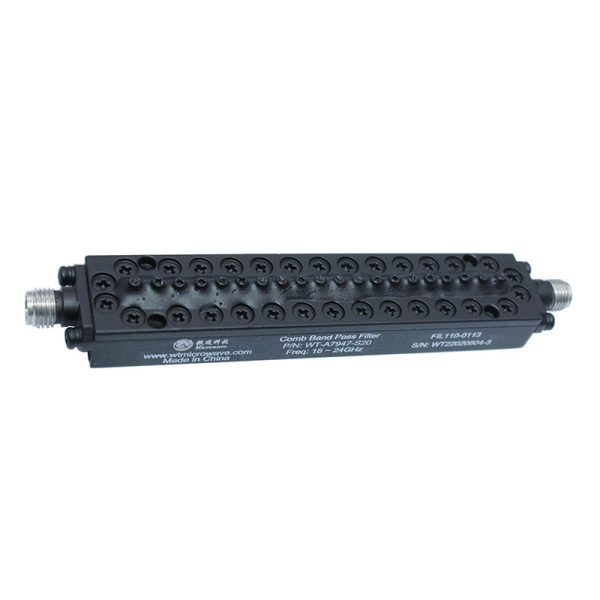

Band Pass Filter From 18~24GHz OBP-21000-6000 With 2.92mm(K)-Female Connectors

Band Pass Filter From 18~24GHz OBP-21000-6000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-21000-6000, its Center Frequency(F0) is 21GHz, its Pass Band Bandwidth is 18~24GHz ,its Pass Band Insertion Loss is ≤1.1dB, Pass Band VSWR is ,and the Stop Band frequency is≥80dB @DC~16.5GHz ≥80dB @24.9~35GHz.

Availability: Available on backorder SKU: OBP-21000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-21000-6000, its Center Frequency(F0) is 21GHz, its Pass Band Bandwidth is 18~24GHz ,its Pass Band Insertion Loss is ≤1.1dB, Pass Band VSWR is ,and the Stop Band frequency is≥80dB @DC~16.5GHz ≥80dB @24.9~35GHz.

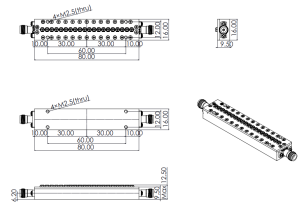

Outline

Band Pass Filter From 18~24GHz  OBP-21000-6000 With 2.92mm(K)-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

21000

Min. Pass Band Frequency (MHz)

18000

Max. Pass Band Frequency (MHz)

24000

Pass Band Insertion Loss (dB)

≤1.1dB ≤0.6dB ≥18dB

Stop Band Rejection

≥80dB @ DC ~ 16.5GHz ≥80dB @ 24.9 ~ 35GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
