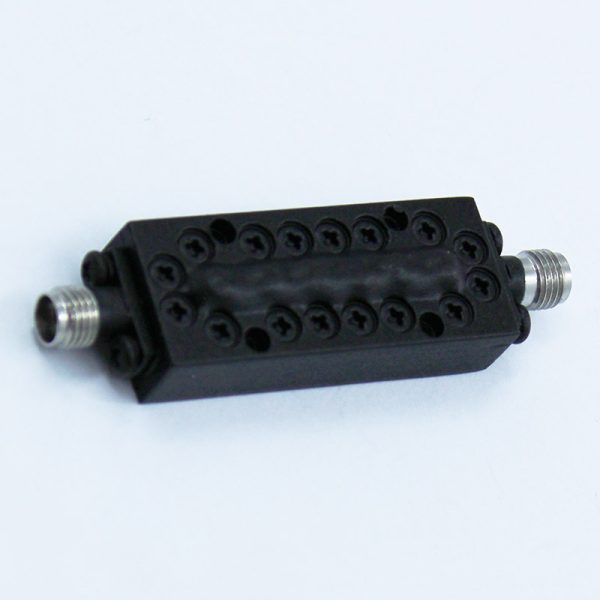

Band Pass Filter From 23.5~24.5GHz OBP-24000-1000 With SMA-Female Connectors

Band Pass Filter From 23.5~24.5GHz OBP-24000-1000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24000-1000, its Center Frequency(F0) is24GHz, its Pass Band Bandwidth is 23.5~24.5GHz, its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ≤1.3:1, and the Stop Band frequency is ≥45dB@22GHz≥45dB@26GHz≥65dB@DC~20GHz≥65dB@28~33GHz.

Availability: Available on backorder SKU: OBP-23000-6000-1 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24000-1000, its Center Frequency(F0) is24GHz, its Pass Band Bandwidth is 23.5~24.5GHz, its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ≤1.3:1, and the Stop Band frequency is ≥45dB@22GHz≥45dB@26GHz≥65dB@DC~20GHz≥65dB@28~33GHz.

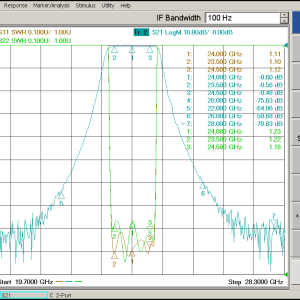

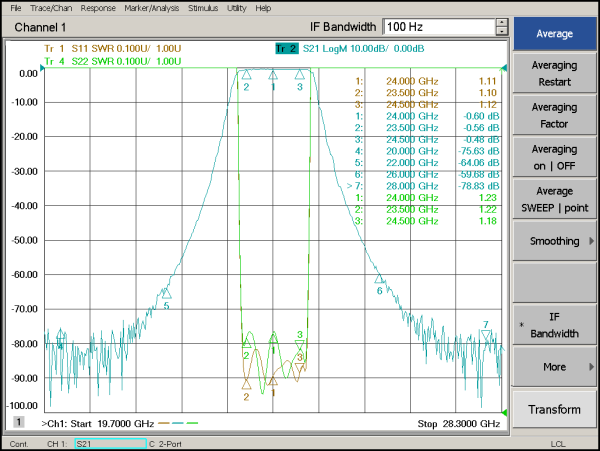

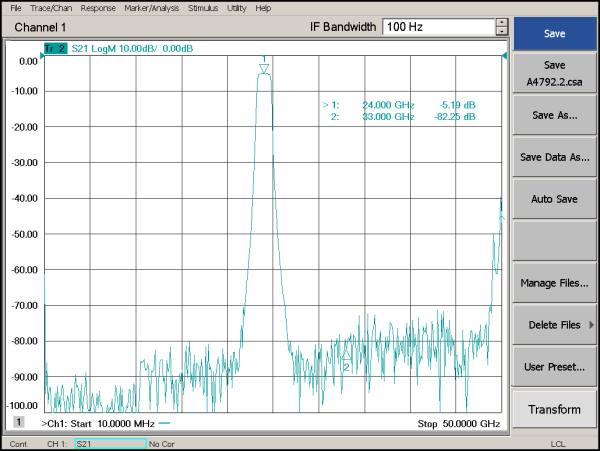

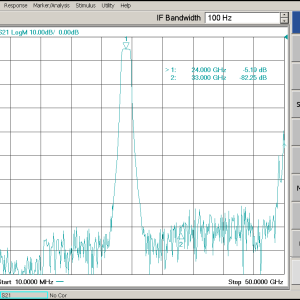

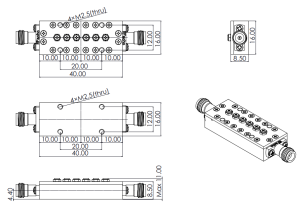

Outline

Band Pass Filter From  23.5~24.5GHz OBP-24000-1000 With SMA-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

24000

Min. Pass Band Frequency (MHz)

23500

Max. Pass Band Frequency (MHz)

24500

Pass Band Insertion Loss (dB)

≤1.0dB

Stop Band Rejection

≥45dB @ 22GHz ≥45dB @ 26GHz ≥65dB @ DC~20GHz ≥65dB @ 28~33GHz

Impedance (Ω)

50

Power Handling (W)

≤5W

Connection Type

SMA-Female
