Band Pass Filter From 23~25GHz OBP-24000-2000 With SMA-Female Connectors

Band Pass Filter From 23~25GHz OBP-24000-2000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

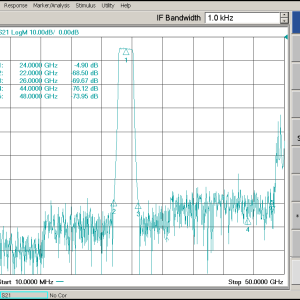

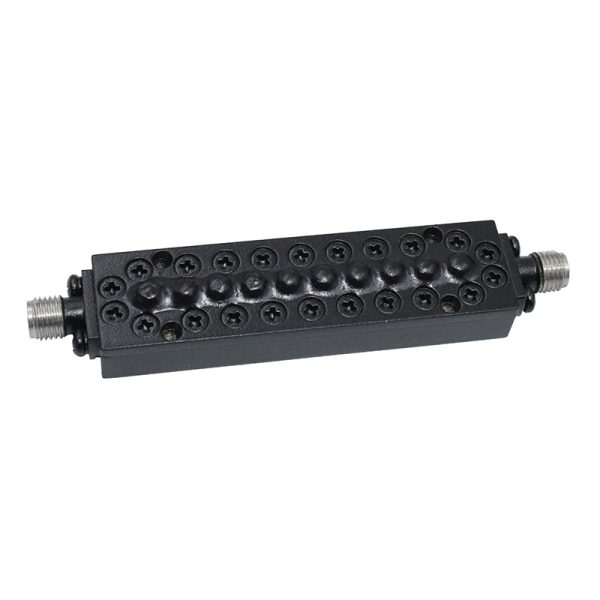

The product name of this Ocean band-pass filter (OBP) is OBP-24000-2000, its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is 23~25GHz, its Pass Band Insertion Loss is ≤0.9dB, Pass Band VSWRis ≤1.22:1, and the Stop Band frequency is ≥55dB @DC~22GHz ≥55dB @26~47GHz.

Availability: Available on backorder SKU: OBP-24000-2000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24000-2000, its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is 23~25GHz, its Pass Band Insertion Loss is ≤0.9dB, Pass Band VSWRis ≤1.22:1, and the Stop Band frequency is ≥55dB @DC~22GHz ≥55dB @26~47GHz.

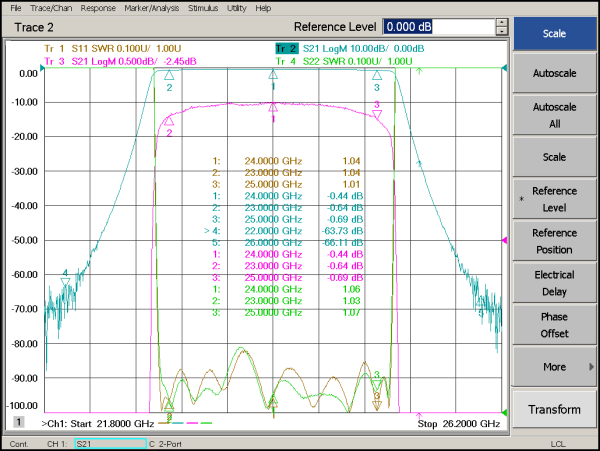

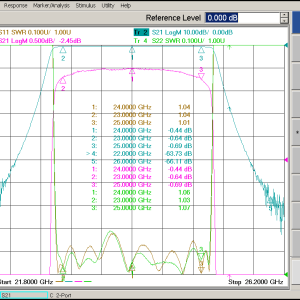

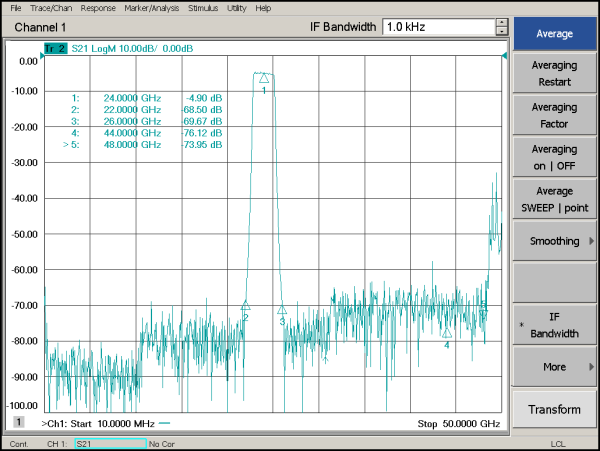

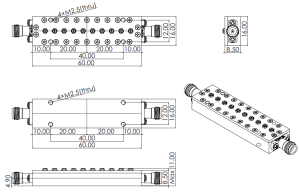

Outline

Band Pass Filter From  23~25GHz OBP-24000-2000 With SMA-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

24000

Min. Pass Band Frequency (MHz)

23000

Max. Pass Band Frequency (MHz)

25000

Pass Band Insertion Loss (dB)

≤0.9dB ≤0.4dB

Stop Band Rejection

≥55dB @ DC ~ 22GHz ≥55dB @ 26 ~ 47GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

SMA-Female
