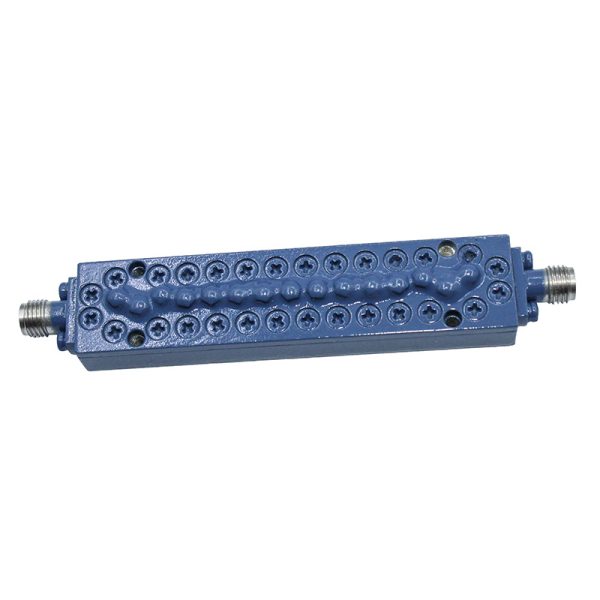

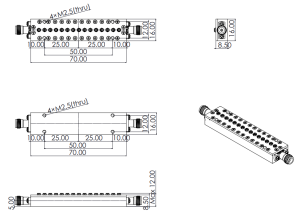

Band Pass Filter From 21~27GHz OBP-24000-6000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24000-6000, its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is 21~27GHz, its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is, and the Stop Band frequency is≥60dB @DC~20GHz ≥55dB @28~46.5GHz.

Availability: Available on backorder SKU: OBP-24000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24000-6000, its Center Frequency(F0) is 24GHz, its Pass Band Bandwidth is 21~27GHz, its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is, and the Stop Band frequency is≥60dB @DC~20GHz ≥55dB @28~46.5GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

24000

Min. Pass Band Frequency (MHz)

21000

Max. Pass Band Frequency (MHz)

27000

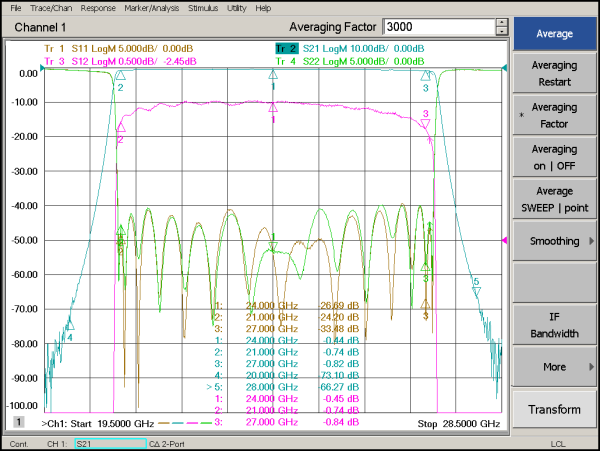

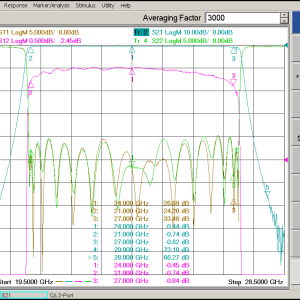

Pass Band Insertion Loss (dB)

≤1.0dB ≤0.5dB ≥17dB

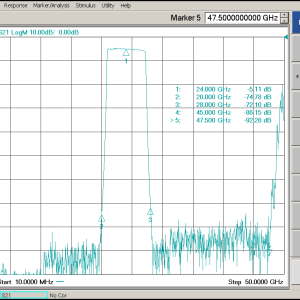

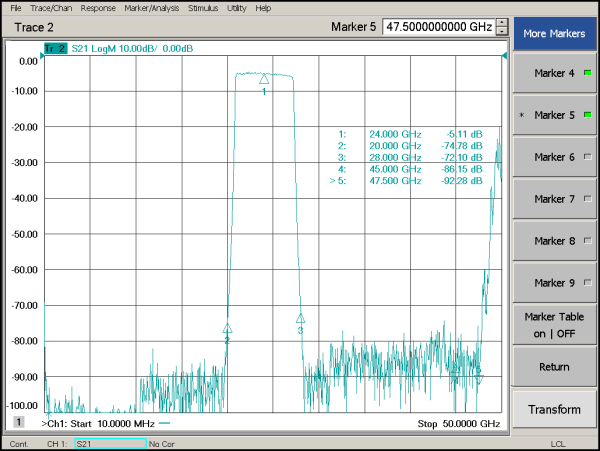

Stop Band Rejection

≥60dB @ DC ~ 20GHz ≥55dB @ 28 ~ 46.5GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
