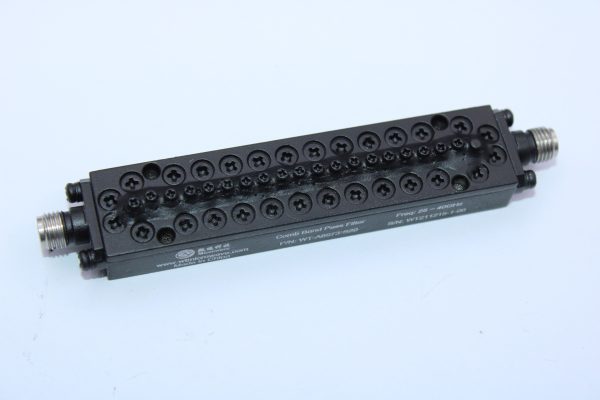

Band Pass Filter From 25~40GHz OBP-32500-15000 With 2.92mm(K)-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32500-15000, it’s Center Frequency (FO) is 33GHz, it’s Pass Band Bandwidth is 25~40GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~22.8GHz≥40dB @22.8~24GHz ≥30dB @41~41.4GHz≥40dB @41.4~46GHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32500-15000, it’s Center Frequency (FO) is 33GHz, it’s Pass Band Bandwidth is 25~40GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~22.8GHz≥40dB @22.8~24GHz ≥30dB @41~41.4GHz≥40dB @41.4~46GHz.

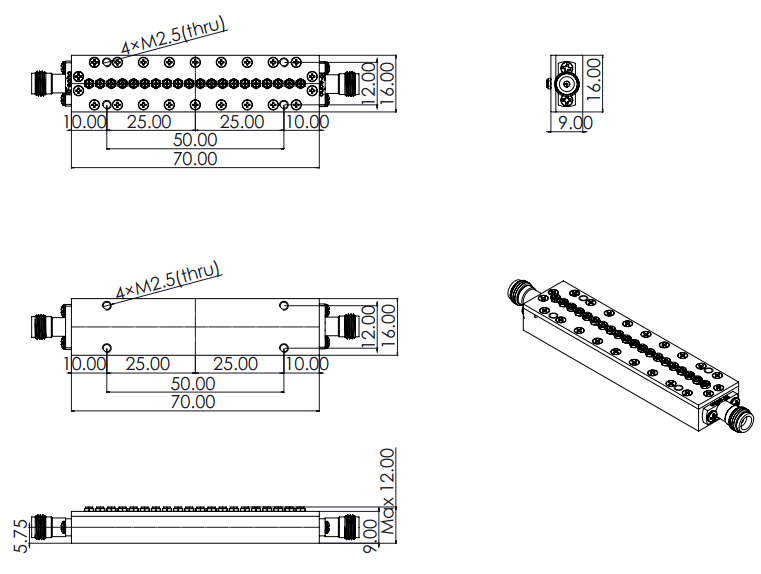

Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 70 × 16 × 9 cm |
| Center Frequency (F0) (MHz) | |
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | ≥80dB @DC~22.8GHz≥40dB @22.8~24GHz≥30dB @41~41.4GHz≥40dB @41.4~46GHz. |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
