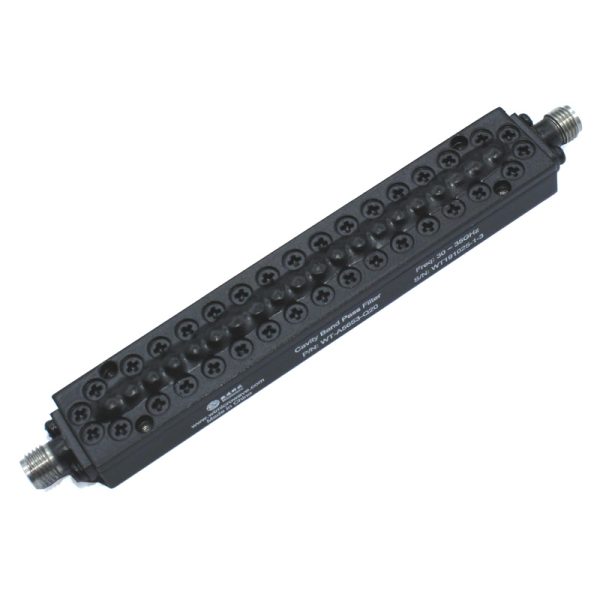

Band Pass Filter From 30~35GHz OBP-32500-5000 With 2.92mm(K)-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32500-5000, it’s Center Frequency (FO) is 32.5GHz, it’s Pass Band Bandwidth is 30~35GHz, it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is ≥15dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC ~29GHz≥80dB@36~47GHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32500-5000, it’s Center Frequency (FO) is 32.5GHz, it’s Pass Band Bandwidth is 30~35GHz, it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is ≥15dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC~29GHz ≥80dB@36~47GHz.

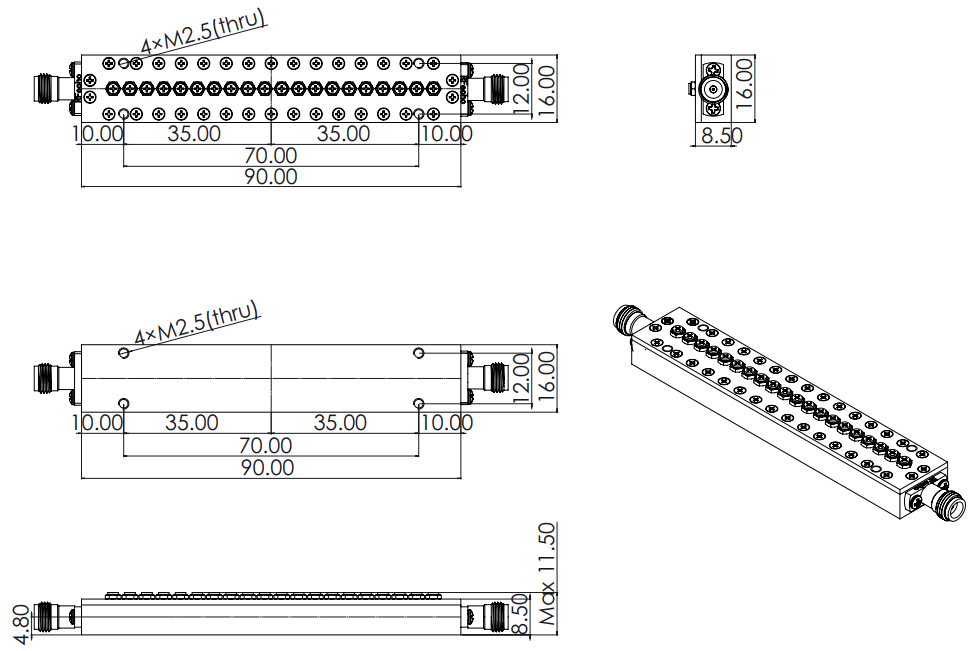

Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Weight | 0.085 kg |
|---|---|
| Dimensions | 70 × 16 × 8.5 cm |
| Center Frequency (F0) (MHz) | |
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
