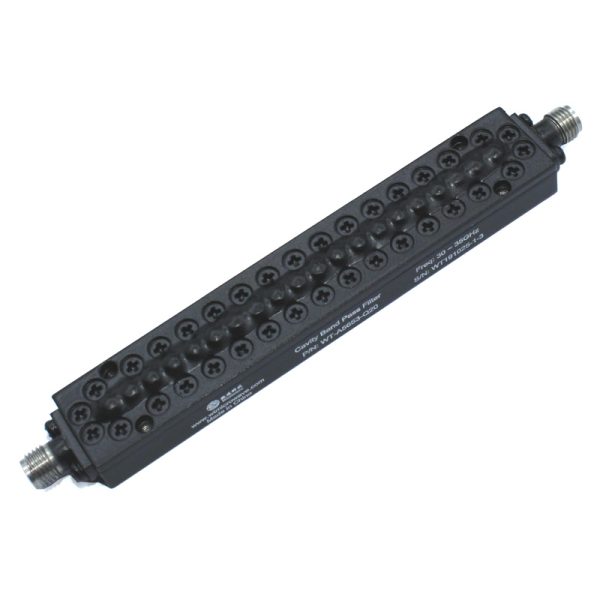

Band pass Filter From 30 ~ 35GHz OBP-325000-5000 With SMA-Female Connectors

Band pass Filter From 30 ~ 35GHz OBP-325000-5000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-325000-5000,it’s Center Frequency(F0) is 32.5GHz , it’s Pass Band Bandwidth is 30 ~ 35GHz, it’s PassBand Insertion Loss is ≤2.0dB. Its Stop Bandfrequency is ≥80dB @ DC ~ 29GHz≥80dB @ 36 ~ 47GHz.

Availability: Available on backorder SKU: OBP-325000-5000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-325000-5000,it’s Center Frequency(F0) is 32.5GHz , it’s Pass Band Bandwidth is 30 ~ 35GHz, it’s PassBand Insertion Loss is ≤2.0dB. Its Stop Bandfrequency is ≥80dB @ DC ~ 29GHz≥80dB @ 36 ~ 47GHz.

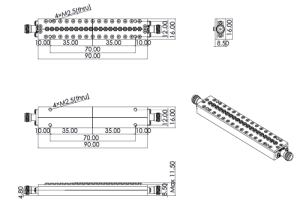

Outline

Band pass Filter From 30 ~ 35GHz OBP-325000-5000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-325000-5000

Additional information

Center Frequency (F0) (MHz)

32500

Min. Pass Band Frequency (MHz)

30000

Max. Pass Band Frequency (MHz)

35000

Pass Band Insertion Loss (dB)

≤2.0 ≤1.0 ≥15

Stop Band Rejection

≥80dB @ DC ~ 29GHz ≥80dB @ 36 ~ 47GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
