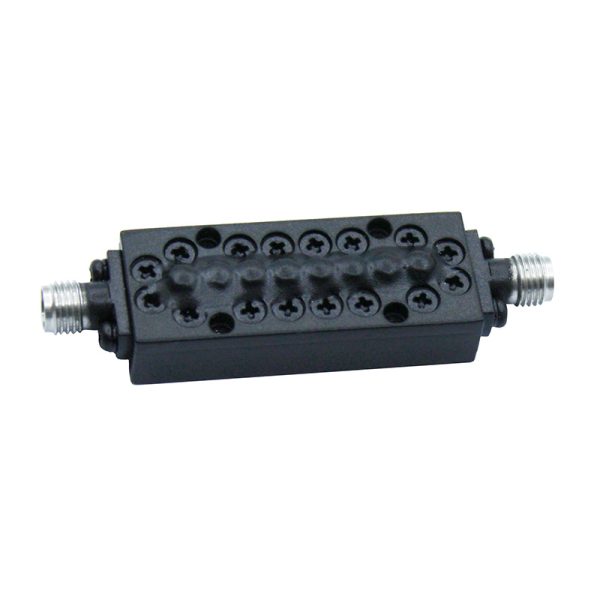

Band pass Filter From 3.4GHz(29.3~32.7GHz) OBP-310000-3400 With SMA-Female Connectors

Band pass Filter From 3.4GHz(29.3~32.7GHz) OBP-310000-3400 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-310000-3400,it’s Center Frequency(F0) is 31GHz , it’s Pass Band Bandwidth is 3.4GHz(29.3~32.7GHz), it’sPass Band Insertion Loss is ≤0.7dB. Its Stop Bandfrequency is ≥70dB @DC ~ 26GHz≥55dB @ 36 ~ 48GHz.

Availability: Available on backorder SKU: OBP-310000-3400 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.

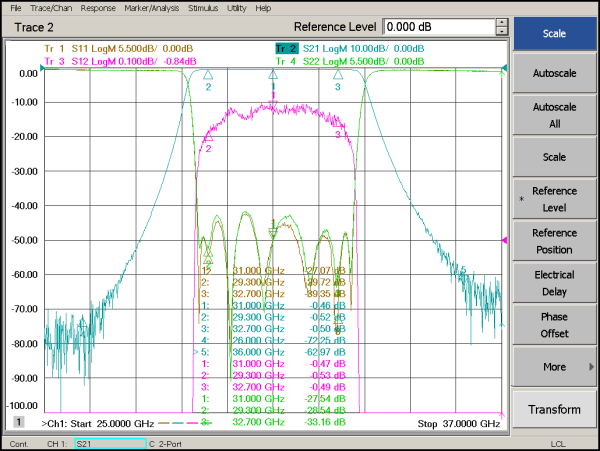

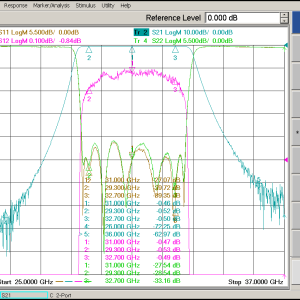

The product name of this Ocean band-pass filter (OBP) is OBP-310000-3400,it’s Center Frequency(F0) is 31GHz , it’s Pass Band Bandwidth is 3.4GHz(29.3~32.7GHz), it’sPass Band Insertion Loss is ≤0.7dB. Its Stop Bandfrequency is ≥70dB @DC ~ 26GHz≥55dB @ 36 ~ 48GHz.

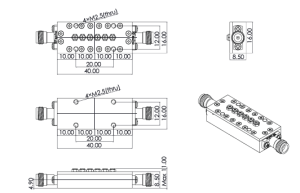

Outline

Band pass Filter From 3.4GHz(29.3~32.7GHz) OBP-310000-3400 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-310000-3400

Additional information

Center Frequency (F0) (MHz)

31000

Min. Pass Band Frequency (MHz)

29300

Max. Pass Band Frequency (MHz)

32700

Pass Band Insertion Loss (dB)

≤0.7 ≤0.15 ≥18

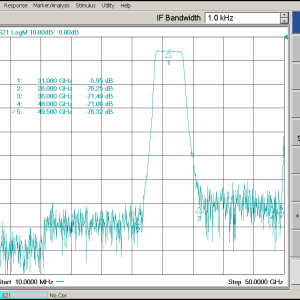

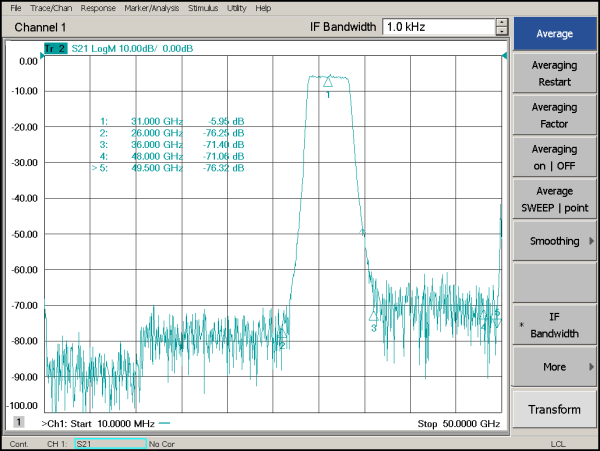

Stop Band Rejection

≥70dB @ DC ~ 26GHz ≥55dB @ 36 ~ 48GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
