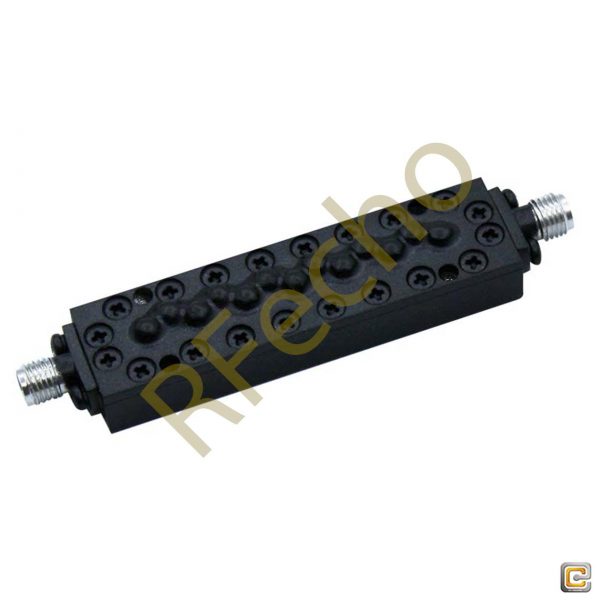

Cavity Band Pass Filter – OBP-10000-1000, its Center Frequency(F0) is 10GHz, Pass Band Bandwidth is 9.5~10.5GHz, Pass Band Insertion Loss is ≤0.6dB, PassBand VSWR is ≤1.3:1, Stop Band frequency is DC~8.0GHz、12~19GHz and The Stop Band Rejection is ≥25dB.

SKU: OBP-10000-1000 Categories: ,

Description

RFecho Cavity Band Pass Filter OBP-10000-1000 is a filter that allows waves of the specific frequency band to pass through while rejecting other frequency bands. More Cavity Filters…



Cavity Band Pass Filter – OBP-10000-1000 Electrical Specifications

Center Frequency (F0) 10GHz
Pass Band Frequency 9.5~10.5GHz
Pass Band Insertion Loss ≤0.6dB
Pass Band VSWR ≤1.3:1
Stop Band Rejection ≥25dB @ DC~8.0GHz ≥25dB @ 12~19GHz
Impedance 50 ohms
Power Handling ≤5W
Connectors SMA-Female
Surface Finish Black Paint
Temperature Range 30°C~70°C
Net Weight 0.055 KG



Product Dimensions

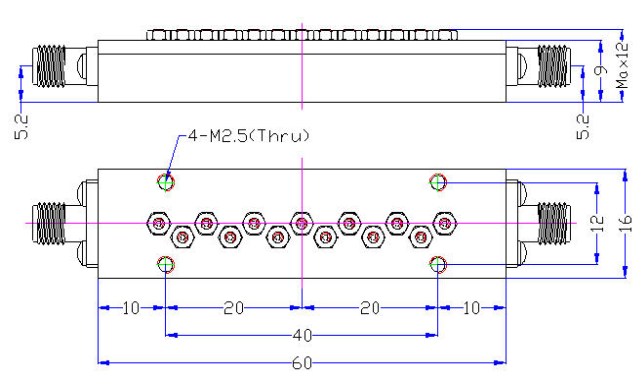

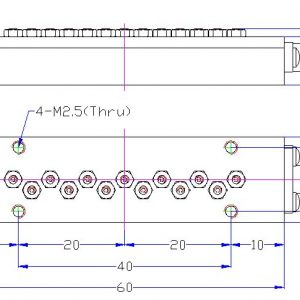

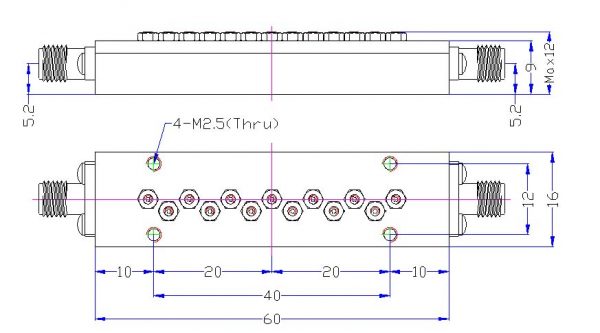

Cavity Band Pass Filter - OBP-10000-1000 Product Dimensions

Test Data

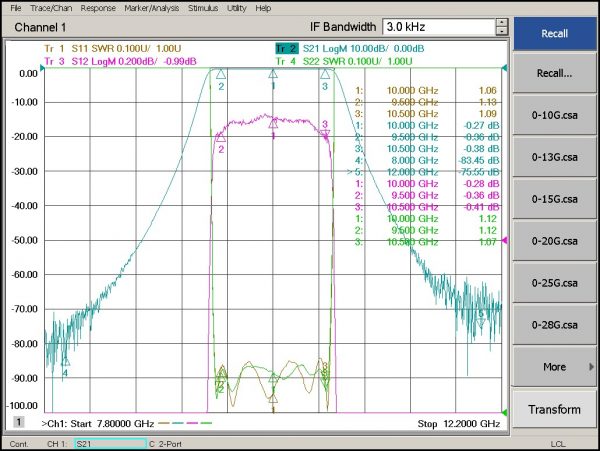

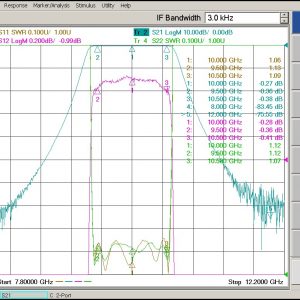

Cavity Band Pass Filter - OBP-10000-1000 test data
