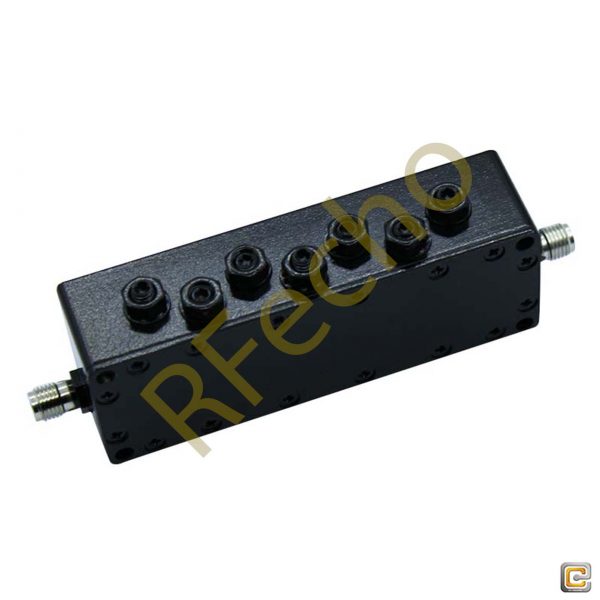

Cavity Band Pass OBP-1850-20
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：OBP) is a filter that allowswaves of specific frequency band to pass through while rejecting other frequency bands.

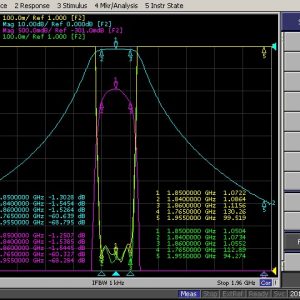

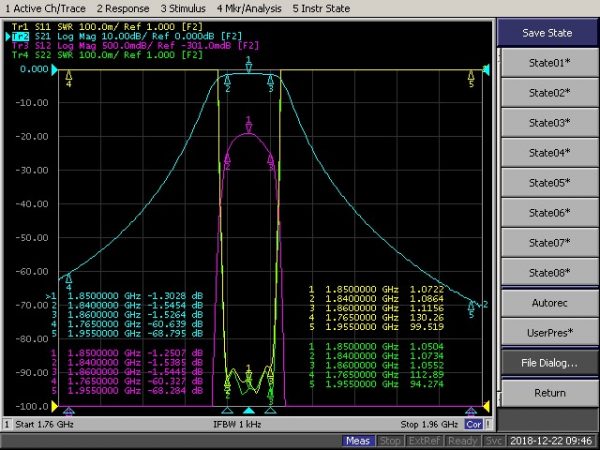

The product name of this Ocean band-pass filter (OBP) is OBP-1850-20 , its Center Frequency(F0) is1850MHz ,its Pass Band Bandwidth is 1840～1860MHz ,its Pass Band Insertion Loss is ≤2.0dB ,and its Pass Band VSWR is ≤1.3:1. The Stop Band Rejection is ≥50dB @ DC～1765MHz ,≥50dB @ 1955～5000MHz.
- Additional information
- Reviews (0)
|Center Frequency (F0) (MHz)|
|Min. Pass Band Frequency (MHz)|
|Max. Pass Band Frequency (MHz)|
|Pass Band Insertion Loss (dB)|
|Stop Band Rejection|
|Power Handling (W)|
